Description

Price

1

Asm., Jackshaft (See Drive Train Pg. B10, Ref. 16)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

SCREW(10)

7515551

$6.39

4

NUT(10)

7542404

$1.59

5

BEARING,BALL

3514309

$15.87

5

BEARING,BALL

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

SPKT,19T,3/4W,15 SPL,HV,PM

3221095

$44.99

8

WASHER, SLOTTED(10)

7571620

$7.19

9

NUT

7542811

Unavailable

10

PIN COTTER(10)

7661203

$1.49

11

PIN,CHAIN TIGHTENER

7662210

Unavailable

11

BEARING

3553002

$11.99

11

WHEEL,C/C IDLER

5630123

Unavailable

11

WASHER THRUST(10)

7558702

$1.59

11

TIGHTENER,CHAINCASE

1332213

$159.99

11

BLOCK,TIGHTENER,W/ANGLE

5630958

$159.99

12

GASKET-CHAINCASE

5410277

$24.99

13

COVER-CHAINCASE,REV,MACH,6.625

5132159

Unavailable

14

WASHER WROUGHT(10)

7558403

$4.79

15

SCREW(10)

7512492

$1.49

16

SCREW(10)

7512242

$2.39

17

Seal, Oil

3610029

$8.89

18

SHAFT,SHIFT,BLK

1341221-067

$35.99

19

PIN, SHIFT FORK(10)

7661826

$5.65

20

RING, RETAINER(10)

7710415

$3.99

21

KIT,SHIFT FORK/SHAFT (Incl. 18,19)

2200363

Unavailable

21

Fork, Shift

5130805

Unavailable

22

O RING

5410589

$4.99

23

WASHER,THRUST(10)

7555877

$3.99

23

WASHER,THRUST(10)

7555877

$3.99

24

GEAR,SPUR PINION

1341075

$149.99

24

Bearing, Needle

3554508

$16.99

25

CHAIN,HYVO 66 P,3/4W

3221113

$124.99

26

SPROCKET,PINION

1341241

Unavailable

26

Bearing, Needle

3554508

$16.99

27

SHAFT,PINION,W/WRENCH FLATS

5131770

Unavailable

28

SCREW(10)

7512019

$3.99

28

SCREW(10)

7512019

$3.99

29

BRACKET-CHAIN RETENTION,7.05

5243162

Unavailable

30

BOLT(10)

7515477

$34.99

31

CHAINCASE-MACH,6.625 CD

5132158

Unavailable

32

PLUG(10)

7052115

$5.65

33

WASHER, REVERSE(10)

7555871

$5.59

34

SPKT.ASM,40T,REV,3/4W,PM

1341227

Unavailable

35

Coupler, Drive

5130720

Unavailable

36

ASM-REVERSE GEAR Substituted by 1341410

1341410

$559.99

37

SPRING-COMPRESSION

7041887

$44.99

38

RETAINER,DRIVE COUPLER

5130727

Unavailable

39

LOCK WASHER(10)

7552901

$1.49

40

SCREW(10)

7517581

$1.59

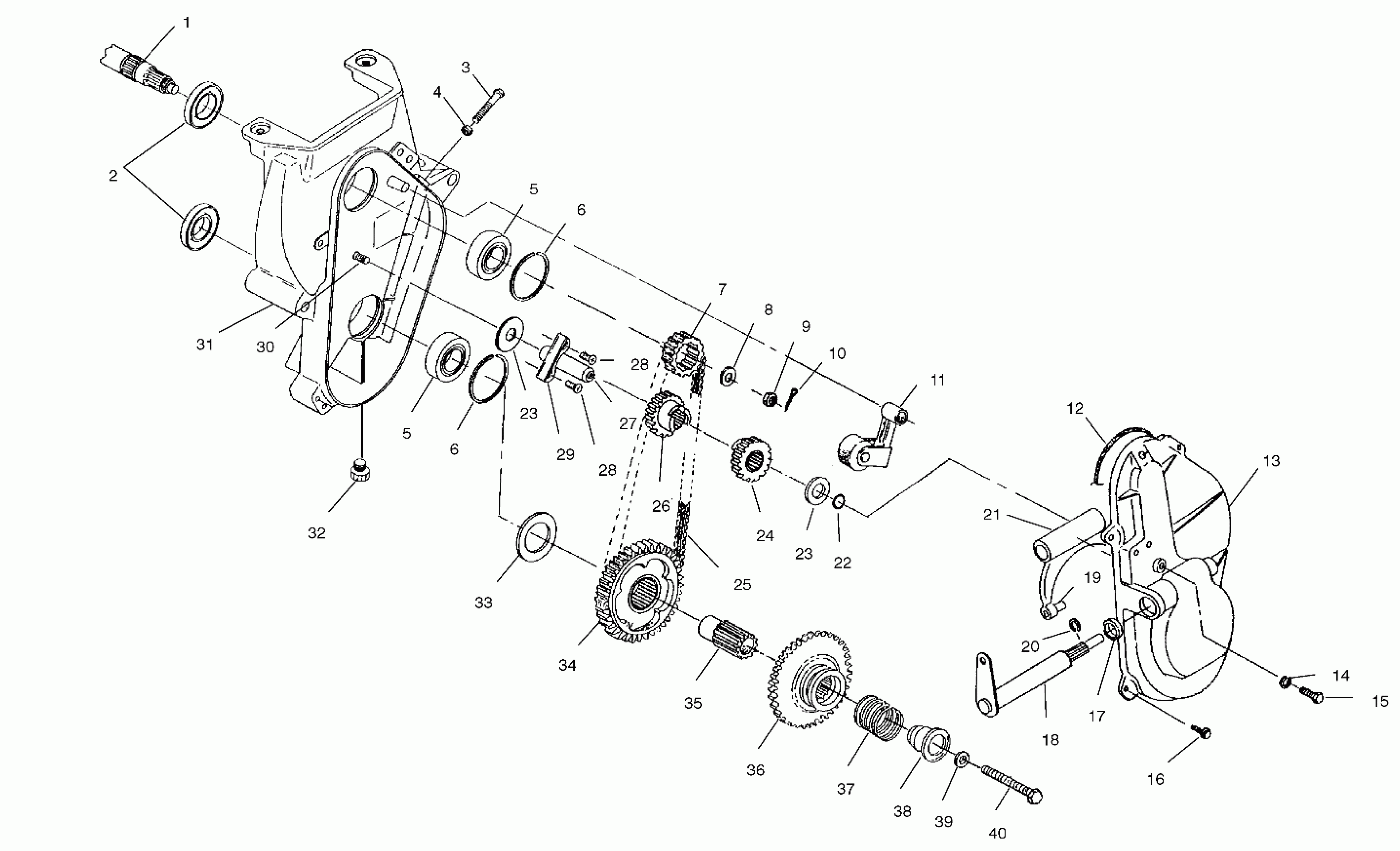

Polaris 500 CLASSIC TOURING - S02ST4BS CHAINCASE - S02ST4BS (4967516751B008) Diagram
