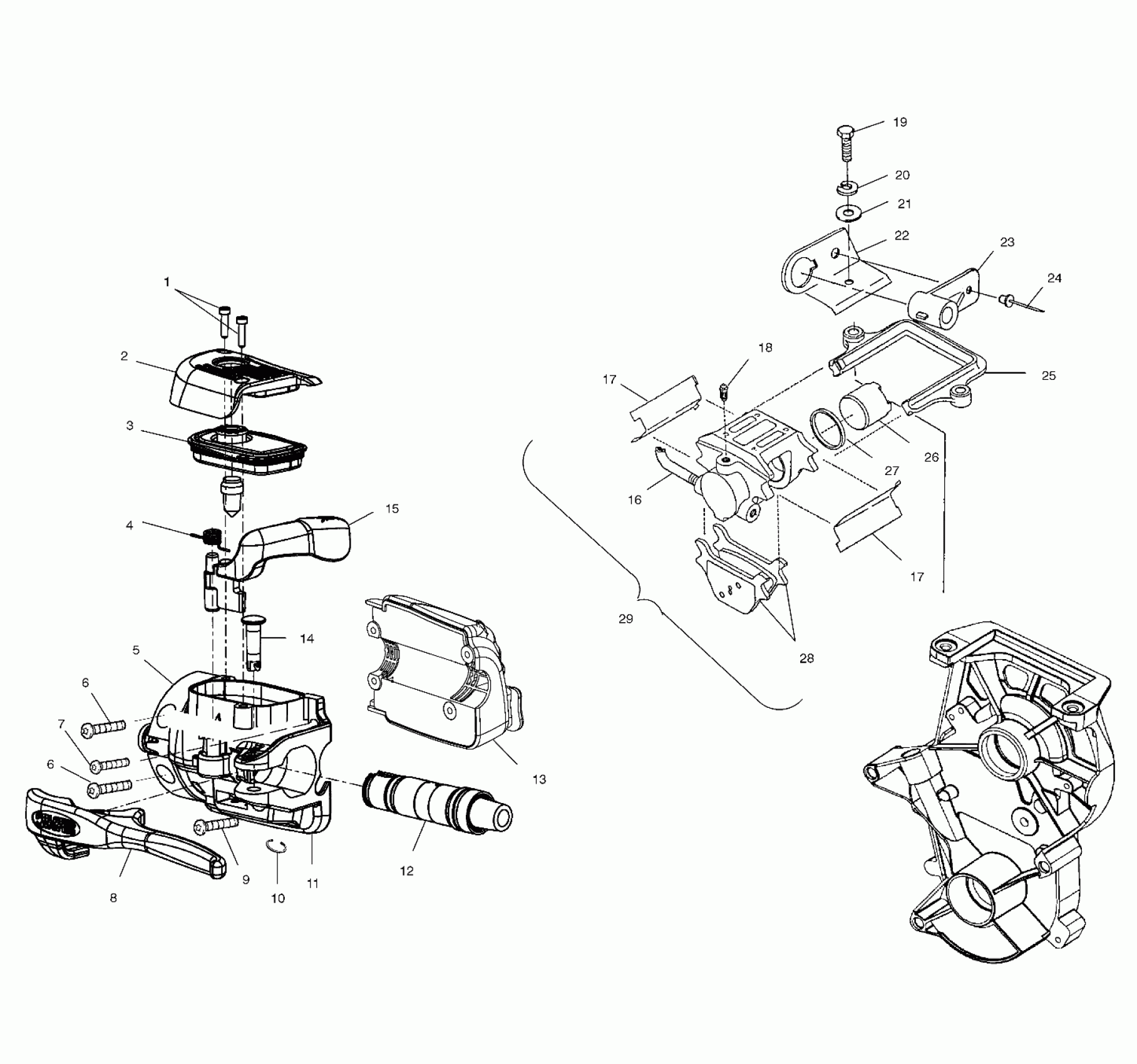

Polaris 500 CLASSIC TOURING - S02ST4BS BRAKE - S02ST4BS (4967516751A014) Diagram

#

Description
Price

1

KIT,COVER SCREW,(HAYES)

2201254

$19.99

2

KIT,COVER ASM,(HAYES) (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

KIT,PARKLEVER SPRING

2201250

$24.27

5

ASM-MASTER CYL,HAYES,5/8 (Incl. 2,4,8,11,12,14)

2010209

$304.98

6

SCREW(10)

7517441

$2.39

6

SCREW(10)

7517441

$2.39

7

SCREW(10)

7512078

$1.49

8

KIT-LEVER,3 NOTCH/PIN/RING

2201943

$52.60

9

SCREW(10)

7517566

$3.99

10

KIT-SNAP RING

2201945

$8.79

11

SWITCH,BRAKE LIGHT

4010157

Unavailable

11

KIT-BODY,PIVOT PIN,SNAP RING

2201948

$304.98

12

KIT-5/8" CARTRIDGE SUB ASM

2201944

Unavailable

13

CONTROL ASM,LH,(BASIC)

2010167

$93.08

14

KIT-PIVOT PIN,ALUM W/SNAP RING

2201946

$24.27

15

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

16

LINE,BRAKE

1930755

Unavailable

17

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

17

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

18

KIT, INLET

1930735

$9.11

19

BOLT(10)

7515521

$3.99

20

WASHER(10)

7552603

$1.49

21

WASHER(10)

7555806

$1.49

22

BRKT,ROPE GUIDE,BLK.

5240171-067

Unavailable

23

GUIDE, RECOIL

5431385

$10.51

24

RIVET(50)

7621433

$1.49

25

KIT,CALIPER BRKT.

1930733

Unavailable

26

KIT, PISTON SEAL (Incl. 27)

1930734

Unavailable

27

SEAL

2200466

$32.37

28

KIT,BRAKE,PAD TYPE 81(SMALL) (Incl. 17)

2201429

Unavailable

29

BRAKE CALIPER,TYPE 81,NOSW (Incl. 26,27,28)

1910346

$247.60
