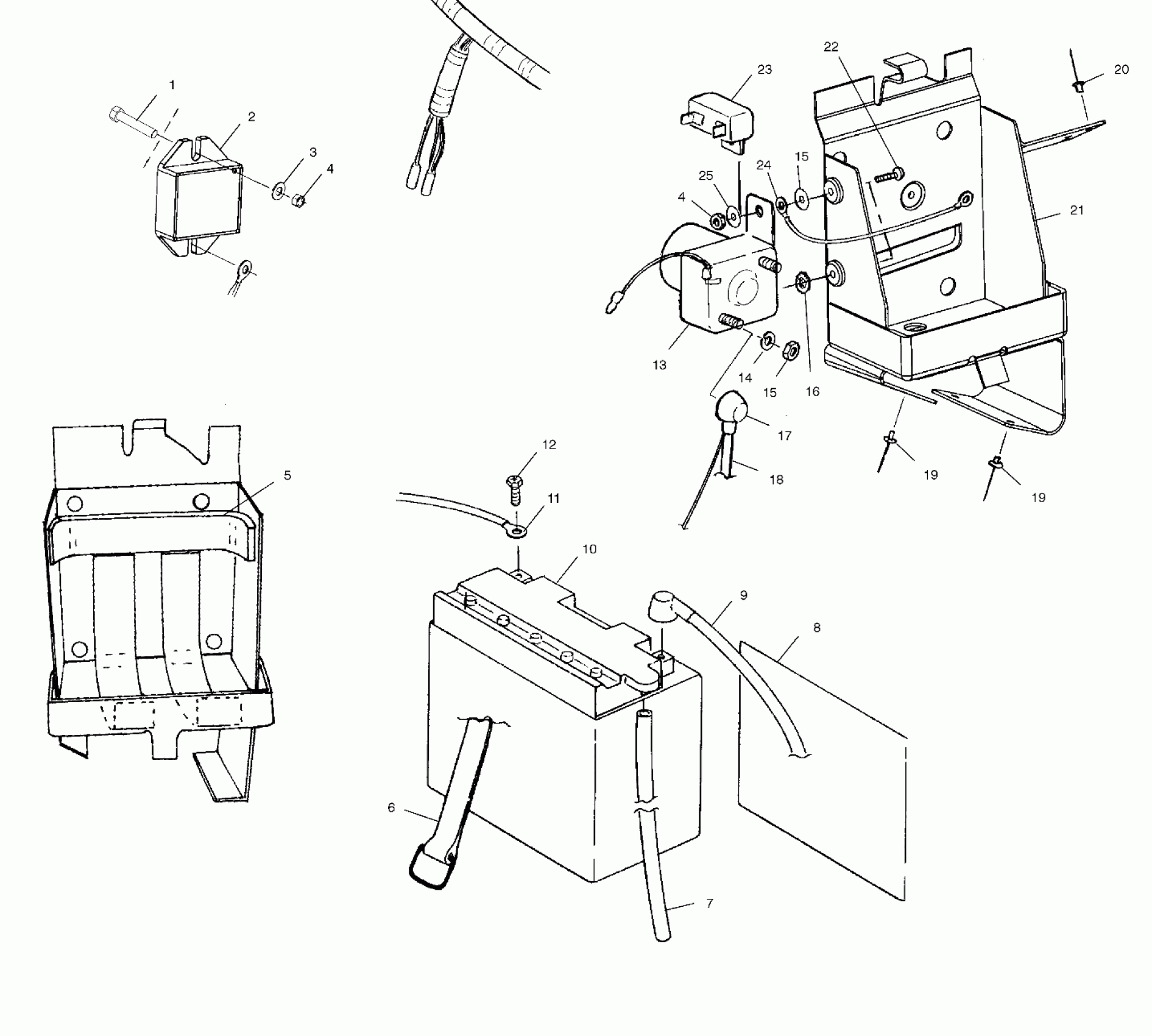

Polaris 500 CLASSIC TOURING - S02ST4BS BATTERY BOX - S02ST4BS (4967516751C001) Diagram

#

Description
Price

1

SCREW, HX/SEMS

7517263

Unavailable

2

REGULATOR,AC/DC 14.3V

4010355

$116.17

3

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

4

NUT(10)

7541925

$1.49

4

NUT(10)

7541925

$1.49

5

PAD-BATTERY

5810290

$7.27

6

STRAP ASM,BATT.HOLD.

2450020

$29.03

7

TUBE,BATT.VENT,400 MM

5433681

Unavailable

8

TAPE,FOIL 6X7.5"

8360018-7.5

Unavailable

9

CABLE ASM,SOLENOID

2460393

$36.41

10

Battery

4140006

$99.99

11

CABLE,11",BATT.,BLK.

4010114

Unavailable

12

BOLT,BATT,KIT(SHORT)

2200361

$3.99

13

Switch, Magnetic (See Starting Motor Pg. D1, Ref. 18)

-------

Unavailable

14

Washer, Spring (See Starting Motor Pg. D1, Ref. 17)

-------

Unavailable

15

Nut (See Starting Motor Pg. D1, Ref. 16)

-------

Unavailable

15

Nut (See Starting Motor Pg. D1, Ref. 16)

-------

Unavailable

16

WASHER(10)

7571602

$4.79

17

INSULATOR-CABLE

5410346

$6.39

18

CABLE-RED,25"

4010190

Unavailable

19

RIVET, BLIND(50)

7621467

$1.49

19

RIVET, BLIND(50)

7621467

$1.49

20

POP RIVET(50)

7621418

$1.49

21

BATTERY BOX,BLK

1012799-067

$82.39

22

SCREW(10)

7512027

$1.49

23

CIRCUIT BREAKER

2434008

Unavailable

24

WIRE,JUMPER,SOL/BATT,8.5"

4010108

Unavailable

25

WASHER, FLAT(10)

7558201

$5.79
