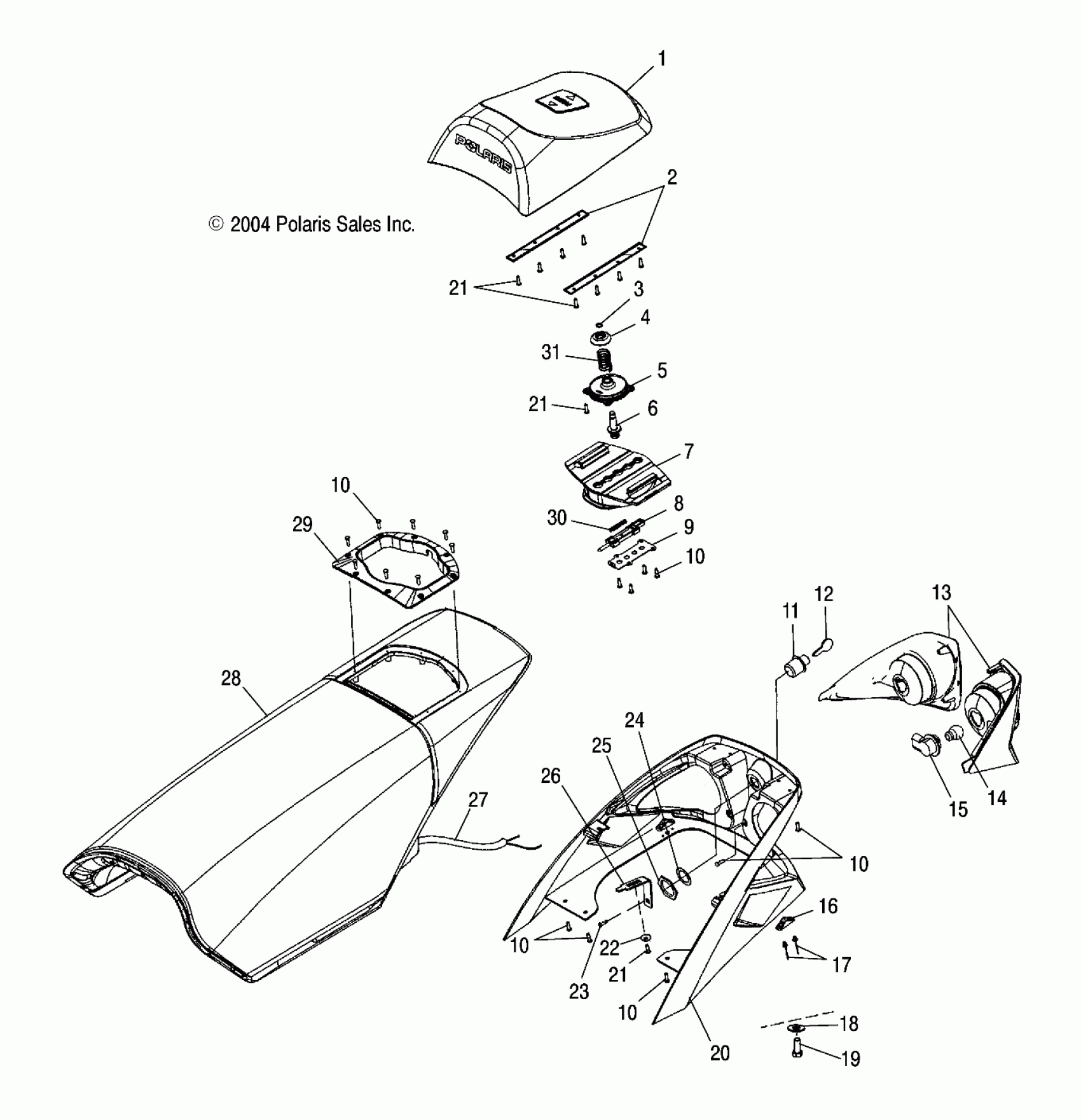

Polaris 500 CLASSIC - S05ND4BS SEAT, ADJUSTABLE - S05ND4BS (4992649264A05) Diagram

#

Description
Price

1

Asm., Seat Bucket, Black

5434819-070

Unavailable

2

Plate, Adjustable Seat

5247123

$75.99

3

Ring, Retaining

7710429

$2.54

4

Cap, Plunger, Seat Bucket

5434822

$4.95

5

Plunger, Seat Bucket

5133975

$11.51

6

Base, Plunger

5434821

$12.39

7

Cover, Trunk

5434816

$36.31

8

Latch, Trunk

5434814

$21.43

9

Lock, Bracket

5247107

Unavailable

10

SCREW

7512026

$1.49

10

SCREW

7512026

$1.49

10

SCREW

7512026

$1.49

10

SCREW

7512026

$1.49

10

SCREW

7512026

$1.49

11

Lock, Adjustable Seat w/Keys, 1333 [Incl. 12]

7081121-03

Unavailable

11

Lock, Adjustable Seat w/Keys, 1334 [Incl. 12]

7081121-04

Unavailable

11

Lock, Adjustable Seat w/Keys, 1335 [Incl. 12]

7081121-05

Unavailable

11

Lock, Adjustable Seat w/Keys, 1336 [Incl. 12]

7081121-06

Unavailable

11

Lock, Adjustable Seat w/Keys, 1337 [Incl. 12]

7081121-07

Unavailable

12

Key, Adjustable Seat [Must order #11 Lock to get Key]

-------

Unavailable

13

Asm., Taillight, LH

2410395

$66.39

13

Asm., Taillight, RH

2410396

$70.39

14

BULB, TAILLIGHT

4010764

$20.22

15

Socket, Bulb

4010767

Unavailable

16

NUT, SEAT

5631194

$4.99

17

RIVET

7621319

$1.49

18

Washer, Spring

7555828

Unavailable

19

SCREW

7517219

$4.79

20

Trunk, Bottom, Black

5434813-070

Unavailable

21

SCREW

7518238

$3.99

21

SCREW

7518238

$3.99

21

SCREW

7518238

$3.99

22

WASHER

7555792

$4.79

23

Screw

7081162

$1.49

24

Washer

7081161

Unavailable

25

Nut

7081160

Unavailable

26

Bracket, Pushlock

5247221

$23.19

27

Harness, Taillight

2461126

$40.79

28

Asm., Seat, Adjustable, Edge, Black/Sonic Blue

2683549

$504.99

28

Asm., Seat Cover, Adjustable Seat

2683550

Unavailable

29

Flange, Trunk

5434812

$15.67

30

Spring, Compression, Lock

7042232

$4.95

31

Spring, Compression, Plunger

7042199

$4.92
