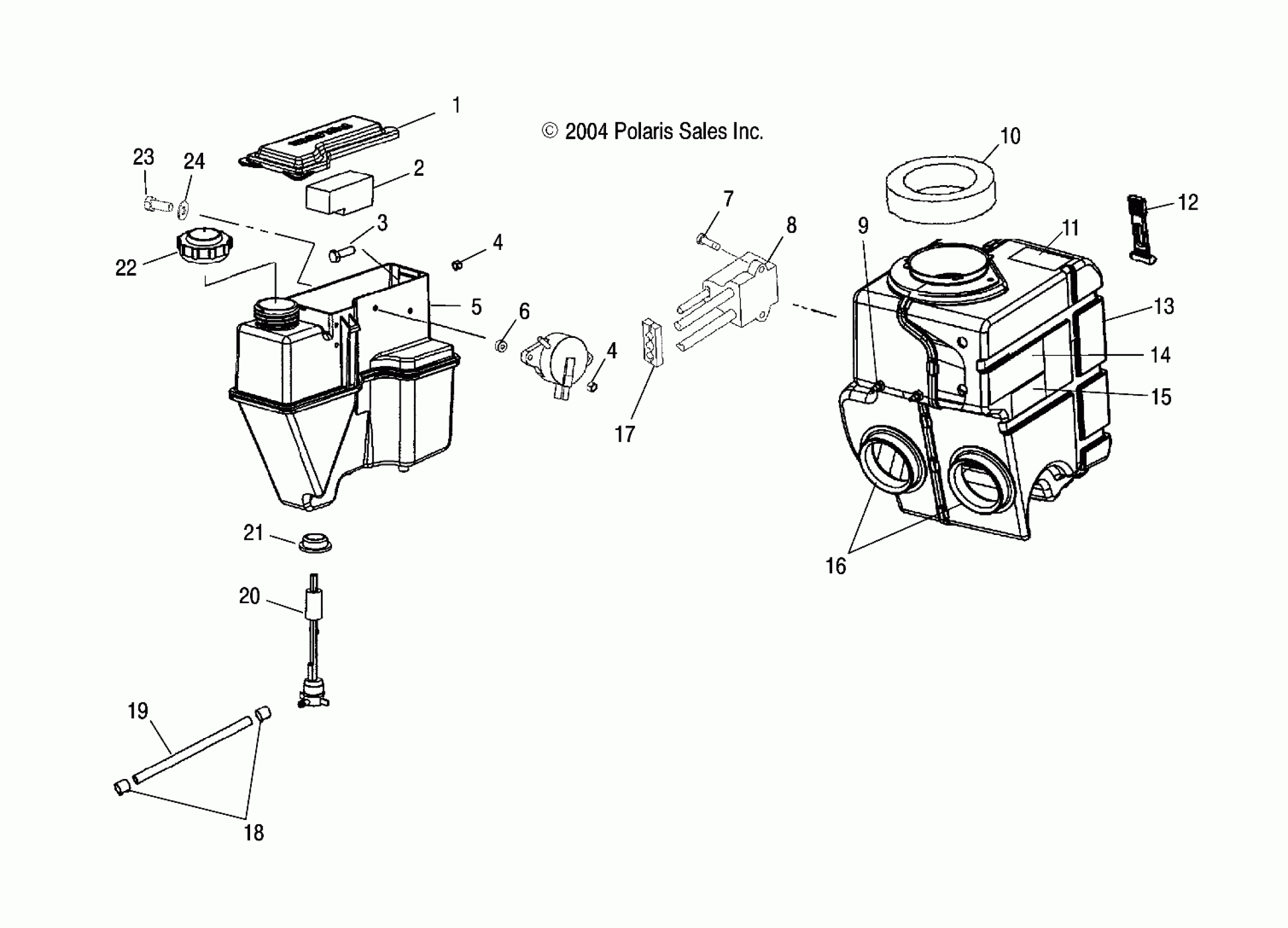

Polaris 500 CLASSIC - S05ND4BS OIL TANK/AIR BOX - S05ND4BS (4992649264C06) Diagram

#

Description
Price

1

Cover, Tool Box

5434089

$27.19

2

Foam

5812209

Unavailable

3

Screw

7512297

$5.59

4

Nut, Nylok

7542122

$1.49

4

Nut, Nylok

7542122

$1.49

5

Asm., Oil Tank w/Sending Unit [Incl. 1,20]

1253461

$123.99

5

Oil Bottle, Tool Box

1261208

$123.02

6

Washer, Nylon

7555932

$2.39

7

Screw

7512095

$4.79

8

COIL, IGNITION [SEE MAGNETO PG. D2, REF. 16]

-------

Unavailable

9

Fitting, Hose

7052127

$3.19

10

Foam, Chimney

5811983

$20.22

11

Decal, Caution

7075351

Unavailable

12

STRAP-AIRBOX TOP

5433150

$24.27

13

Asm., Air Silencer [Incl. 16 & Decals]

1253454

$222.22

14

Decal, Adjustable Driven Clutch

7073820

Unavailable

15

Decal, Greasing

7073426

$7.27

16

Boot, Carburetor

5411990

Unavailable

17

Clip, Ignition Cable

7080471

$3.59

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

Line, Fuel

8450003-1525

Unavailable

20

Sender, Oil, w/Front Terminals

4010660

$60.70

21

Grommet, Oil Sender

7052305

$4.84

22

Cap, Oil, Vented

1240094

$36.41

23

Bolt

7512163

$3.99

24

Washer, Flat

7555859

$1.49
