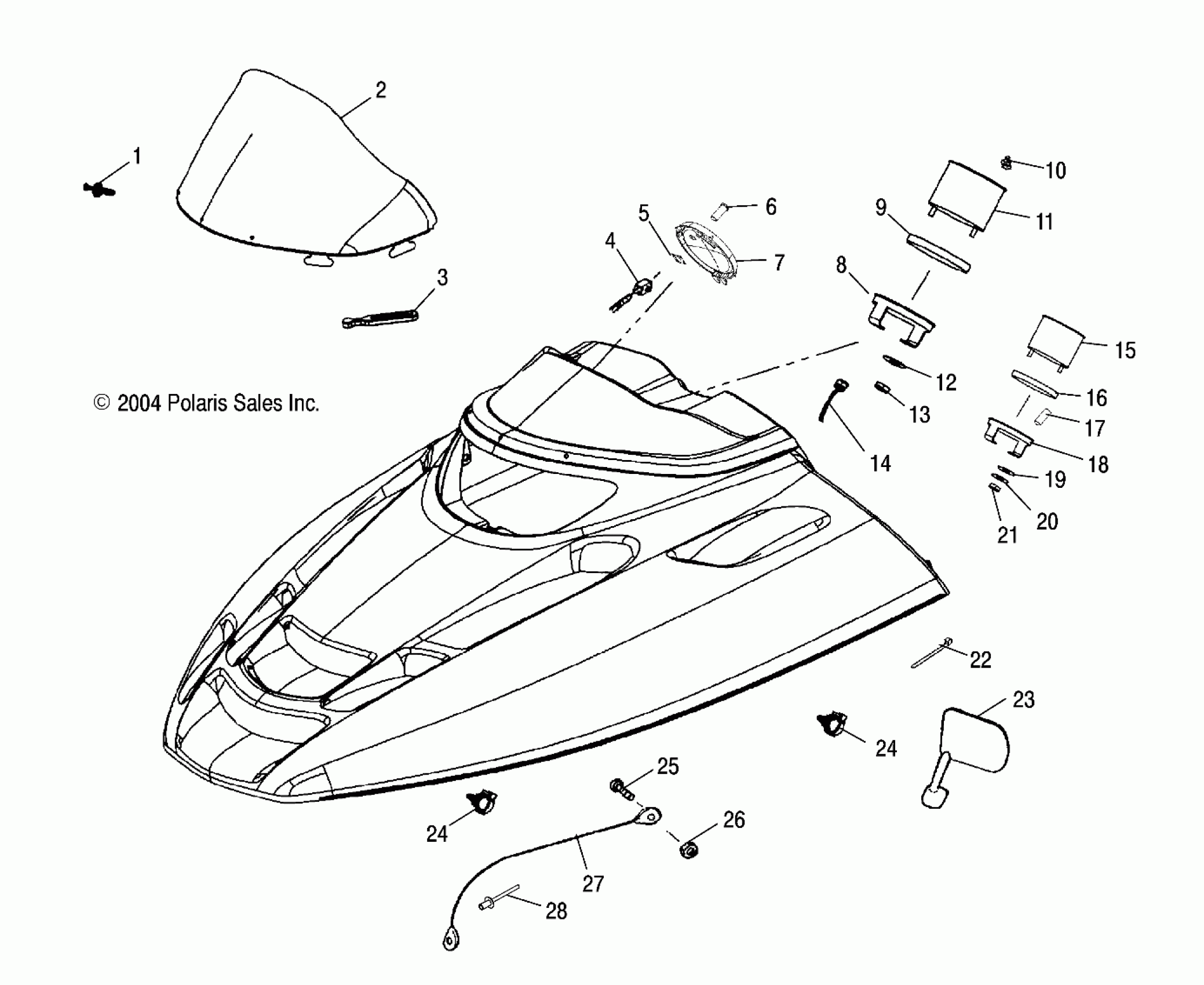

Polaris 500 CLASSIC - S05ND4BS HOOD - S05ND4BSA (4992649264A10) Diagram

#

Description
Price

1

RIVET

7621509

$1.49

2

Windshield, 15-Inch, FLared, Smoke/Gray

5435494

$123.99

3

RETAINER, WINDSHIELD

5410970

$1.49

4

Harness, Jumper, Temperature Light

2460876

$9.11

5

Retainer

7670133

Unavailable

6

Indicator, High Temp

4010535

Unavailable

7

Plug, Dash

5434081

Unavailable

8

Bracket, Speedometer/Tachometer

3280210

$28.32

9

Cushion, Rubber

3280209

$3.99

10

Knob, Trip Odometer

3280186

$9.70

11

Bulb, Replacement

4030015

$4.03

11

Asm., Speedometer

3280411

$339.98

12

Washer, Flat

3280157

$2.39

13

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

14

Cable, Speedometer

3280385

$93.08

15

Asm., Fuel Gauge

3280410

$106.35

15

Fuse

4060139

Unavailable

16

Cushion, Rubber

3280230

$3.41

17

Spacer

3280228

$2.81

18

Bracket, Fuel Gauge

3280229

Unavailable

19

Washer

3280231

$0.24

20

Washer, Split Lock

3280233

Unavailable

21

Nut

3280232

$1.49

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

23

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

23

Washer, Flat

7556088

$4.79

23

Asm., Mirror, Black, LH

2632246-070

$89.99

23

Asm., Mirror, Black, RH

2632247-070

$89.99

24

CLIP, PLASTIC

4010589

$2.39

24

CLIP, PLASTIC

4010589

$2.39

25

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

26

Nut, Nylok

7541925

$1.49

27

Cable, Hood Retainer

7080521

$24.27

28

RIVET-3/16-.090-.290

7661637

$1.49
