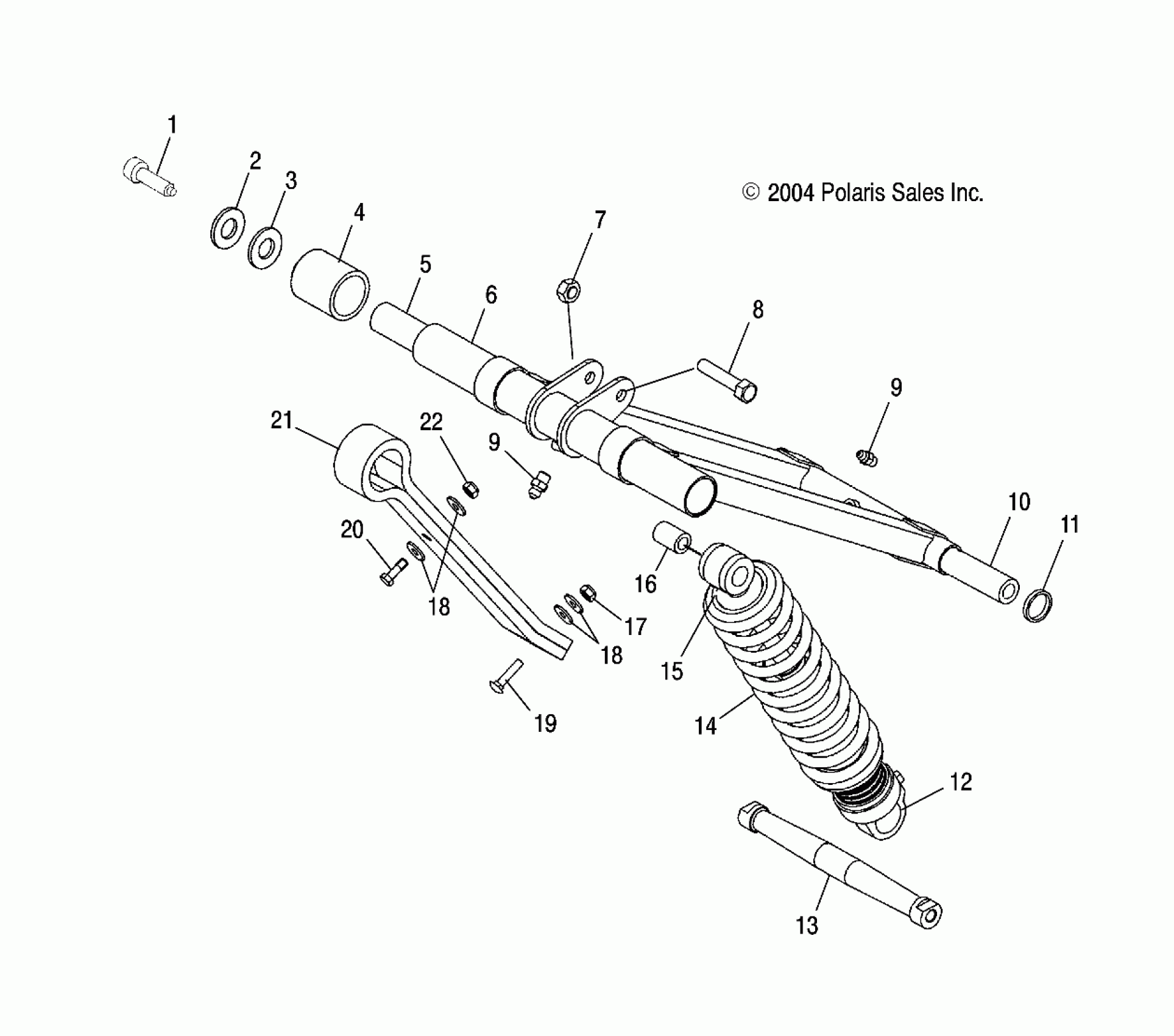

Polaris 500 CLASSIC - S05ND4BS FRONT TORQUE ARM (M-10) - S05ND4BS (4992649264C01) Diagram

#

Description
Price

1

Screw

7517815

Unavailable

2

WASHER-LOCK, 7/16-B

7552614

$1.59

3

Washer, Flat

7555984

$2.39

4

Screw, Socket Set

7512257

$3.99

4

Spacer, Upper

5132595

Unavailable

5

Shaft, Upper

5132675

Unavailable

6

Arm, Torque, M-10, Black

1541527-067

Unavailable

7

Nut, Nylok

7542439

$1.49

8

Screw

7515415

$1.49

9

FITTING-LUBRICATION 1/4-28

7080424

$4.79

9

FITTING-LUBRICATION 1/4-28

7080424

$4.79

10

Shaft, Lower

5132579

$21.59

11

Spacer, Lower

5132783

Unavailable

12

Shock, Front Track, M-10

7042224

Unavailable

13

SHAFT, TAPERED [SEE REAR SUSPENSION, M-10 PG. B14, REF. 25]

-------

Unavailable

14

Spring, Compression, Black

7041671-067

$179.99

15

RETAINER, SPRING, SLOTTED

5020618

$24.99

16

SLEEVE

5333905

$15.99

17

NUT-5/16-18 NYLOK-Y

7542324

$1.49

18

Washer, Flat

7556175

$5.99

18

Washer, Flat

7556175

$5.99

19

BOLT

7515316

$2.39

20

Bolt

7512392

$4.79

21

Strap, Limiter, M-10

5411940

Unavailable

22

NUT, NYLOK

7542344

$3.99
