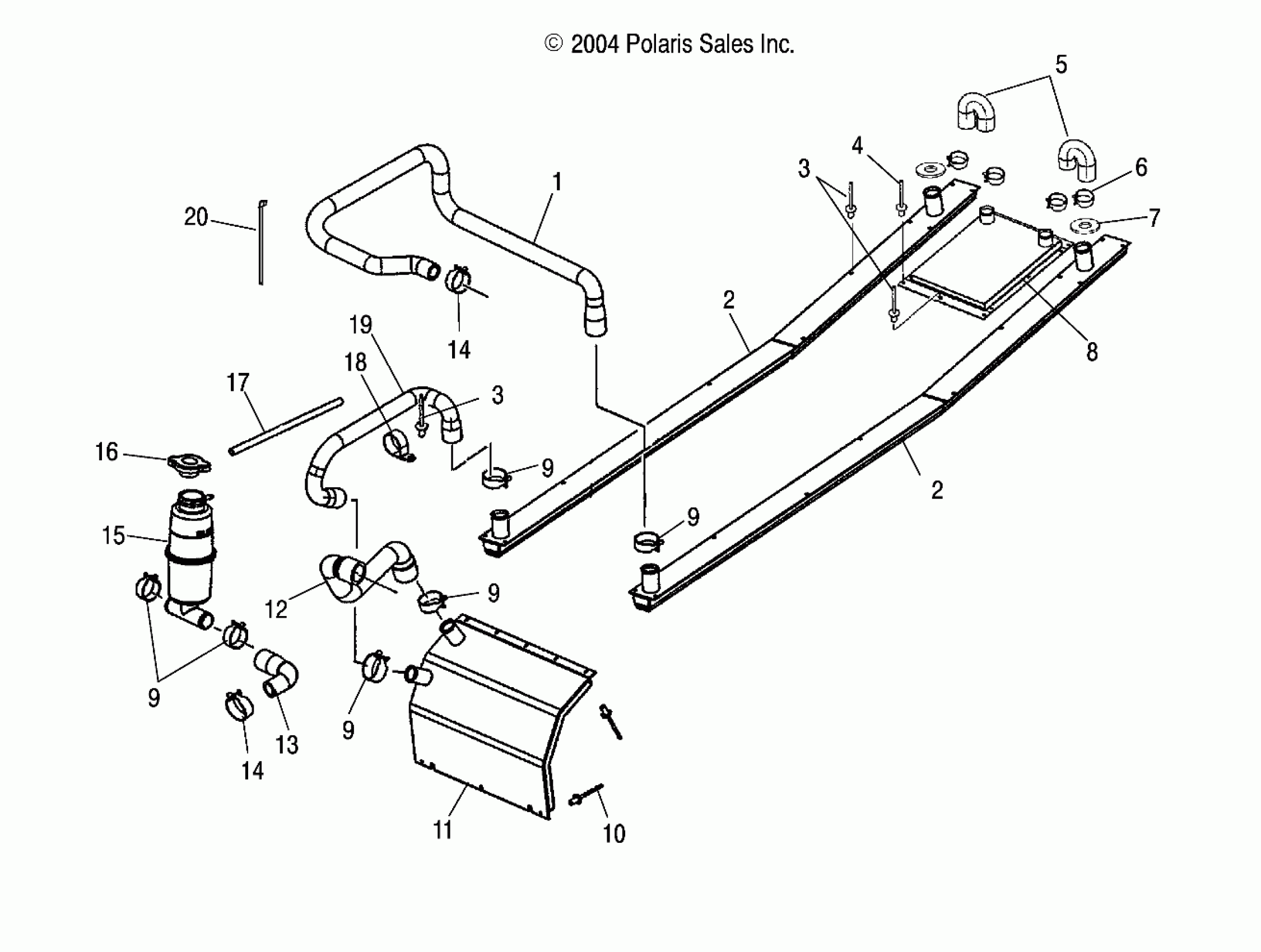

Polaris 500 CLASSIC - S05ND4BS COOLING SYSTEM - S05ND4BSA (4992649264B07) Diagram

#

Description
Price

1

Hose, Strip Cooler/Engine Out

5412258

Unavailable

2

Strip, Wear

1240154

$299.99

2

Strip, Wear

1240154

$299.99

3

Rivet

7621432

$1.49

3

Rivet

7621432

$1.49

4

Rivet

7621433

$1.49

5

Hose, Cooling, 1 Inch, 180 Degrees

5412356

Unavailable

6

Clamp, Springband

7080843

$3.99

7

Seal

5812023

$6.63

8

Cooler

1240153

$634.99

9

CLAMP, SPRINGBAND

7080844

$10.39

9

CLAMP, SPRINGBAND

7080844

$10.39

9

CLAMP, SPRINGBAND

7080844

$10.39

9

CLAMP, SPRINGBAND

7080844

$10.39

9

CLAMP, SPRINGBAND

7080844

$10.39

10

RIVET-3/16-.090-.290

7661637

$1.49

11

Cooler, Center

2520255

Unavailable

12

Hose, Close Off/Bottle

5412172

$23.02

13

Hose, Bottle/Engine

5411991

$17.43

14

CLAMP, SPRINGBAND

7080842

$7.19

14

CLAMP, SPRINGBAND

7080842

$7.19

15

Bottle, Coolant

2520312

$48.56

16

DECAL, WATER BOTTLE CAP

7170063

$4.03

16

Cap, Pressure

2511270

$24.27

17

Line, Fuel

8450003-1525

$84.99

18

Clamp, Hose

7080653

$4.79

19

Hose, Center Cooler/Wear Strip

5412162

$44.51

20

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39
