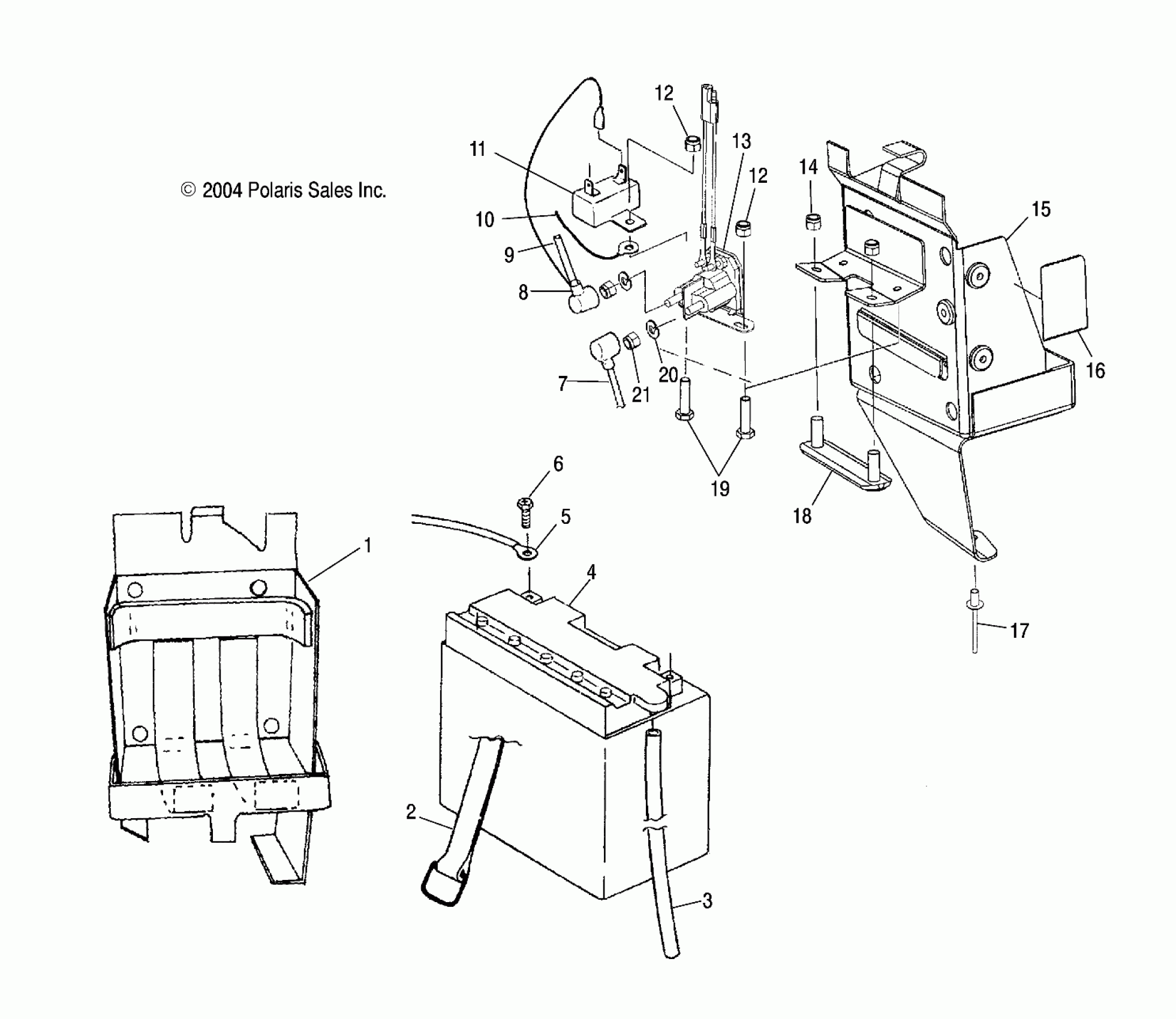

Polaris 500 CLASSIC - S05ND4BS BATTERY BOX - S05ND4BS (4992649264C07) Diagram

#

Description
Price

1

PAD-BATTERY

5810290

$7.27

2

Asm., Strap, Battery Hold-Down

2450020

$29.03

3

Tube, Vent

5432077

Unavailable

4

Battery

4140006

$99.99

5

Cable, Battery, Black

4010114

Unavailable

6

Kit, Battery Bolt, Short

2200361

$3.99

7

Cable, Solenoid/Starter, Black

4010107

Unavailable

8

INSULATOR-CABLE

5410346

$6.39

9

Asm., Cable, Solenoid

2460393

$36.41

10

Wire, Jumper, Solenoid/Battery

4010108

Unavailable

11

Breaker, Circuit

2434008

Unavailable

12

Nut, Nylok

7541925

$1.49

12

Nut, Nylok

7541925

$1.49

13

SWITCH, MAGNETIC [SEE STARTING MOTOR PG. D4, REF. 18]

-------

Unavailable

14

Nut, Nylok

7542122

$1.49

15

Box, Battery, Black

1013679-067

Unavailable

16

Foil, Tape

5810129

$2.79

17

RIVET

7621467

$1.49

18

Plate, Stud

1013385

Unavailable

19

Screw

7511930

$2.39

20

WASHER, SPRING LOCK [SEE STARTING MOTOR PG. D4, REF. 2]

-------

Unavailable

21

NUT, HEX [SEE STARTING MOTOR PG. D4, REF. 1]

-------

Unavailable
