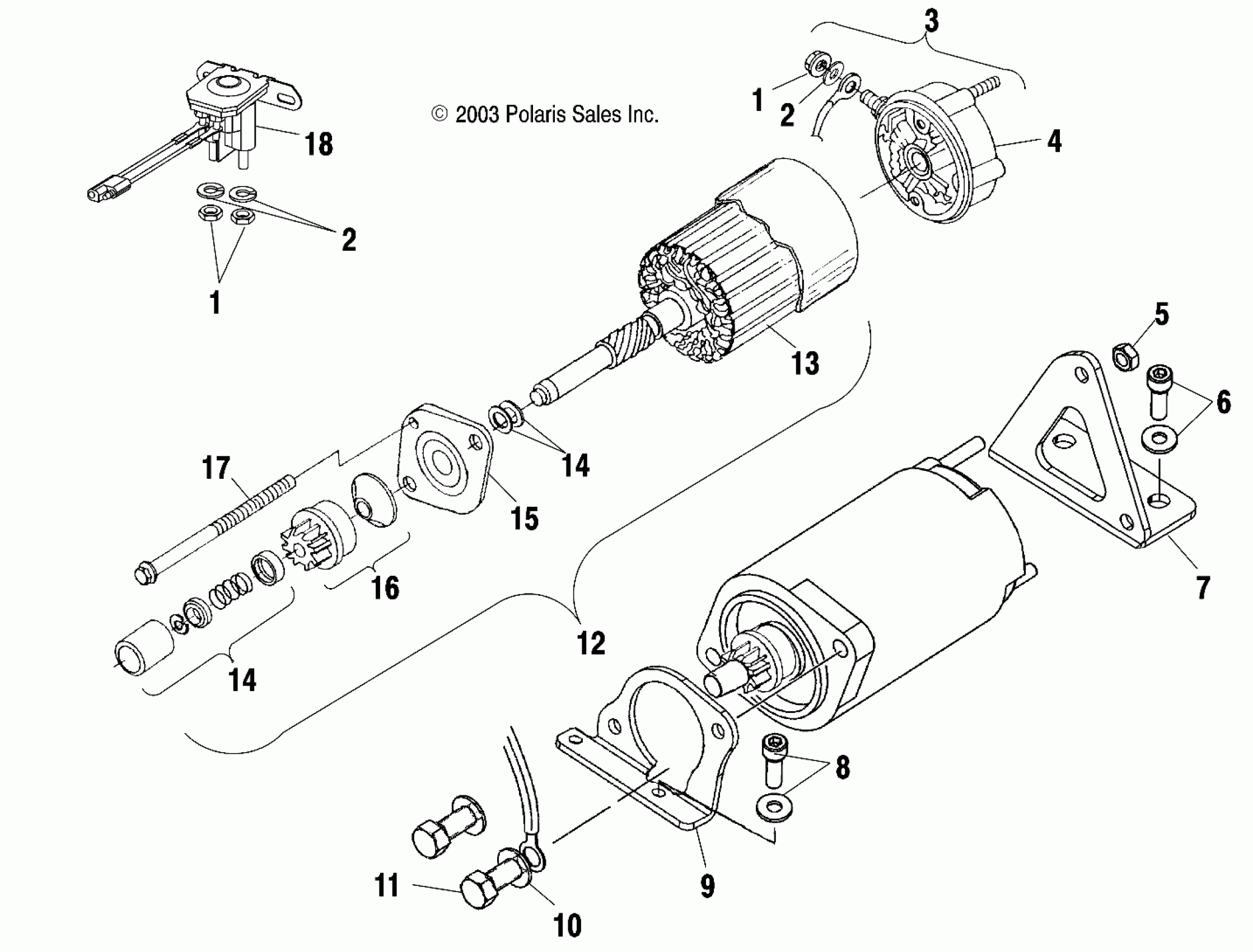

Polaris 500 CLASSIC - S04ND4BS STARTING MOTOR - S04ND4BS/BSA (4988678867D07) Diagram

#

Description
Price

1

NUT

7542105

$3.99

1

NUT

7542105

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

2

WASHER, SPRING LOCK

7552801

$1.59

3

Kit, Commutator Cap [Incl. 4]

2200758

$82.39

4

Kit, Brush & Spring

2200759

$59.99

4

ASM., BRUSH & SCREW

-------

Unavailable

4

ASM., BRUSH

-------

Unavailable

4

BUSHING, INSULATION

-------

Unavailable

4

WASHER, INSULATION

-------

Unavailable

4

Nut

-------

Unavailable

5

Nut

7542153

$1.59

6

SCREW

7516815

$6.39

7

Bracket, Starter, Rear

5240956

$16.99

8

Screw

7516730

$6.39

9

Bracket, Starter, Front

5241271

$32.37

10

Washer, Spring Lock

7552603

$1.49

11

Screw

7512492

$1.49

12

Motor, Starter, Domestic

4170006

Unavailable

13

Kit, Armature

2200756

$169.99

14

Kit, Drive Hardware

2200755

Unavailable

14

WASHER, CURVED SPRING

-------

Unavailable

14

Washer, Thrust

-------

Unavailable

14

SPACER

-------

Unavailable

14

SPRING, ANTIDRIFT

-------

Unavailable

14

PINION, STOP

-------

Unavailable

14

RING, LOCK

-------

Unavailable

14

COVER, DUST

-------

Unavailable

14

Kit, Drive Hardware

2200755

Unavailable

14

WASHER, CURVED SPRING

-------

Unavailable

14

Washer, Thrust

-------

Unavailable

14

SPACER

-------

Unavailable

14

SPRING, ANTIDRIFT

-------

Unavailable

14

PINION, STOP

-------

Unavailable

14

RING, LOCK

-------

Unavailable

14

COVER, DUST

-------

Unavailable

15

Kit, Drive Cap

2200757

$59.99

16

Kit, Drive

2200754

Unavailable

16

PLATE, DRIVE

-------

Unavailable

16

PINION

-------

Unavailable

17

Kit, Screw

2200753

$29.99

17

BOLT, THRU

-------

Unavailable

18

Switch, Magnetic [Incl. 1,2]

4010930

$60.70
