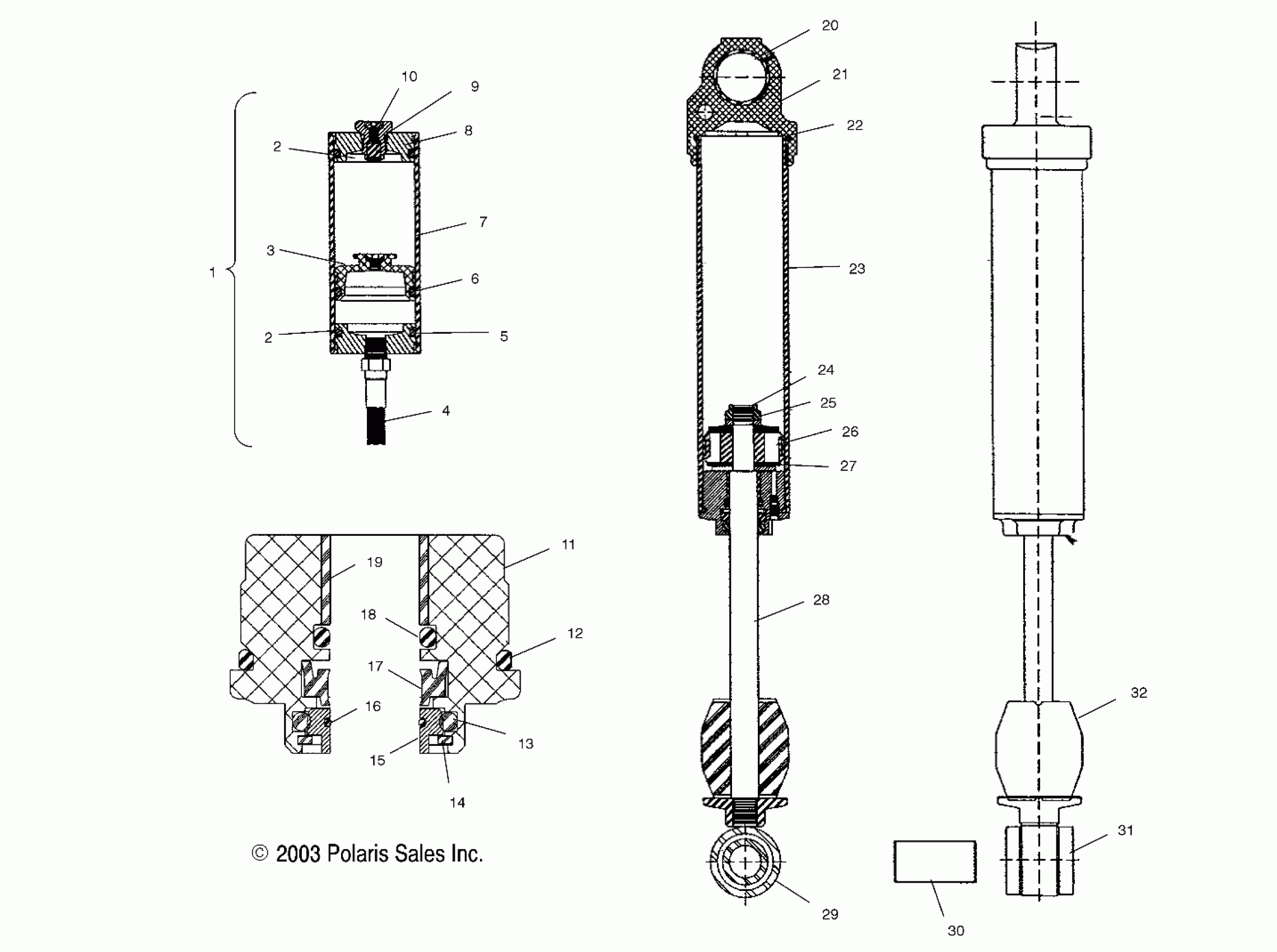

Polaris 500 CLASSIC - S04ND4BS SHOCK (REAR TRACK)(M-10) - S04ND4BS/BSA (4988678867C07) Diagram

#

Description
Price

-

Shock, Rear Track, M-10 [Incl. All]

7042216

Unavailable

1

Asm., Reservoir [Incl. 2-10]

1500449

Unavailable

2

Seal, O-Ring

1500450

Unavailable

2

Seal, O-Ring

1500450

Unavailable

3

Piston, Floating

1500187

$26.98

4

Hose

1500445

Unavailable

5

Cap, Reservoir

1500163

$69.51

6

O-Ring

1500003

$8.89

7

Reservoir

1500451

Unavailable

8

Cap, Reservoir

1500160

$216.17

9

O-Ring

1500023

$2.84

10

Asm., Air Valve

1500014

$69.99

11

Asm., Bearing [Incl. 12-19]

1500545

Unavailable

12

O-Ring

1500020

$10.63

13

O-Ring

1500483

$8.89

14

Ring, Snap

1500486

Unavailable

15

Scraper, FIST

1500485

Unavailable

16

O-Ring

1500484

$8.89

17

U-Cup

1500266

$24.27

18

O-Ring

1500021

$10.99

19

Bearing

1500488

Unavailable

20

Bearing

1500444

Unavailable

21

Cap, Body

1500448

Unavailable

22

O-Ring

1500108

$10.99

23

Body

1500446

$70.39

24

Nut, Lock

1500016

$12.79

25

Plate, Backup

1500015

$6.76

26

Bearing

1500002

$31.99

27

Plate, Top-Out

1500017

$20.22

28

Shaft

1500447

$38.89

29

EYELET

1500164

$93.08

30

SLEEVE

1500310

$23.99

31

Bushing

1500309

Unavailable

32

Bumper

5410855

$39.19
