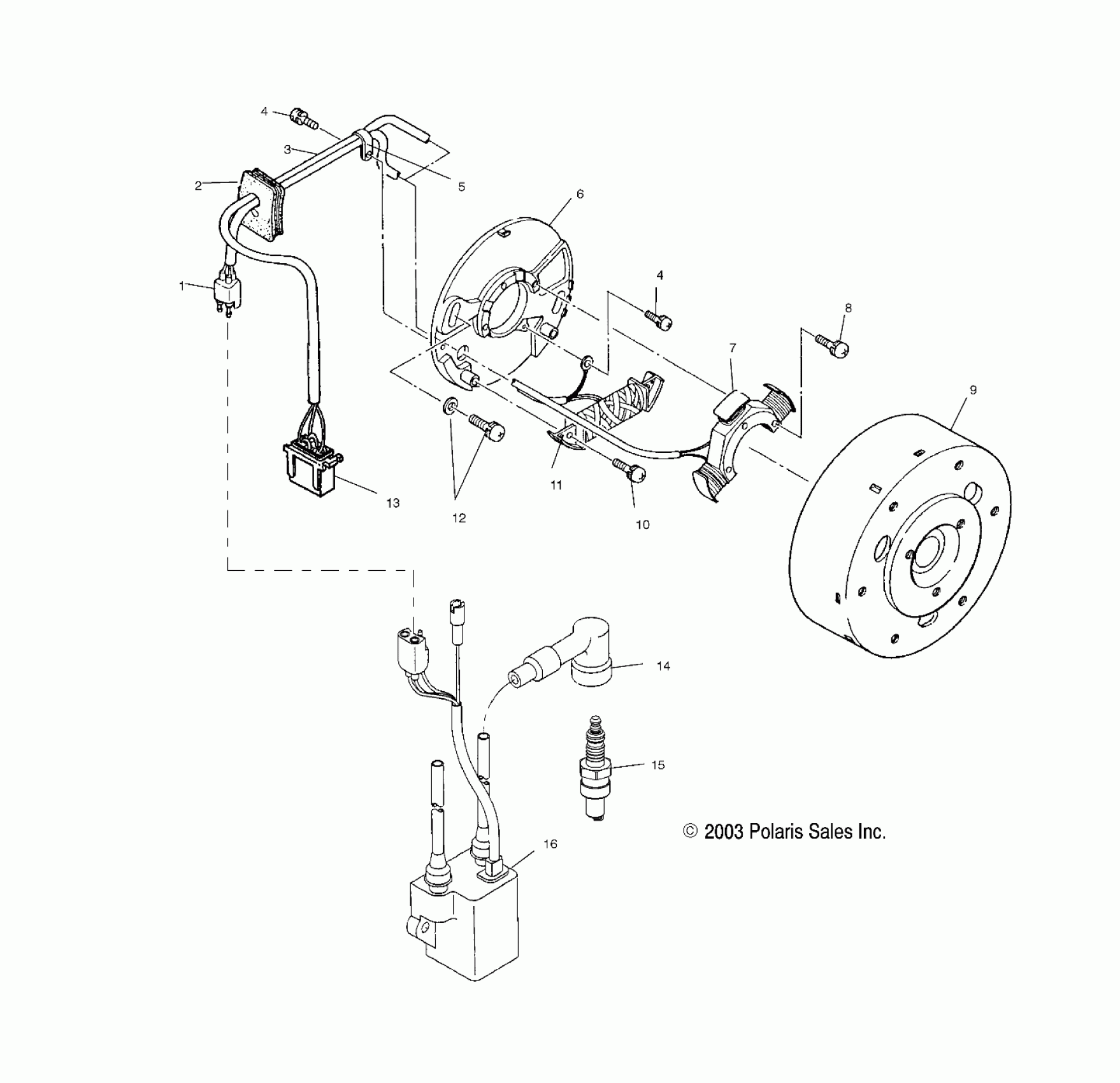

Polaris 500 CLASSIC - S04ND4BS MAGNETO - S04ND4BS/BSA (4988678867D05) Diagram

#

Description
Price

1

Coupler, 3P

3083909

$23.99

2

Grommet

3082969

Unavailable

3

Harness, Wire [Incl. 2]

3087007

$83.79

4

Asm., Screw and Washer

3081260

$3.19

4

Asm., Screw and Washer

3081260

$3.19

5

Clamp

3081296

Unavailable

6

Plate, Coil

3083987

$364.99

6

Asm., Plate [Incl. 1-8,10,11,13]

3087004

$434.99

7

Stator 1

3083991

$339.99

8

Asm., Screw and Washer

3082365

$3.19

9

Asm., Flywheel

3087005

$589.99

10

Asm., Screw and Washer

3083423

$3.19

11

Coil, Exciter

3083984

$89.03

12

Asm., Screw and Washer

3082175

Unavailable

13

Coupler, Male

3081513

$19.99

14

Cap, Resistor Plug

4020129

$9.70

15

Plug, Spark, RN3C Champion

3070166

$3.99

16

Coil, Ignition

3087006

$389.99
