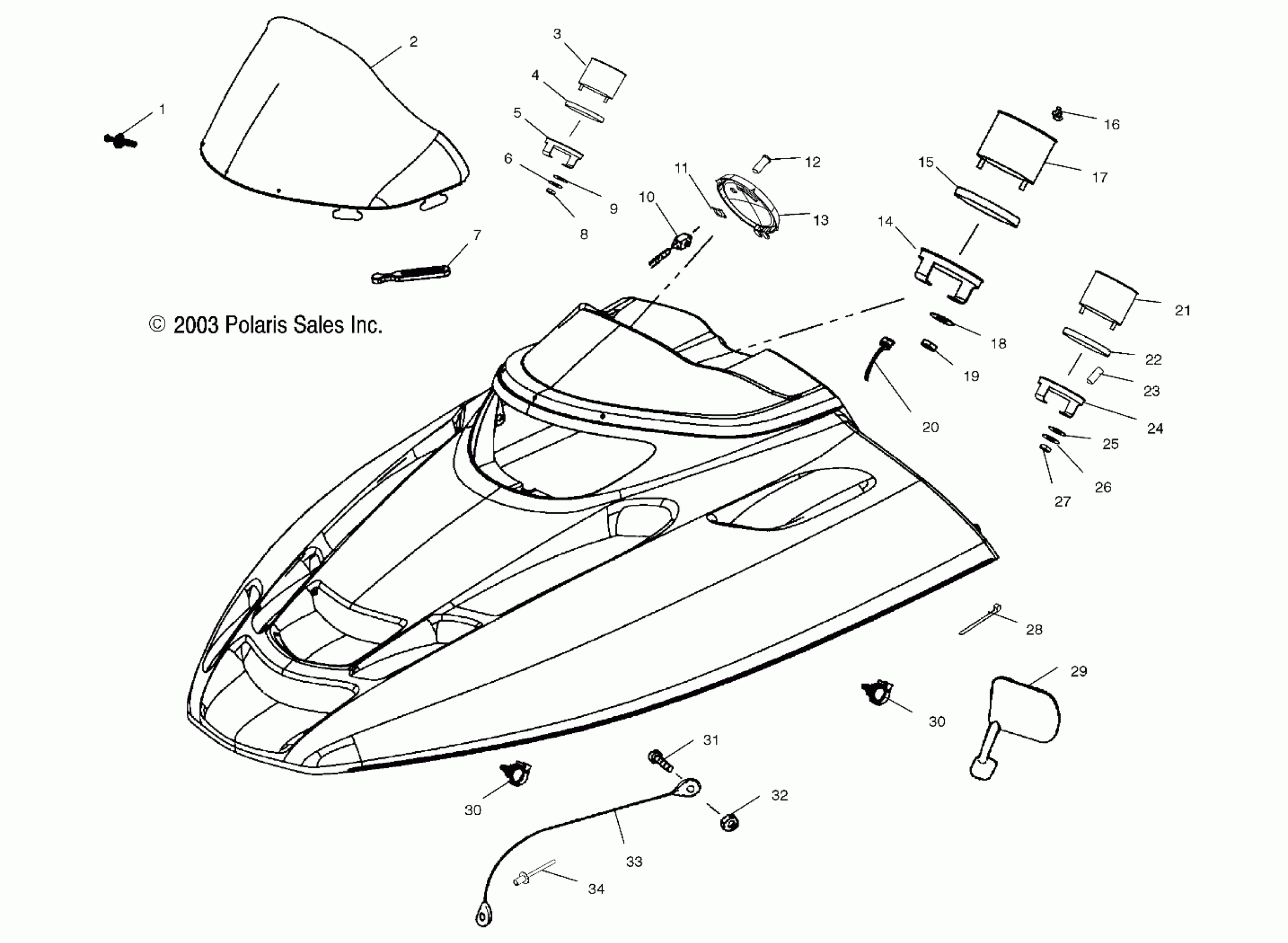

Polaris 500 CLASSIC - S04ND4BS HOOD - S04ND4BS/BSA (4988678867A11) Diagram

#

Description
Price

1

RIVET

7621509

$1.49

2

Windshield, 15-inch

5435045

Unavailable

3

Asm., Gauge, Ride Control [Incl. 4,5]

3280404

$140.79

4

Cushion

3280323

$8.79

5

Clamp

3280322

$5.43

6

Washer, Lock

7555868

Unavailable

7

RETAINER, WINDSHIELD

5410970

$1.49

8

Nut

7541933

$4.99

9

Washer, Flat

3280324

$0.51

10

Harness, Jumper, Temperature Light

2460876

$9.11

11

Retainer

7670133

Unavailable

12

Indicator, High Temp

4010535

Unavailable

13

Plug, Dash

5434081

Unavailable

14

Bracket, Speedometer/Tachometer

3280210

$28.32

15

Cushion, Rubber

3280209

$3.99

16

Knob, Trip Odometer

3280186

$9.70

17

Bulb, Replacement

4030015

$4.03

17

Asm., Speedometer

3280411

$339.98

18

Washer, Flat

3280157

$2.39

19

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

20

Cable, Speedometer

3280385

$93.08

21

Asm., Fuel Gauge

3280410

$106.35

21

Fuse

4060139

Unavailable

22

Cushion, Rubber

3280230

$3.41

23

Spacer

3280228

$2.81

24

Bracket, Fuel Gauge

3280229

Unavailable

25

Washer, Flat

3280231

$0.24

26

Washer, Lock

3280233

Unavailable

27

Nut, Hex

3280232

$1.49

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

29

WASHER

7556088

$4.79

29

Asm., Mirror Edge LH

2632246-070

$89.99

29

Asm., Mirror Edge RH

2632247-070

$89.99

30

CLIP, ROSEBUD

4010589

$2.39

30

CLIP, ROSEBUD

4010589

$2.39

31

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

32

Nut, Nylok

7541925

$1.49

33

Cable, Hood Retainer

7080521

$24.27

34

RIVET-3/16-.090-.290

7661637

$1.49
