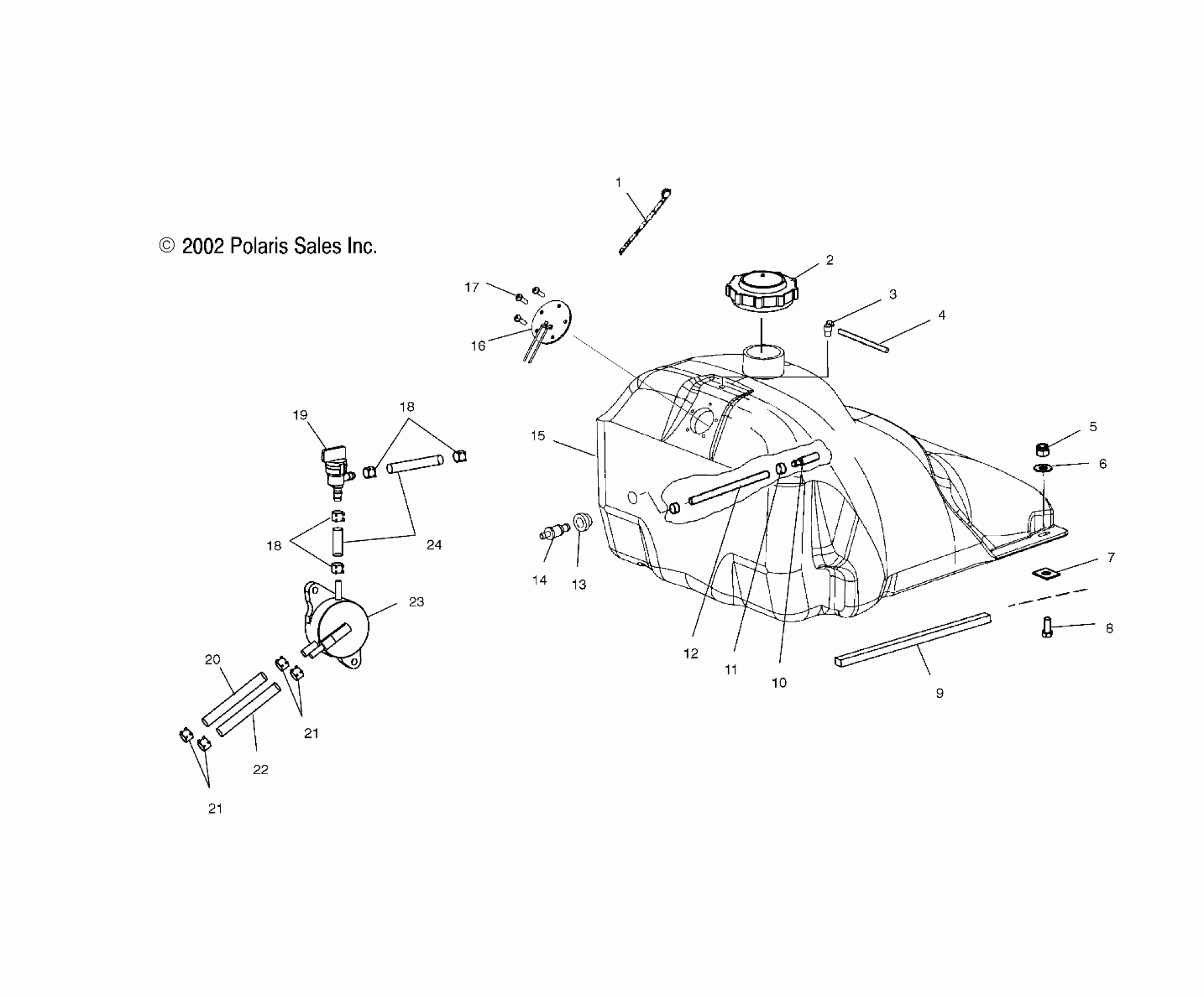

Polaris 500 CLASSIC - S04ND4BS GAS TANK - S04ND4BS/BSA (4988678867A04) Diagram

#

Description
Price

1

Cable Tie Releasable

7080804

$3.22

2

Cap, Fuel

2511195-070

Unavailable

2

Gasket

5810512

$9.11

3

Fitting, 90 Degree

7052095

$4.79

4

LINE, FUEL

8450061-600

Unavailable

5

Nut, Nylok

7542122

$1.49

6

WASHER, FLAT

7555960

$3.99

7

Nut, Speed

7670021

$6.99

8

BOLT, CARRIAGE

7512193

$2.39

9

FOAM-SEAL,REAR COOLER

5810947

$4.03

10

Pickup, Fuel w/Filter

7052301

$12.94

11

RING, COMPRESSION

7080402

$1.60

12

Line, Fuel

8350019-160

Unavailable

13

Grommet

7052028

$6.39

14

Fitting

7052321

$8.79

15

Asm., Fuel Tank [Incl. 3-10]

2520329

Unavailable

16

Sender, Fuel

2410352

Unavailable

17

Package, Hardware, Sending Unit [Incl. Gasket and Screws]

2410456

$6.35

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

Valve, Fuel, 90 Degree

7052249

$24.27

20

Line, Fuel

8350017-600

Unavailable

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

22

Line, Fuel

8450040-600

Unavailable

23

Asm., Fuel Pump

3086998

Unavailable

24

Line, Fuel

8350018-600

Unavailable
