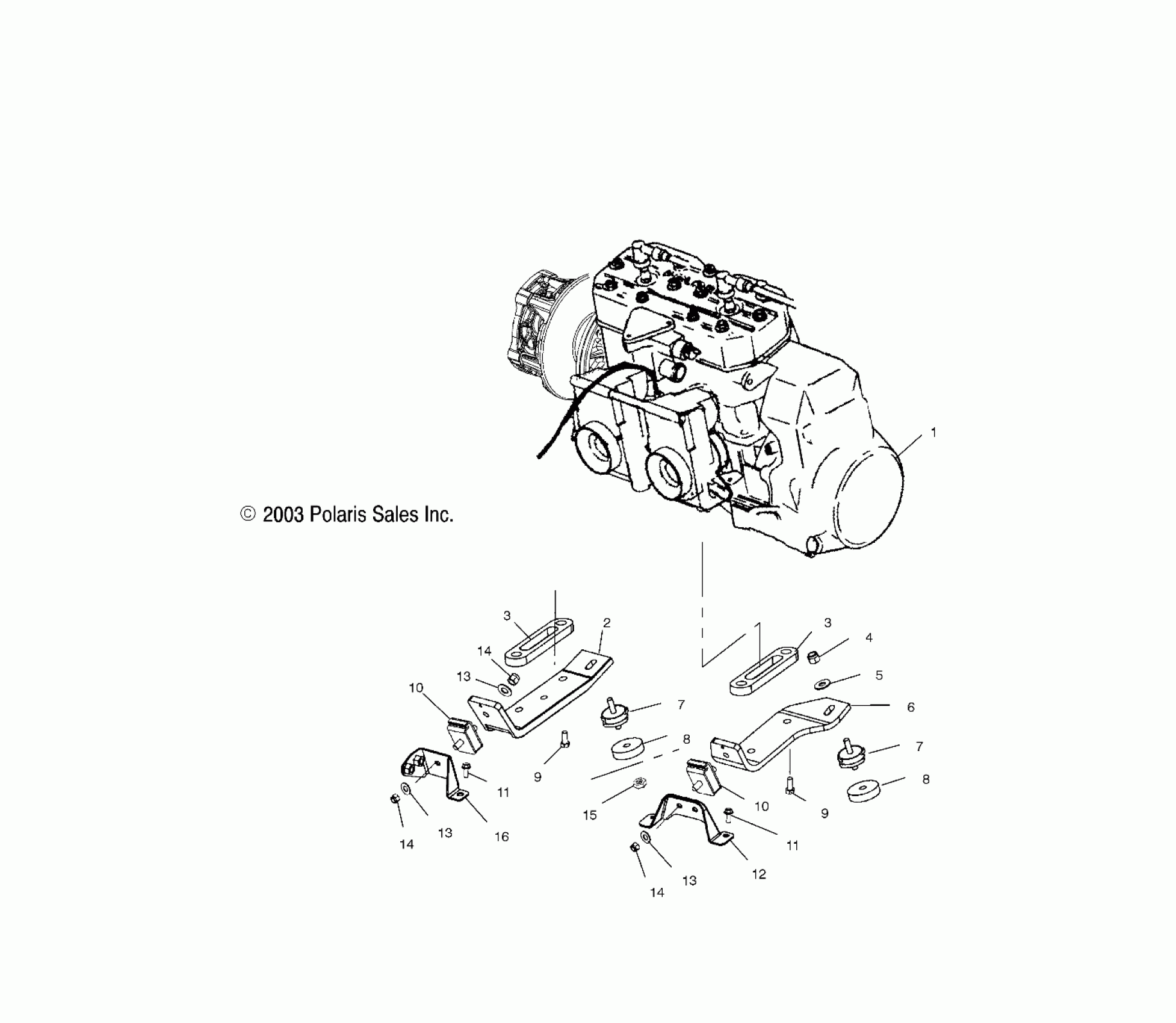

Polaris 500 CLASSIC - S04ND4BS ENGINE MOUNTING - S04ND4BS/BSA (4988678867C11) Diagram

#

Description
Price

1

Engine, Short Block, EC50PL21 NOTE: The short block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required

3086877

Unavailable

2

Strap, Engine Mount, LH

5245473

$32.15

3

Spacer, Engine

5245021

Unavailable

3

Spacer, Engine

5245021

Unavailable

4

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

5

Washer, Flat

7555893

$1.49

6

Strap, Engine Mount, RH

5246380

Unavailable

7

Mount, Engine

3021220

Unavailable

7

Mount, Engine

3021220

Unavailable

8

Spacer, Engine Mount

5245117

$14.49

8

Spacer, Engine Mount

5245117

$14.49

9

Screw

7517399

$8.99

9

Screw

7517399

$8.99

10

Mount, Engine

3021206

$60.70

10

Mount, Engine

3021206

$60.70

11

Screw

7517854

$5.59

11

Screw

7517854

$5.59

12

Bracket, Engine Mount, RH

5245044

Unavailable

13

Washer, Flat

7555806

$1.49

13

Washer, Flat

7555806

$1.49

13

Washer, Flat

7555806

$1.49

14

NUT, FLEXLOC

7547008

$6.39

14

NUT, FLEXLOC

7547008

$6.39

14

NUT, FLEXLOC

7547008

$6.39

15

Nut, Flange

7547180

$2.39

16

Bracket, Engine Mount, LH

1013397

$24.27
