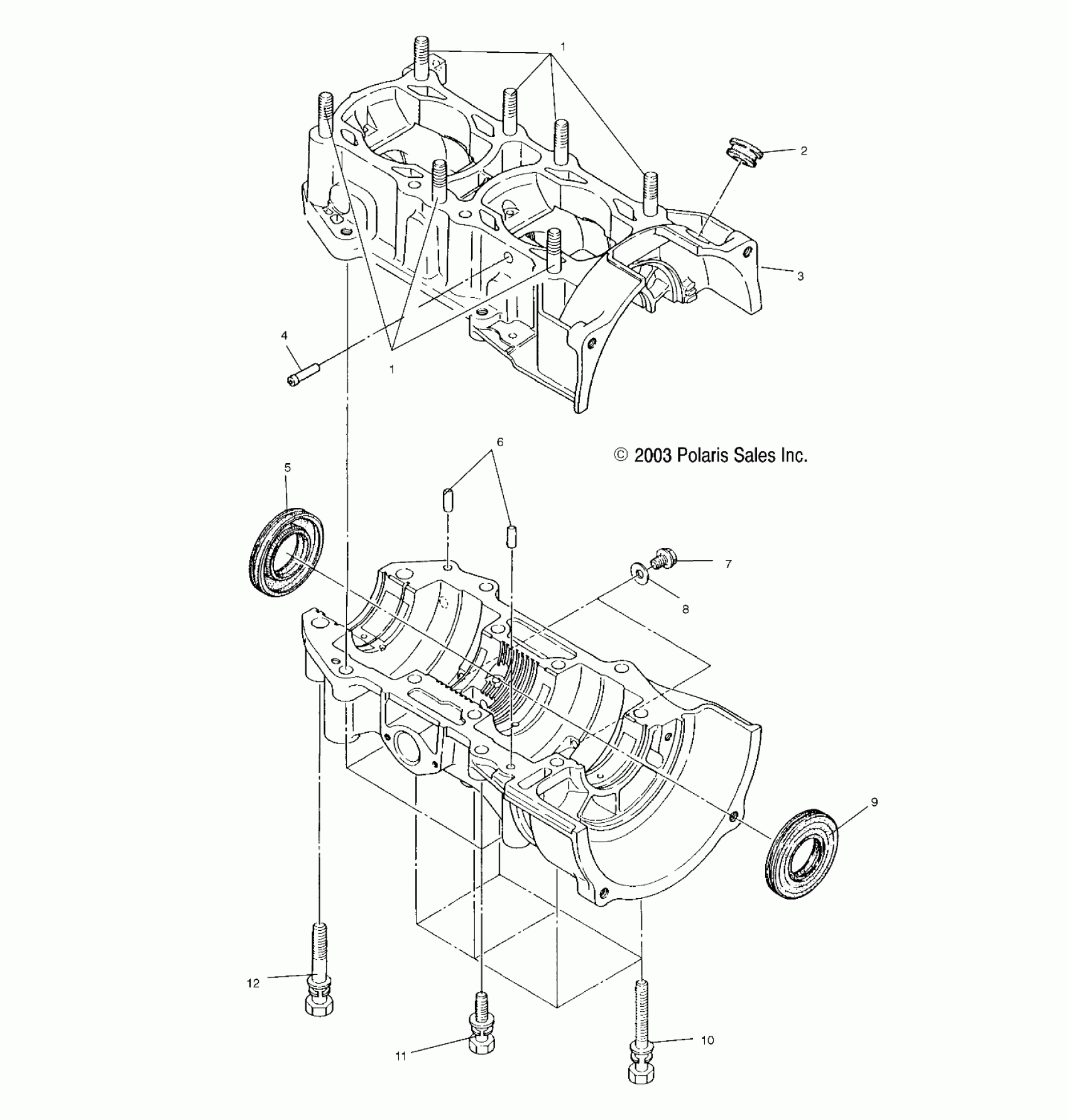

Polaris 500 CLASSIC - S04ND4BS CRANKCASE - S04ND4BS/BSA (4988678867C12) Diagram

#

Description
Price

1

Stud

3084119

$9.59

1

Stud

3084119

$9.59

2

GROMMET

3082875

$7.99

3

Asm., Crankcase [Incl. 1,4,6,10-12]

3086832

$854.99

4

PIPE, PULSE

3083798

$9.52

5

Seal, Oil [PTO Side]

3085200

$36.41

6

Pin, Dowel

3080103

$7.14

7

Bolt, Flange

3083568

$3.85

8

Gasket, Aluminum

3082758

$1.19

9

Seal, Oil [MAG Side]

3086833

$36.41

10

Asm., Bolt and Washer

3080739

$6.39

11

Asm., Bolt and Washer

3083078

Unavailable

12

Asm., Bolt and Washer

3084220

$8.79
