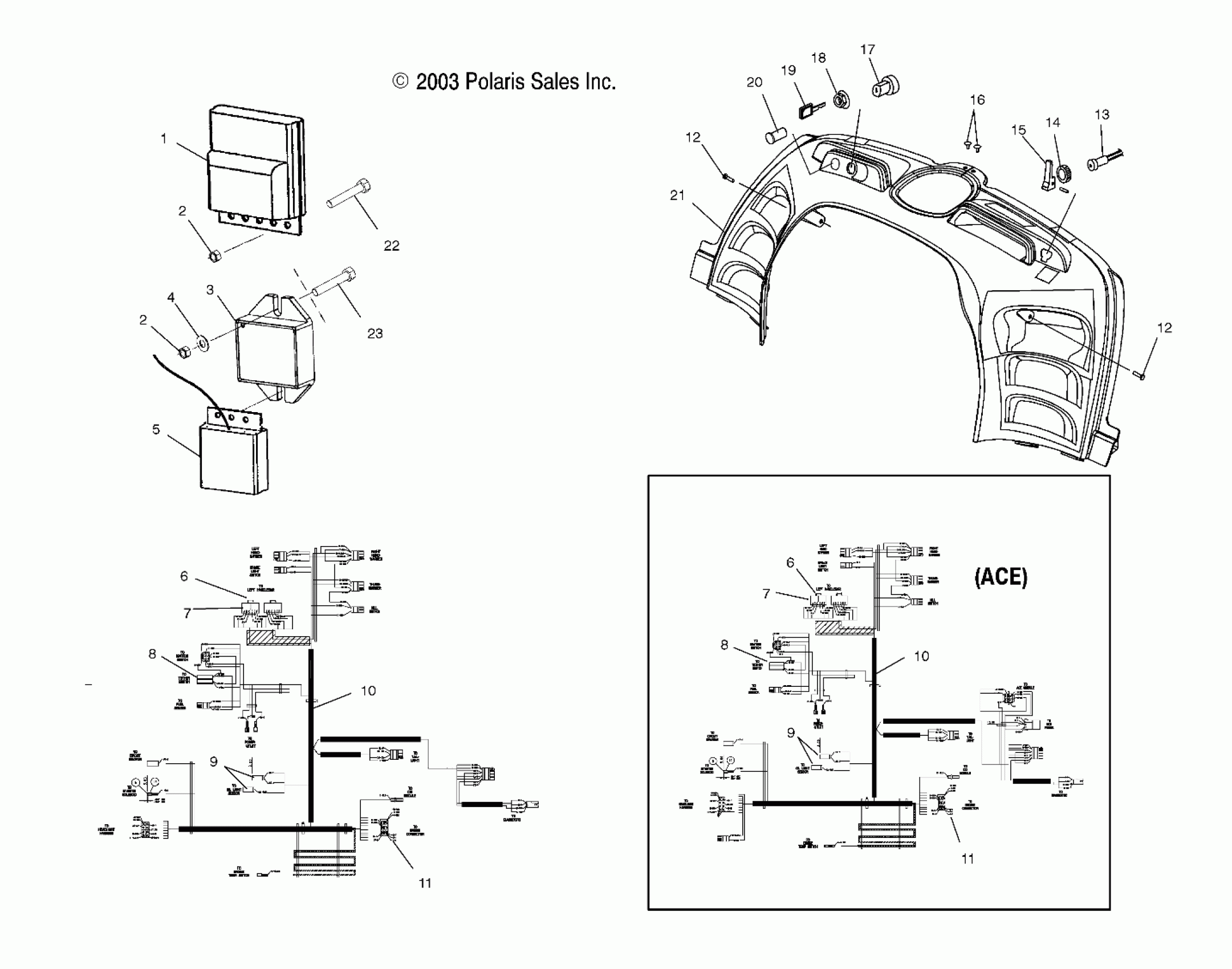

Polaris 500 CLASSIC - S04ND4BS CONSOLE - S04ND4BS/BSA (4988678867B03) Diagram

#

Description
Price

1

Controller, M-10, ACE, Electric

4010597

$304.75

2

Nut, Nylok

7541925

$1.49

2

Nut, Nylok

7541925

$1.49

3

Regulator, AC/DC 14.3V

4010794

$116.17

4

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

5

Regulator, Rectifier [M-10 ACE]

4010730

$70.39

6

Housing, Connector

4010193

$8.79

6

Housing, Connector

4010193

$8.79

7

Socket

4010192

Unavailable

7

Socket

4010192

Unavailable

8

HOUSING

4020063

$3.19

8

HOUSING

4020063

$3.19

9

Housing, 1 Circuit

4020153

Unavailable

9

Housing, 1 Circuit

4020153

Unavailable

10

Harness, Main

2461147

$140.79

10

Harness, Main [M-10 ACE]

2461163

$148.79

10

Harness, Main

2461147

$140.79

10

Harness, Main [M-10 ACE]

2461163

$148.79

11

Housing

4020057

$3.51

11

Housing

4020057

$3.51

12

Screw

7515199

$1.49

12

Screw

7515199

$1.49

13

Cable, Choke [Incl. 14,15]

7080753

Unavailable

14

Nut, Choke

5432944

$8.79

15

Lever, Choke [Incl. Pin]

5432943

Unavailable

16

CLIP-PLASTIC DART, NYLON

7670088

$1.59

17

Kit, Ignition Switch

2200358

$76.89

18

Nut, Ignition

7547035

$8.79

19

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

20

Receptacle, Pod Mount

4010638

$24.27

21

Console w/ACC

5434483-070

Unavailable

22

Screw

7512050

$3.99

23

Screw

7517263

Unavailable
