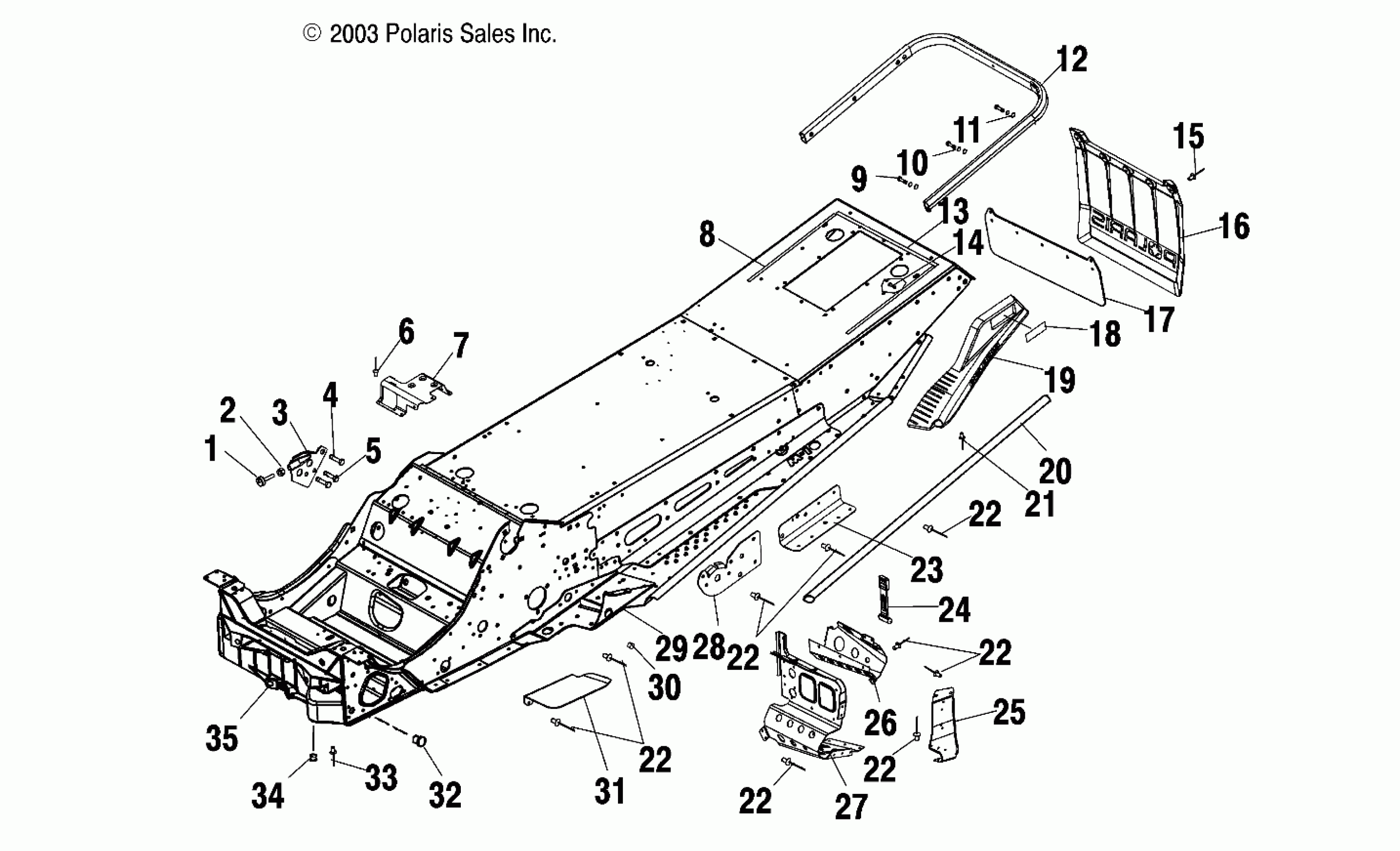

Polaris 500 CLASSIC - S04ND4BS CHASSIS - S04ND4BS/BSA (4988678867A03) Diagram

#

Description
Price

-

Asm., Chassis, M-10, Natural

1014172-067

$1,299.99

1

Stop, Torque

3021104

$20.22

2

NUT

7542404

$1.59

3

Stop, Torque

1013399

$27.19

4

SCREW

7517632

$5.59

5

Screw

7517854

$5.59

6

Rivet

7621432

$1.49

7

Bracket, Oil Tank/Hose Support

5246330

$13.19

8

Gasket, Seat Base [Std.]

5812290

$1.49

9

Bolt

7512232

$1.49

10

WASHER, SPRING LOCK

7552801

$1.59

11

Washer, Flat

7558301

$1.49

12

Bumper, Rear, Unpainted

2632165-309

Unavailable

13

Seal, Seat, Rear

5812525

Unavailable

14

Screw

7517441

$2.39

15

RIVET

7621418

$1.49

16

Flap, Snow, Edge, Long Black/Chrome

5434847-1106

$139.99

17

Backer, Snow Flap

5812430

Unavailable

18

Reflector, Red

2670133

$5.75

19

Skirt, Snow, LH

2632443-070

$64.75

19

Skirt, Snow, RH

2632444-070

$55.99

20

Brace, Tunnel Roll

5245118-067

$22.23

21

RIVET

7621472

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

23

Brace, Tunnel, Lower, LH

5244997-067

$19.83

23

Brace, Tunnel, Lower, RH

5244998-067

$19.83

24

STRAP-AIRBOX TOP

5433150

$24.27

25

Support, Footrest, LH

5246310-067

$19.68

25

Support, Footrest, RH

5246311-067

Unavailable

26

Mount, Console, Toe Clip, LH

5245457-067

Unavailable

26

Mount, Console, Toe Clip, RH

5245458-067

Unavailable

27

Footrest, LH

5245288-067

Unavailable

27

Footrest, RH

5247205-067

Unavailable

28

Pad, Suspension, Front, LH

5244999-067

Unavailable

28

Pad, Suspension, Front, RH

5245001-067

$24.27

29

Kit, Trailing Arm Mount, LH

2202059

$213.00

29

Kit, Trailing Arm Mount, RH

2202598

$124.99

30

PLUG, BARBED

7081085

$7.27

30

Grommet, M-10 ACE

5412276

$3.19

31

Guard, Belt

5246066

Unavailable

32

PLUG, HOLE

7080416

$5.65

33

Rivet

7661130

$1.49

34

Plug, Hole

7081076

$3.22

35

Bulkhead, Front

5132292

$115.99
