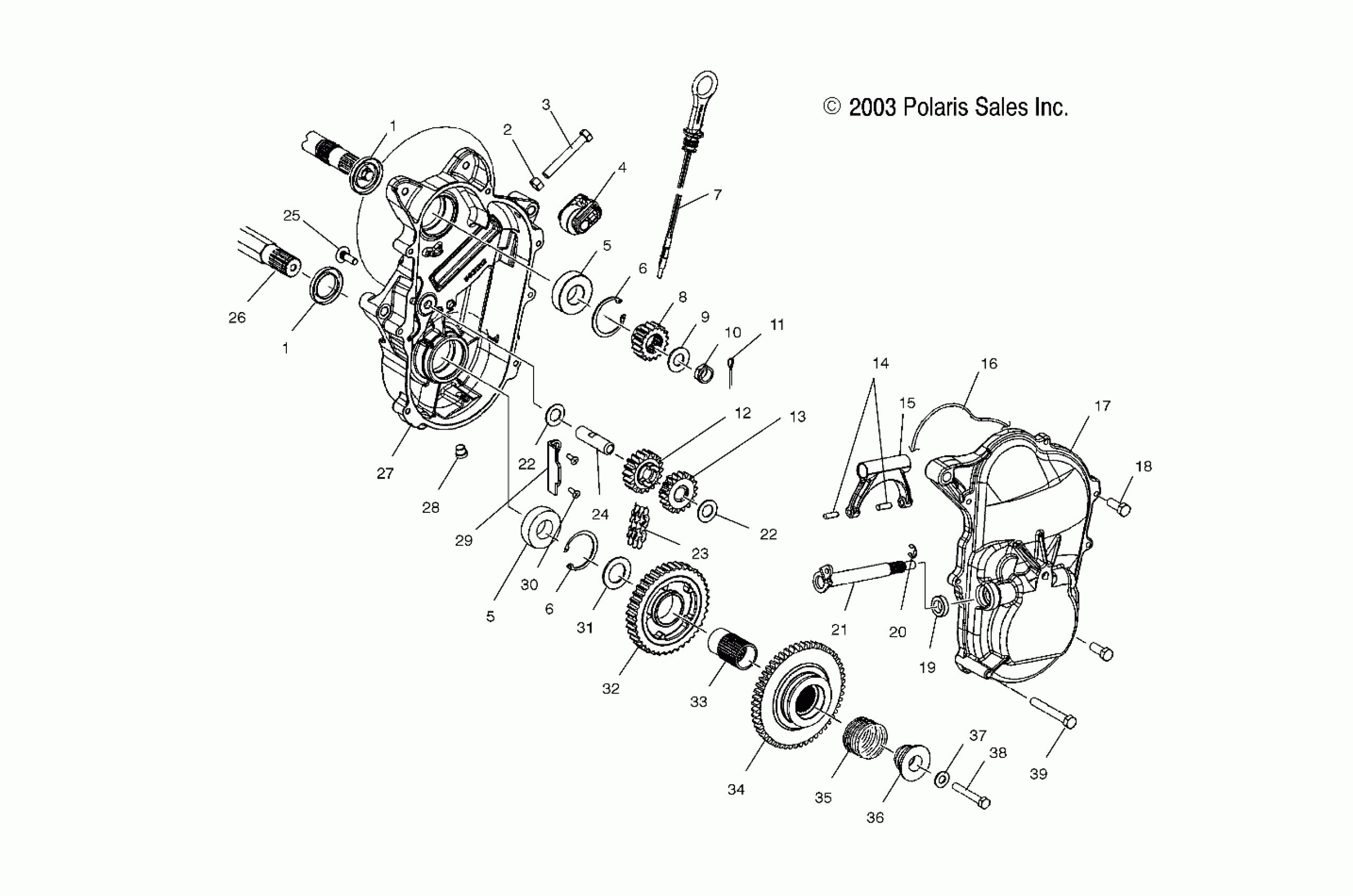

Polaris 500 CLASSIC - S04ND4BS CHAINCASE - S04ND4BS/BSA (4988678867B09) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT

7542404

$1.59

3

SCREW

7515459

$5.59

4

Asm., Tightener, Chain, Quiet

1341437

$71.41

5

BEARING, BALL

3514309

$15.87

5

BEARING, BALL

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

ASM., DIPSTICK

1332143

$54.99

8

SPROCKET, 21T, 3/4W

3221097

$49.99

9

Washer, Spring

7571620

$7.19

10

Nut, Nylok

7547202

$5.59

11

Pin, Cotter

7661203

$1.49

12

Asm., Sprocket, Pinion, 18T, 3/4W

1341241

Unavailable

12

Bearing, Needle

3554508

$16.99

13

Asm., Pinion Gear, Spur

1341075

$149.99

13

Bearing, Needle

3554508

$16.99

14

Pin, Dowel

7661826

$5.65

15

Kit, Shift Fork/Shaft [Incl. 14,21]

2200363

Unavailable

15

Fork, Shift

5130805

Unavailable

16

Gasket, Chaincase O-Ring

5411497

$20.22

17

Cover, Chaincase

5133615

$298.99

18

SCREW

7512242

$2.39

19

Seal, Oil

3610029

$8.89

20

Ring, Retaining

7710415

$3.99

21

Shaft, Shift

1341388-067

Unavailable

22

WASHER, THRUST

7555877

$3.99

22

WASHER, THRUST

7555877

$3.99

23

CHAIN, 74P, 3/4W

3221109

$164.99

24

Shaft, Pinion, w/Wrench Flats

5131770

Unavailable

25

Screw

7515477

$34.99

26

ASM., JACKSHAFT [SEE DRIVE TRAIN PG. B13, REF. 18]

-------

Unavailable

27

Chaincase

5134085

$113.32

28

PLUG

7052115

$5.65

29

Bracket, Chain Retention

5246421

$36.41

30

Screw

7512019

$3.99

31

Washer

7555871

$5.59

32

Asm., Sprocket, 40T, 3/4W

1341227

Unavailable

32

Bearing, Needle

3555104

Unavailable

33

Coupler, Drive

5130720

Unavailable

34

Asm., Gear, Reverse

1341410

$559.99

35

Spring, Compression

7041887

$44.99

36

Retainer, Drive Coupler

5130727

Unavailable

37

WASHER, SPRING LOCK

7552901

$1.49

38

SCREW

7517581

$1.59

39

SCREW

7518052

$7.19
