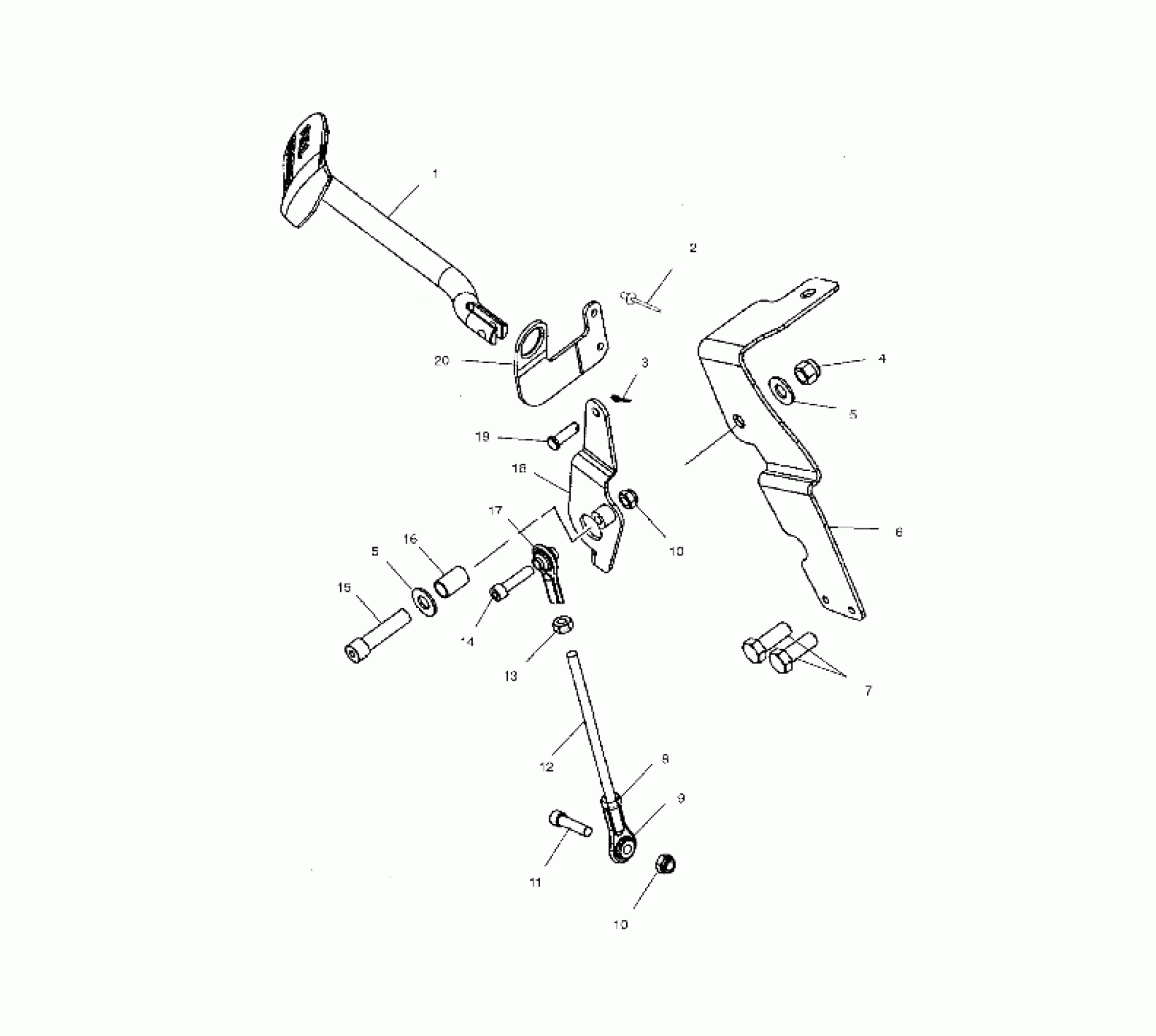

Polaris 500 CLASSIC - S02ND4BS SHIFT - S02ND4BS (4970417041B006) Diagram

#

Description
Price

1

LEVER-SHIFT,EDGE

5434351

Unavailable

2

RIVET-3/16-.090-.290

7661637

$1.49

3

PIN, COTTER(10)

7661010

$1.49

4

NUT-LOCK(10)

7542439

$1.49

5

WASHER(10) (If built before 4/01/01)

7555806

$1.49

5

WASHER,WAVE(10) (If built after 4/01/01)

7556060

Unavailable

5

WASHER(10) (If built before 4/01/01)

7555806

$1.49

5

WASHER,WAVE(10) (If built after 4/01/01)

7556060

Unavailable

6

BRKT,SHIFTACTUATOR (If built before 4/01/01)

5243986

$36.31

7

SCREW,(10) (If built before 4/01/01)

7517386

$1.49

8

NUT(10)

7542129

$4.79

9

ROD END

7060170

$26.39

10

NUT-LOCK(10)

7542122

$1.49

10

NUT-LOCK(10)

7542122

$1.49

11

SCR-1/4-20X1 SOC CP-SS

7517864

$2.23

12

ROD,THREADED

5132361

Unavailable

13

NUT,JAM,LH,1/4"X28

7547088

Unavailable

14

SCREW-1/4-20X1.5-HX/CP/SDC-SS

7517869

$3.59

15

BOLT(10) (If built before 4/01/01)

7515537

$10.99

15

SCREW(10) (If built after 4/01/01)

7512163

$3.99

16

TUBE Substituted by 5334032 (If built before 4/01/01)

5333845

$4.76

16

BUSHING-.395X.494X1.135 (If built after 4/01/01)

5334052

$5.83

17

ROD END,1/4-28X.59

7061030

Unavailable

18

WELD-SHIFT ACTUATOR,LONG TUBE

1341418

$87.19

19

CLEVIS(10)

7661843

$2.39

20

BRKT-SHIFT LEVER GUIDE

5244636

Unavailable
