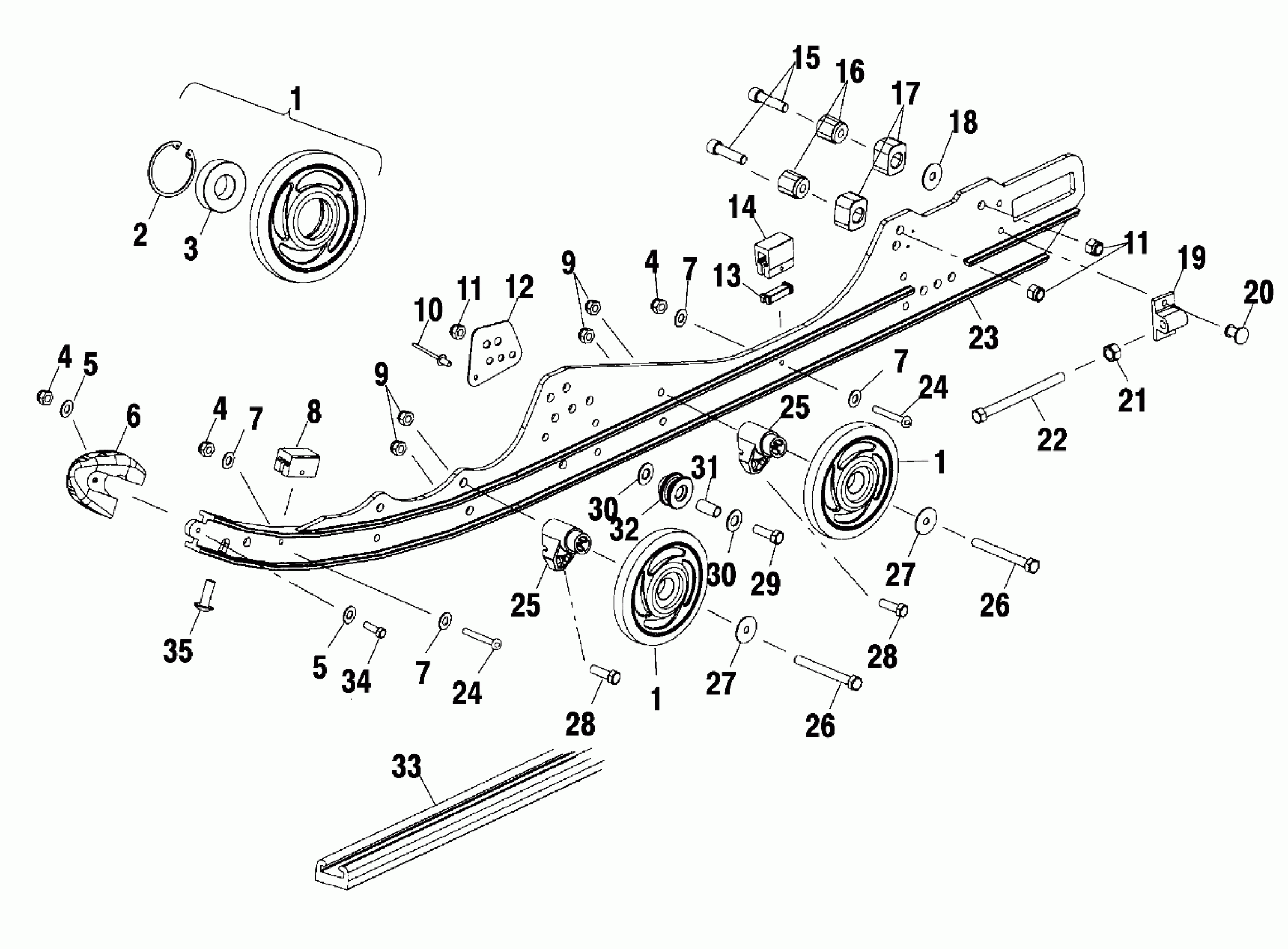

Polaris 500 CLASSIC - S02ND4BS RAIL MOUNTING (SUSPENSION) - S02ND4BS (4970417041B009) Diagram

#

Description
Price

1

ASM-WHEEL SCRLLD,5.35,BLUE (Incl. 2,3)

1590275-312

Unavailable

1

ASM-WHEEL SCRLLD,5.35,BLUE (Incl. 2,3)

1590275-312

Unavailable

1

ASM-WHEEL SCRLLD,5.35,BLUE (Incl. 2,3)

1590275-312

Unavailable

2

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

3

BEARING (1 per Wheel)

3514303

$11.99

4

NUT(10)

7541925

$1.49

4

NUT(10)

7541925

$1.49

4

NUT(10)

7541925

$1.49

5

WASHER(10)

7555792

$4.79

5

WASHER(10)

7555792

$4.79

6

CAP-RAIL TIP

5434374

$20.22

7

WASHER(10)

7555783

$3.99

7

WASHER(10)

7555783

$3.99

7

WASHER(10)

7555783

$3.99

7

WASHER(10)

7555783

$3.99

8

BUMPER,JOUNCE FRONT

5521499

$8.89

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

RIVET(50)

7661845

$1.49

11

NUT-LOCK(10)

7542439

$1.49

11

NUT-LOCK(10)

7542439

$1.49

12

BRKT,RAIL REINF

5244677

$39.98

13

LINER-BUMPER

5432946

$9.70

14

BUMPER,JOUNCE REAR

5521498

$8.89

15

BOLT(10)

7515537

$10.99

16

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

17

BUMPER,F.PIVOT ARM

5410925

$12.94

18

SPACER,1.00X.390X.105 [No Longer Available]

5244371

Unavailable

19

BLOCK,IDLER BOLT ADJ,7/16

5132444

$28.32

20

RIVET,(50)

7621501

$2.39

21

NUT-7/16-14-JAM

7547156

$9.59

22

SCR,7/16-14X3 3/4XHD

7517773

$28.56

23

RAIL,ASM,121,LH (Incl. 6,8,14,17,19)

1541480

$364.99

23

RAIL,ASM,121,RH (Incl. 6,8,14,17,19)

1541481

$364.99

24

SCREW(10)

7510504

$6.76

24

SCREW(10)

7510504

$6.76

25

BLOCK-WHEEL MOUNT,LWT

5631065

$28.32

25

BLOCK-WHEEL MOUNT,LWT

5631065

$28.32

26

BOLT(10)

7515346

$5.59

26

BOLT(10)

7515346

$5.59

27

WASHER-SPRING,CON 5/16X.090-Y

7556179

$7.99

27

WASHER-SPRING,CON 5/16X.090-Y

7556179

$7.99

28

BOLT(10)

7515317

$4.79

28

BOLT(10)

7515317

$4.79

29

BOLT(10)

7515438

$4.79

30

WASHER(10) Substituted by 7555893

7555983

Unavailable

30

WASHER(10) Substituted by 7555893

7555983

Unavailable

31

SPACER-.407X.625X1.33

5333948

$6.39

32

ROLLER-SPRING,SQUARE

5433959

$8.08

33

Slider, XL, Service, Basic

5521571

$36.41

34

SCREW(10)

7511975

Unavailable

35

SCREW(10)

7515199

$1.49
