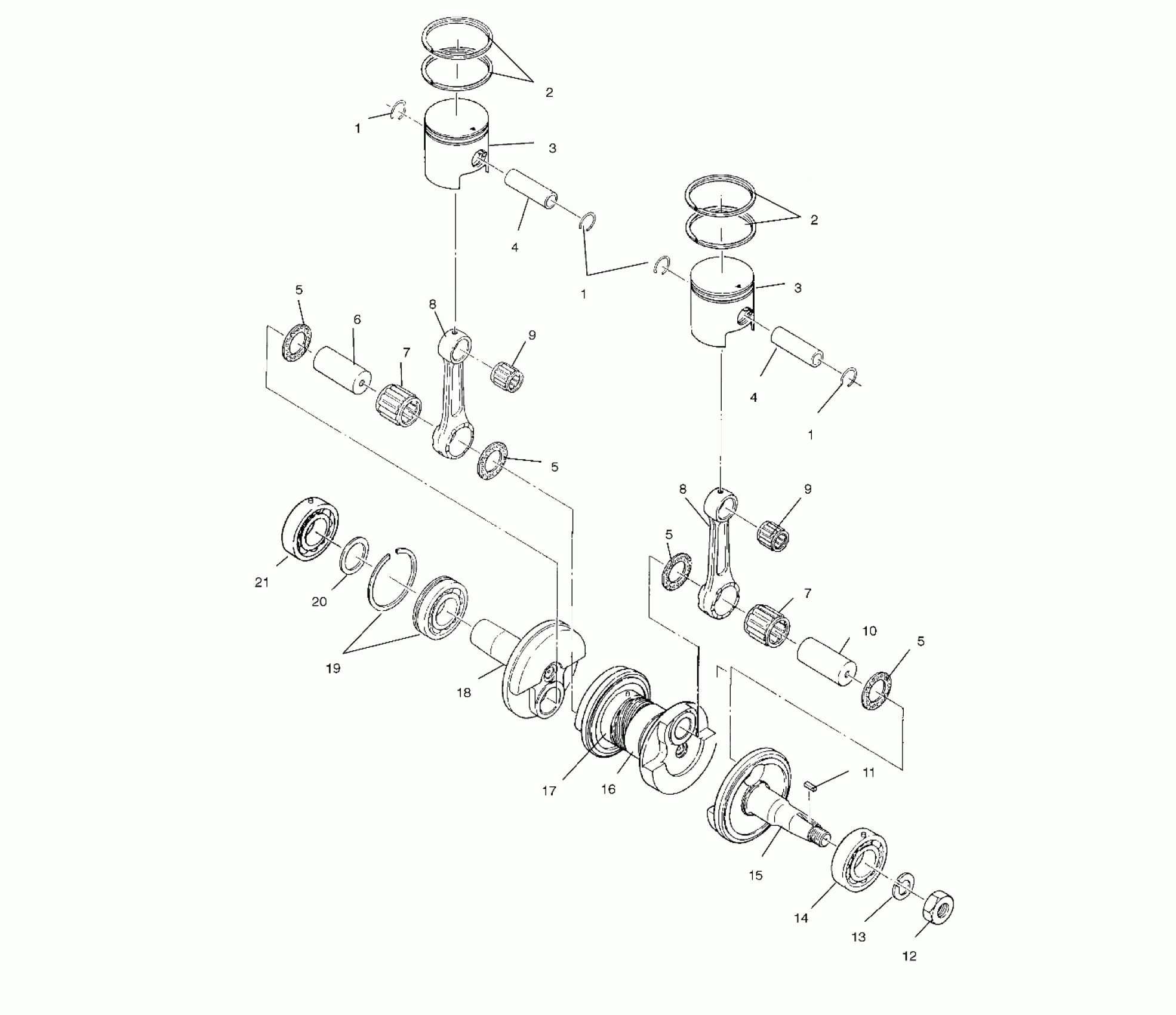

Polaris 500 CLASSIC - S02ND4BS PISTON and CRANKSHAFT - S02ND4BS (4970417041C008) Diagram

#

Description
Price

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

2

RING,PISTON,STD. (Standard)

3084342

$47.60

2

RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)

3084343

Unavailable

2

RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)

3084344

$66.65

2

RING,PISTON,STD. (Standard)

3084342

$47.60

2

RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)

3084343

Unavailable

2

RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)

3084344

$66.65

3

PISTON,(.010 O/S) (0.25mm/.010" O/S)

3084340

Unavailable

3

PISTON, (.020 O/S) (0.50mm/.020" O/S)

3084341

Unavailable

3

PISTON, STD. (Standard)

3084339

Unavailable

3

PISTON,(.010 O/S) (0.25mm/.010" O/S)

3084340

Unavailable

3

PISTON, (.020 O/S) (0.50mm/.020" O/S)

3084341

Unavailable

3

PISTON, STD. (Standard)

3084339

Unavailable

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

PIN, CRANK, 2 (57mm)

3083456

Unavailable

7

BEARING,LARGE END

3085628

$31.99

7

BEARING,LARGE END

3085628

$31.99

8

ROD-CONNECTING

3083252

$164.99

8

ROD-CONNECTING

3083252

$164.99

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

10

PIN,CRANK (56mm)

3083233

$36.41

11

KEY Substituted by 3081543

3080130

Unavailable

12

NUT

3083093

$19.99

13

WASHER-SPRING(10)

3083094

$3.17

14

BEARING,BALL

3086878

Unavailable

15

CRANKSHAFT 1(MAG SIDE) (Mag Side)

3086835

$426.99

15

CRANKSHAFT (Incl. 5-8,10-18)

3086997

Unavailable

16

CRANKSHAFT 2 (Center)(Incl. 6,10)

3083713

$583.49

17

BEARING,BALL

3084601

$49.99

18

CRANKSHAFT 3 (PTO Side)

3085202

Unavailable

19

BALL BEARING

3085204

Unavailable

20

Spacer

3085203

$6.39

21

BALL BEARING

3085205

Unavailable
