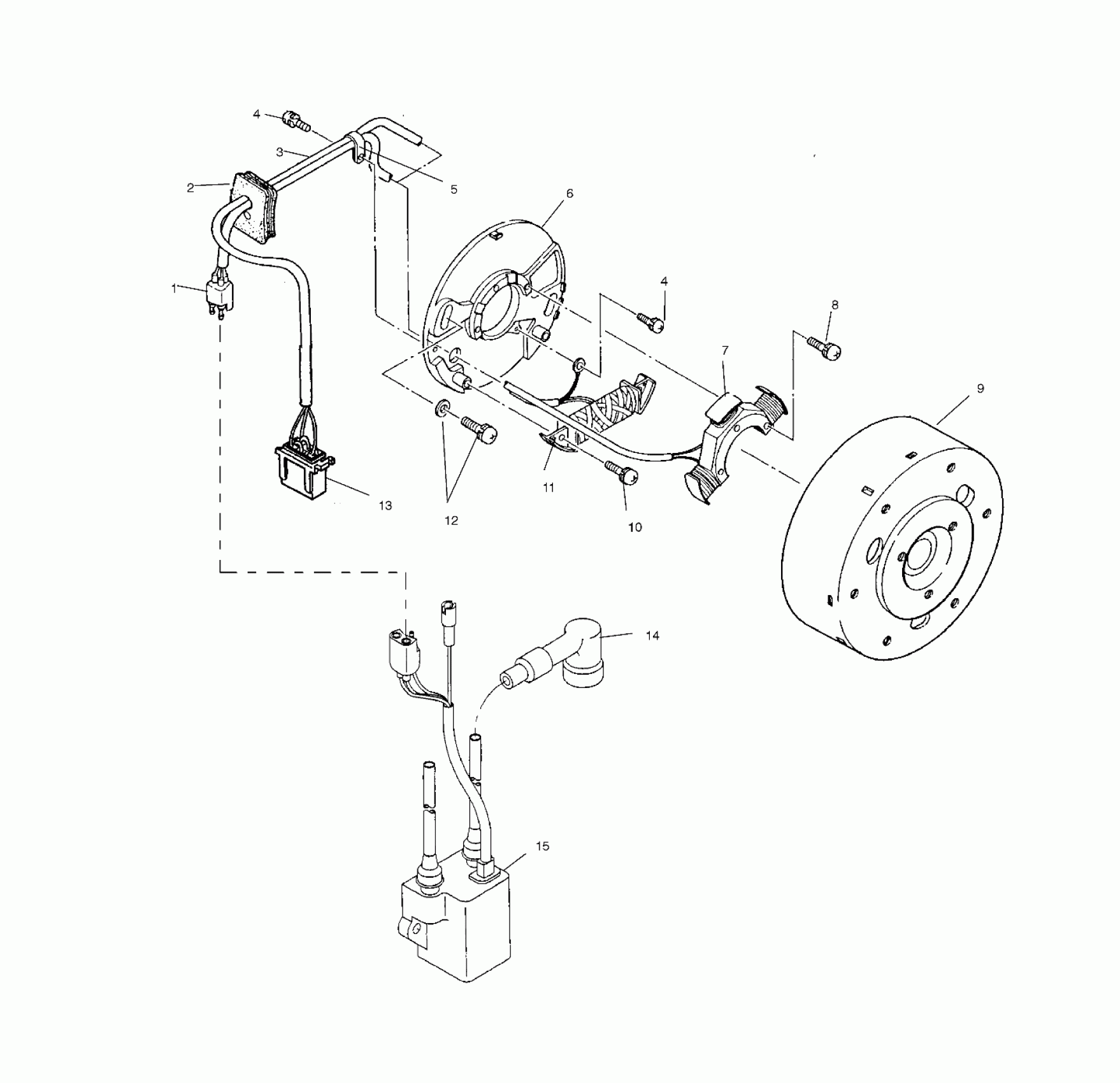

Polaris 500 CLASSIC - S02ND4BS MAGNETO - S02ND4BS (4970417041C013) Diagram

#

Description
Price

1

COUPLER

3083909

$23.99

2

Grommet

3082969

Unavailable

3

HARNESS-WIRE (Incl. 2)

3087007

$83.79

4

SCREW&WASHER,(10)

3081260

$3.19

4

SCREW&WASHER,(10)

3081260

$3.19

5

Clamp

3081296

Unavailable

6

Plate, Coil

3083987

$364.99

6

ASM-PLATE (Incl. 1-8,10,11,13)

3087004

$434.99

7

Stator 1

3083991

$339.99

8

SCREW(10)

3082365

$3.19

9

ASM-FLYWHEEL

3087005

$589.99

10

SCREW & WASHER

3083423

$3.19

11

Coil, Exciter

3083984

$89.03

12

SCREW&WASHER,(10)

3082175

Unavailable

13

COUPLER,MALE

3081513

$19.99

14

CAP SPARK PLUG,(10)

4020129

$9.70

15

COIL-IGNITION

3087006

$389.99
