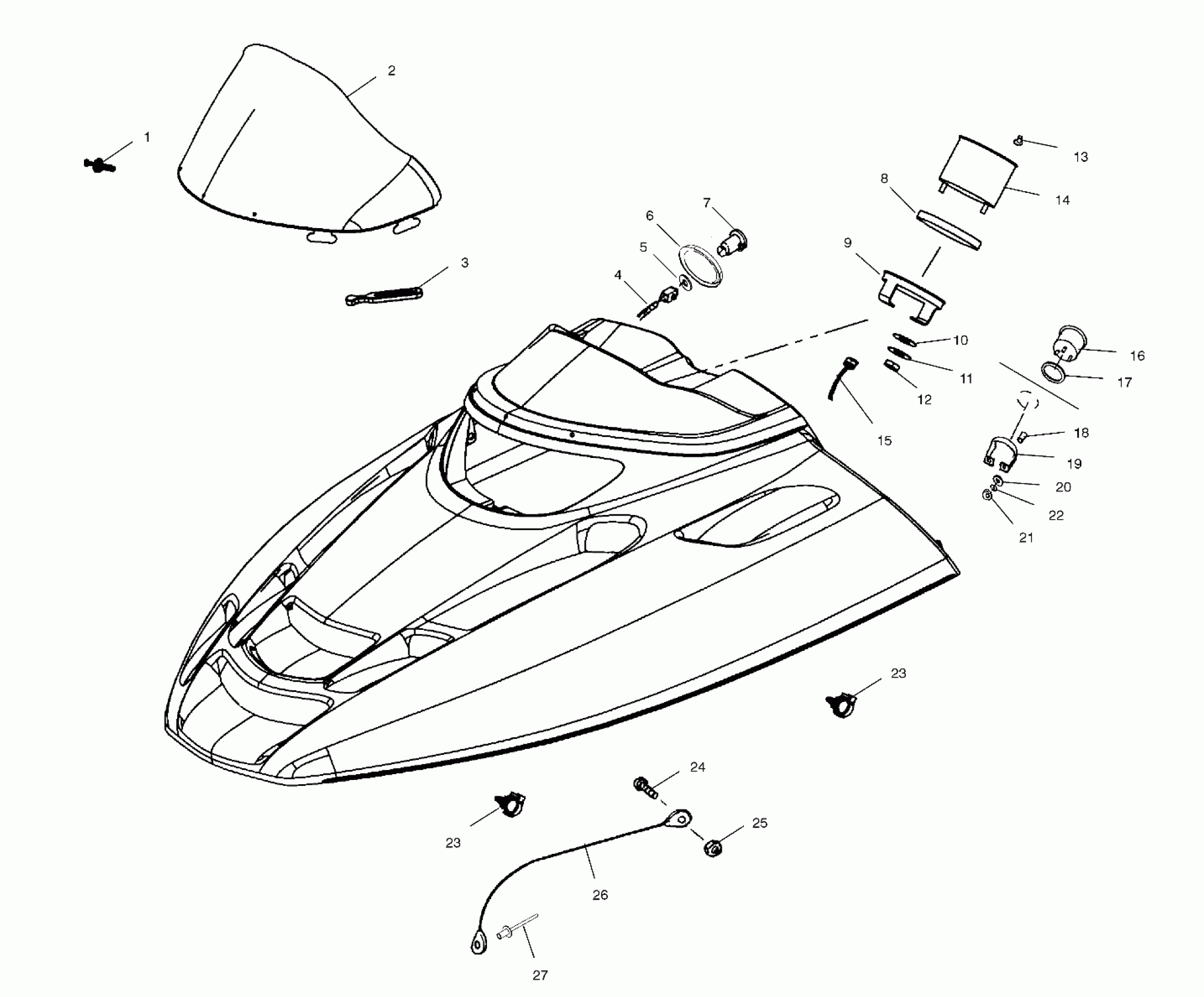

Polaris 500 CLASSIC - S02ND4BS HOOD - S02ND4BS (4970417041A008) Diagram

#

Description
Price

1

RIVET,PLASTI-LOC.(50)

7621509

$1.49

2

WDSHLD,15"FLR SMK,EDGE

5433517

Unavailable

3

RETAINER,WINDSHIELD,(10)

5410970

$1.49

4

HARNESS-JUMPER,TEMP LIGHT

2460876

$9.11

5

RETAINER-1/2" BOLT/LAMP

7670133

Unavailable

6

PLUG-DASH,5" W/SINGLE 1/2"HOLE

5434081

Unavailable

7

INDICATOR-HIGH TEMP,1/2" DIA

4010535

Unavailable

8

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

9

BRKT,TACH/SPEEDO,5"

3280210

$28.32

10

WASHER,FLAT,(10)

3280157

$2.39

11

WASHER,SPLIT LOCK

3280156

$1.49

12

Nut

3280158

Unavailable

13

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

14

BULB TAILLIGHT(10)

4030015

$4.03

14

SPEEDO,5",120MPH,WH,W/OANG

3280348

$212.70

15

CABLE-SPEEDOMETER

3280385

$93.08

16

GUAGE,FUEL,2"BACKLIT

3280334

$131.99

16

Fuse

4060139

Unavailable

17

CUSHION,FUELGAUGE,(2"),RUBBER

3280230

$3.41

18

SPACER,BRKT,(FUELGAUGE)

3280228

$2.81

19

BRACKET,FUELGAUGE,(2")

3280229

Unavailable

20

Washer

3280231

$0.24

21

Nut

3280232

$1.49

22

WASHER,SPLITLOCK

3280233

Unavailable

23

CLIP-PLASTIC,DART NYLON

4010589

$2.39

23

CLIP-PLASTIC,DART NYLON

4010589

$2.39

24

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

25

NUT(10)

7541925

$1.49

26

CABLE,HOOD RETAINER

7080521

$24.27

27

RIVET-3/16-.090-.290

7661637

$1.49
