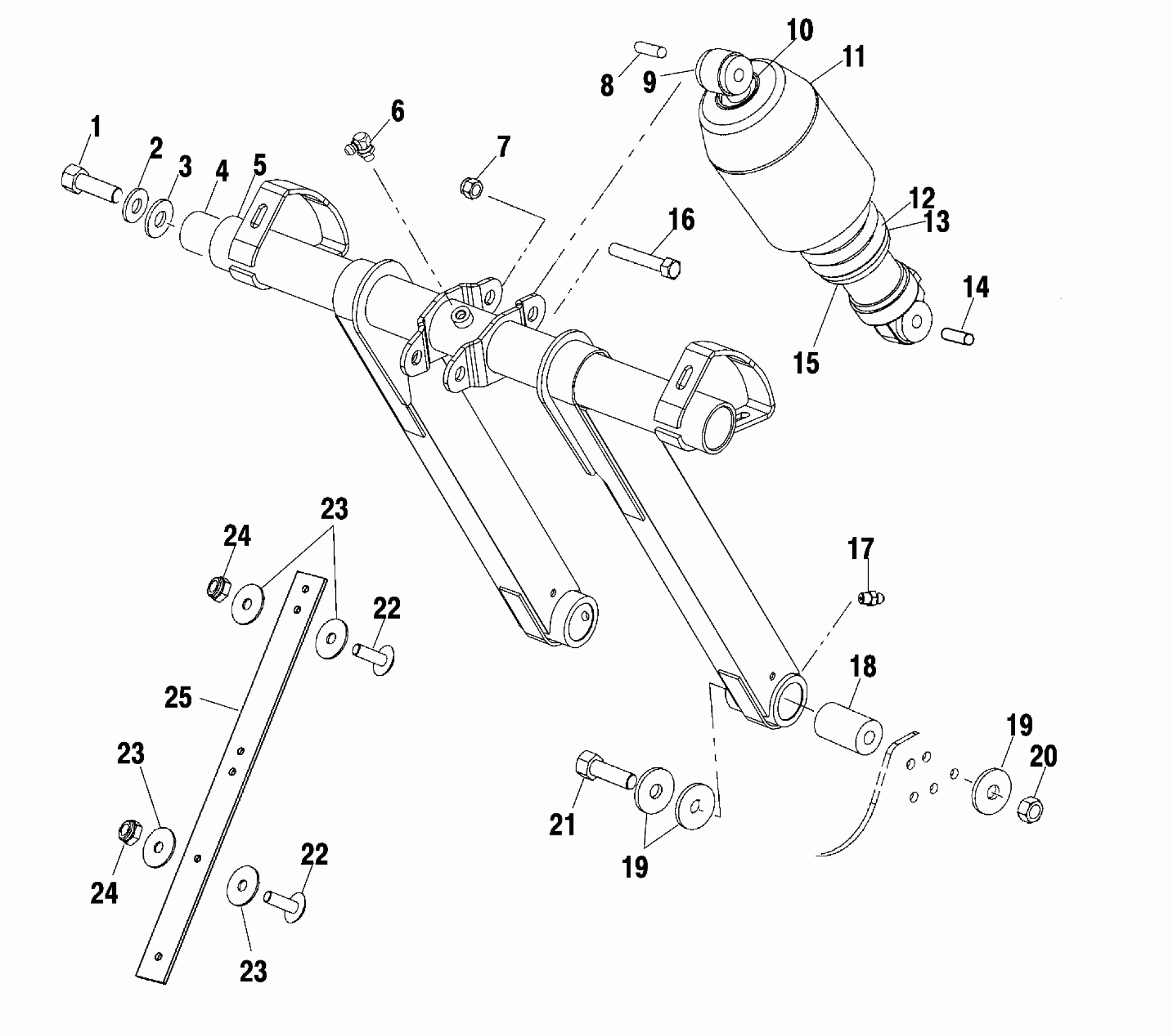

Polaris 500 CLASSIC - S02ND4BS FRONT TORQUE ARM - S02ND4BS (4970417041B011) Diagram

#

Description
Price

1

Bolt

7517435

$14.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

SHAFT-FTA,UPPER

5132067

$59.52

5

WELD-FRONT TORQUE ARM,EDGE,BLK

1541532-067

$186.65

6

FITTING, ZERK(10)

7080510

$5.59

7

NUT-LOCK(10)

7542439

$1.49

8

SLEEVE,.385X.560X1.24

5333905

$15.99

9

SHOCK-FRONT TRACK

7041939

Unavailable

10

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

11

SHIELD-SPRING

5430671

$24.27

12

SPRING,BLACK,COMP.

7041253-067

$95.22

13

RETAINER-SPRING,GAB,PLATED

5245067

$23.99

14

SLEEVE,.385X.560X1.72

5333906

$15.99

15

SPACER,SHOCK RETAINER(10)

5210953

$6.39

16

BOLT(10)

7515415

$1.49

17

FITTING-LUBRICATION 1/4-28

7080424

$4.79

18

SHAFT,.453X.999X1.60

5132387

Unavailable

19

WASHER,.483X1.37X.083

7556156

$4.79

19

WASHER,.483X1.37X.083

7556156

$4.79

20

NUT-7/16-20,NYLOK,Y

7547066

$1.59

21

BOLT-7/16-20X2.75,HXCAP,GR5,Y

7512597

$4.99

22

SCREW ,(10)

7517313

$4.79

22

SCREW ,(10)

7517313

$4.79

23

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

23

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

23

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

24

NUT,NYLOC,(10)

7542344

$3.99

24

NUT,NYLOC,(10)

7542344

$3.99

25

STRAP-LIM,FRT

5412140

$36.41
