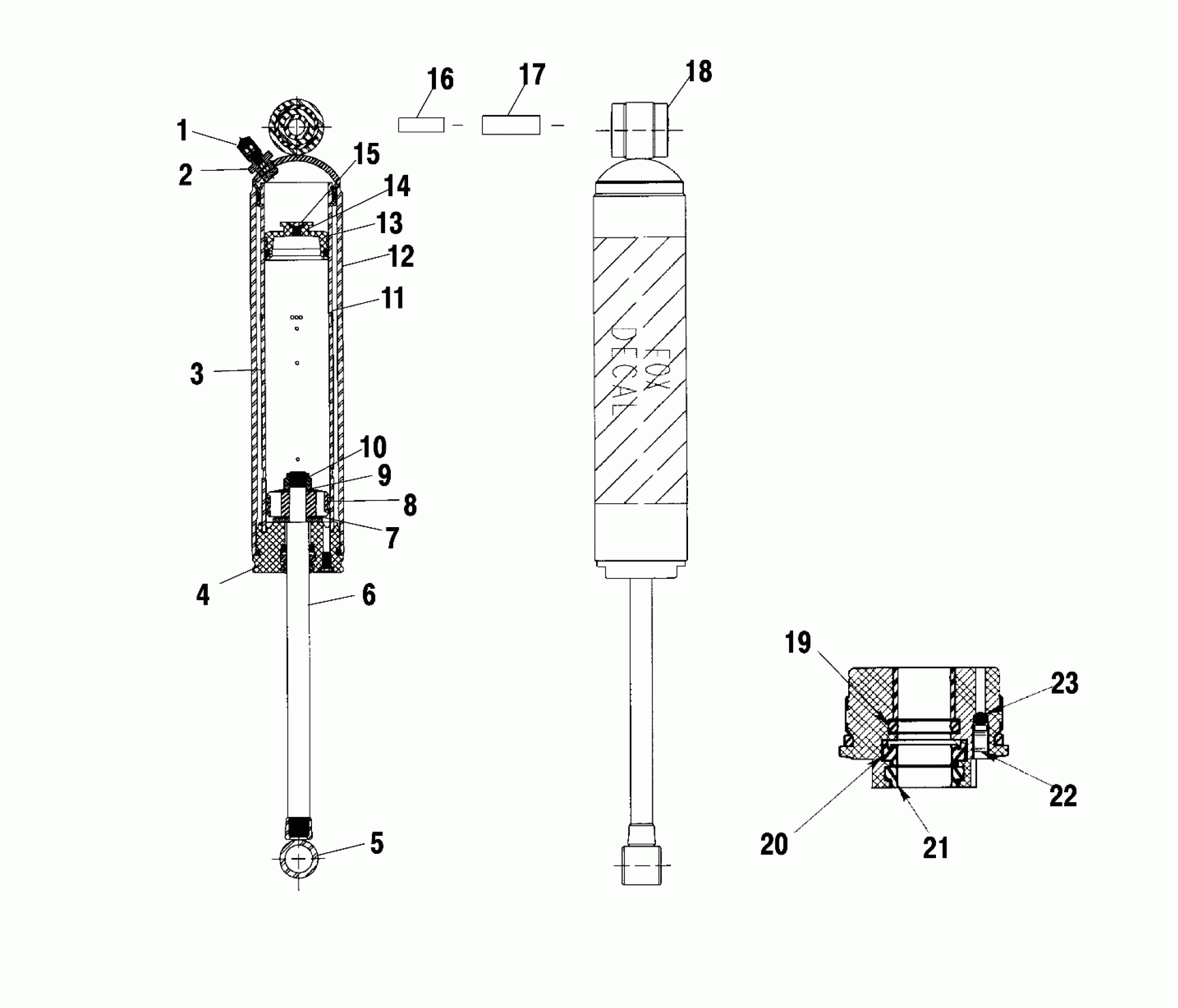

Polaris 500 CLASSIC - S02ND4BS FOX SHOCK - REAR TRACK - S02ND4BS (4970417041B013) Diagram

#

Description
Price

-

SHOCK,R/T,FOX,PPS

7041846

Unavailable

1

CAP,SHRADER VALVE

1500210

Unavailable

2

Screw

1500019

$6.39

2

O-RING,OUTER

1500023

$2.84

2

VALVE-AIR,COMPLETE

1500206

$24.19

3

VALVE,CHECK,NBR DURO A 90

1500306

Unavailable

4

BEARING,W/P.S. GROOVE

1500334

Unavailable

5

EYELET-.88W 1.38TLG 808-05-002

1500302

$49.21

6

SHAFT,.5X8.35 TLG

1500333

Unavailable

7

PLATE,TOP OUT

1500017

$20.22

8

DAMPER,PISTONRING,FOX

1500002

$31.99

9

BUSHING,BACKUP

1500015

$6.76

10

NUT,LOCK

1500016

$12.79

11

BODY,ASM,INNER P.S.

1500331

$205.99

12

BODY,ASM,OUTER P.S.

1500332

$140.79

13

RING,PISTON,FLOATING,FOX

1500006

$19.99

14

Screw

1500018

$5.56

14

O-RING,DRUM OUTER

1500022

Unavailable

14

PISTON-FLOATING

1500187

$26.98

15

SCREW/O-RING ASM.

1500161

Unavailable

16

SLEEVE,.56X.81X1.28

1500311

Unavailable

17

SLEEVE,.38X.56X1.3 TLG Substituted by 5333907

1500327

$15.87

18

BUSHING,.35ILG,.63TLG

1500307

$7.99

19

SEAL,Q-RING .139CS 035-00-206

1500297

Unavailable

20

WIPER INNER Substituted by 1500266 (Inner Wiper)

1500025

$24.27

21

WIPER,CLR,OUTER

1500024

Unavailable

22

Screw

1500070

$6.39

23

BALL, (FOX)

1500071

$6.76
