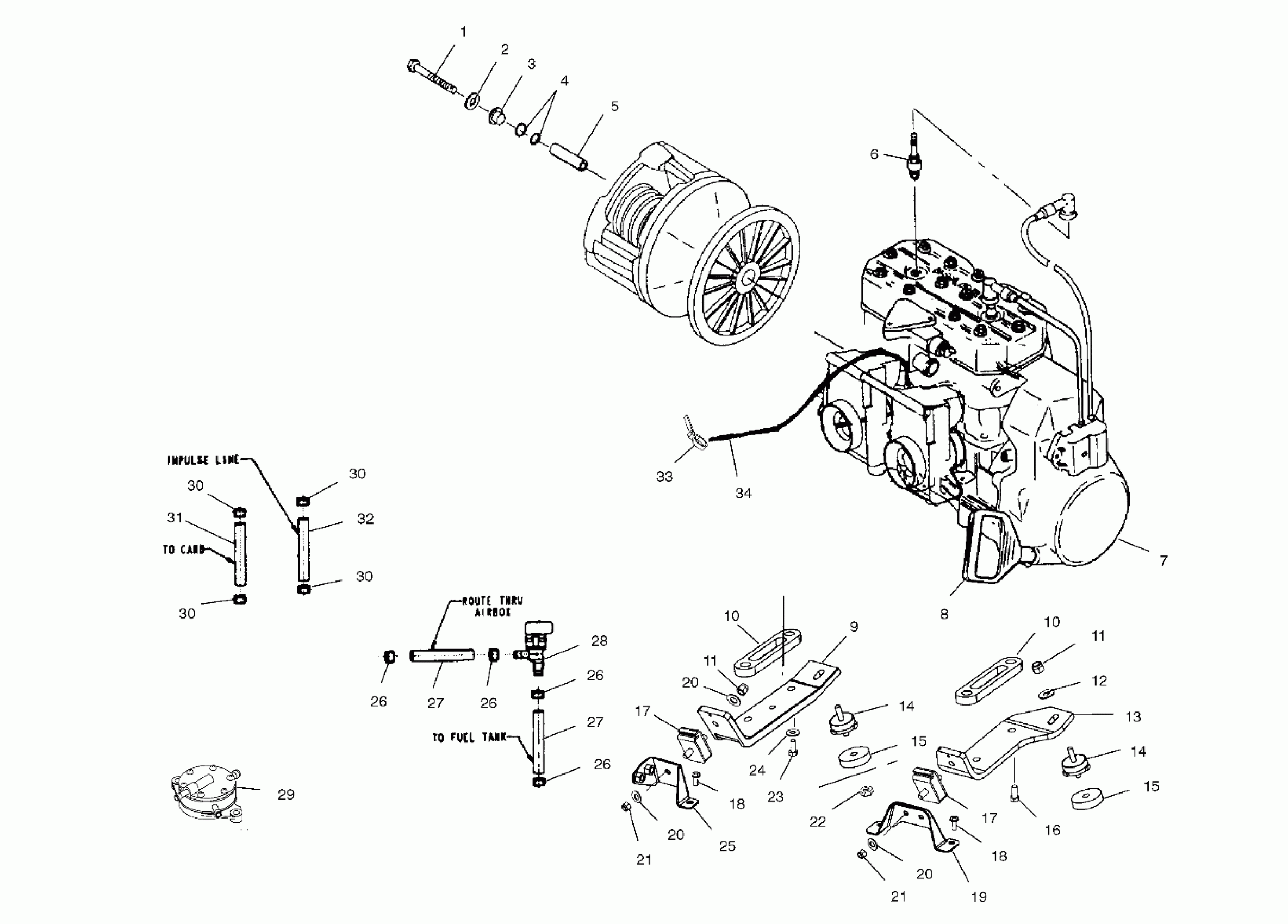

Polaris 500 CLASSIC - S02ND4BS ENGINE MOUNTING - S02ND4BS (4970417041C005) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARKPLUG, RN3C(8)

3070166

$3.99

7

ENG.(S.B.)EC50PL21 (EC50PL212) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is require

3086877

Unavailable

8

HANDLE-RECOIL,BLK

5431499-070

$15.48

9

STRAP-ENGINE MOUNT,500,LH

5245473

$32.15

10

SPACER-ENGINE,500 FUJI,.38

5245021

Unavailable

10

SPACER-ENGINE,500 FUJI,.38

5245021

Unavailable

11

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

11

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

12

WASHER(10)

7555893

$1.49

13

STRAP-ENGINE MOUNT,RH,500 FUJI

5245019

Unavailable

14

MOUNT-ENGINE,3/8-16

3021220

Unavailable

14

MOUNT-ENGINE,3/8-16

3021220

Unavailable

15

SPACER-ENGINE MOUNT .44

5245117

$14.49

15

SPACER-ENGINE MOUNT .44

5245117

$14.49

16

Screw

7517399

$8.99

17

MOUNT-ENGINE,3/8-16,RECT

3021206

$60.70

17

MOUNT-ENGINE,3/8-16,RECT

3021206

$60.70

18

SCR-3/8-16X1-P30-SPEC-Y

7517854

$5.59

18

SCR-3/8-16X1-P30-SPEC-Y

7517854

$5.59

19

BRKT-ENGINE MOUNT,RH,FORMED

5245044

Unavailable

20

WASHER(10)

7555806

$1.49

20

WASHER(10)

7555806

$1.49

20

WASHER(10)

7555806

$1.49

21

NUT,FLEXLOCK,(10)

7547008

$6.39

21

NUT,FLEXLOCK,(10)

7547008

$6.39

22

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

23

BOLT,(10)

7517442

$6.39

24

WASHER LOCK(10)

7553101

$3.99

25

WELD-ENG MOUNT BRKT,LH

1013397

$24.27

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

27

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

28

VALVE-FUEL,PLASTIC 90�,1/4HOSE

7052249

$24.27

29

FUEL PUMP AY

3087012

Unavailable

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

31

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

32

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE,THROT,SINGLE,RACK CARB.

7080770

Unavailable
