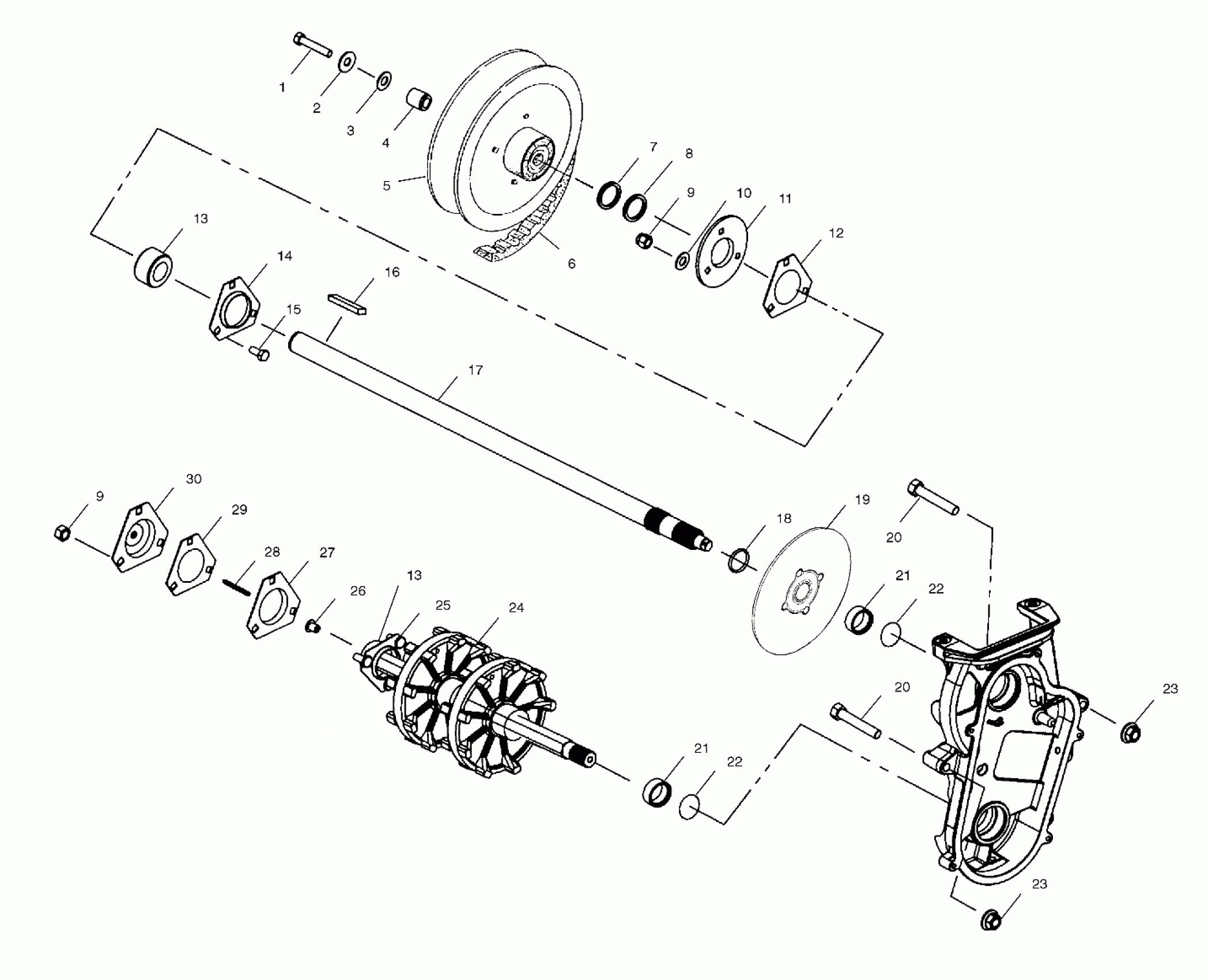

Polaris 500 CLASSIC - S02ND4BS DRIVE TRAIN - S02ND4BS (4970417041B008) Diagram

#

Description
Price

1

BOLT(10)

7515369

$4.79

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER

5020291

Unavailable

5

Asm., Driven Clutch, R8 (See Driven Clutch Pg. C1, Ref. 9)

-------

Unavailable

6

BELT DRIVE(5)

3211078

$109.99

7

BUSHING(10)

7555864

Unavailable

8

WASHER SPECIAL(10)

7556509

Unavailable

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

FITTING,LUB/VEN(10)

7080561

$4.79

11

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

12

GASKET,JACKSHAFT,BLK.

5811095

$2.41

13

BEARING

3514525

$31.99

13

BEARING

3514525

$31.99

14

FLANGETTE

5222751

$16.44

15

BOLT(10)

7512377

$4.79

16

KEY-1/4X3/16X2.75

7721128

$10.39

17

ASM-JACKSHAFT,15 SPL W/M15 BRG (Incl. 15,18)

1332220

$158.73

18

RING, RETAINING(10)

7710422

$3.99

19

BRAKE DISC,SNOW,6385 CR,ASM.

1910403

Unavailable

20

BOLT(10)

7515428

$4.79

20

BOLT(10)

7515428

$4.79

21

SLEEVE, SEAL

5020588

$23.99

21

SLEEVE, SEAL

5020588

$23.99

22

O RING,(10)

5410613

$1.99

22

O RING,(10)

5410613

$1.99

23

NUT(10)

7542423

$3.99

23

NUT(10)

7542423

$3.99

24

ASM-DRIVESHAFT,EDG,1.06,2 DR (Incl. 13,25,26)

1590311

Unavailable

25

ASM.-FLANGETTE,W/SCREWS

1012945

$114.99

26

BUSHING METAL SPEEDO

3280019

$11.99

27

FLANGETTE-OFFSET,W/HOLE

5243529

$13.75

28

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

29

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

30

ADAPTER,DRIVE,W/ZERK

3280116

$101.17
