Description

Price

1

PAD-BATTERY

5810290

$7.27

2

STRAP ASM,BATT.HOLD.

2450020

$29.03

3

TUBE,BATTERY VENT

5432077

Unavailable

4

Battery

4140006

$99.99

5

CABLE,11",BATT.,BLK.

4010114

Unavailable

6

BOLT,BATT,KIT(SHORT)

2200361

$3.99

7

CABLE,SOL/STRT,BLK,16.5"

4010107

Unavailable

8

Switch, Magnetic (See Starting Motor Pg. D1, Ref. 19)

-------

Unavailable

9

INSULATOR-CABLE

5410346

$6.39

10

CABLE ASM,SOLENOID

2460393

$36.41

11

WIRE,JUMPER,SOL/BATT,8.5"

4010108

Unavailable

12

CIRCUIT BREAKER

2434008

Unavailable

13

NUT(10)

7541925

$1.49

13

NUT(10)

7541925

$1.49

14

NUT-LOCK(10)

7542122

$1.49

15

WASHER, FLAT(10)

7558201

$5.79

16

WELD-BATTERY BOX,EDGE,BLK

1013679-067

Unavailable

17

RIVET, BLIND(50)

7621467

$1.49

18

WELD-STUD PLATE,BATTERY BOX

1013385

Unavailable

19

SCREW(10)

7511930

$2.39

20

Washer, Spring (See Starting Motor Pg. D1, Ref. 18)

-------

Unavailable

21

Nut (See Starting Motor Pg. D1, Ref. 17)

-------

Unavailable

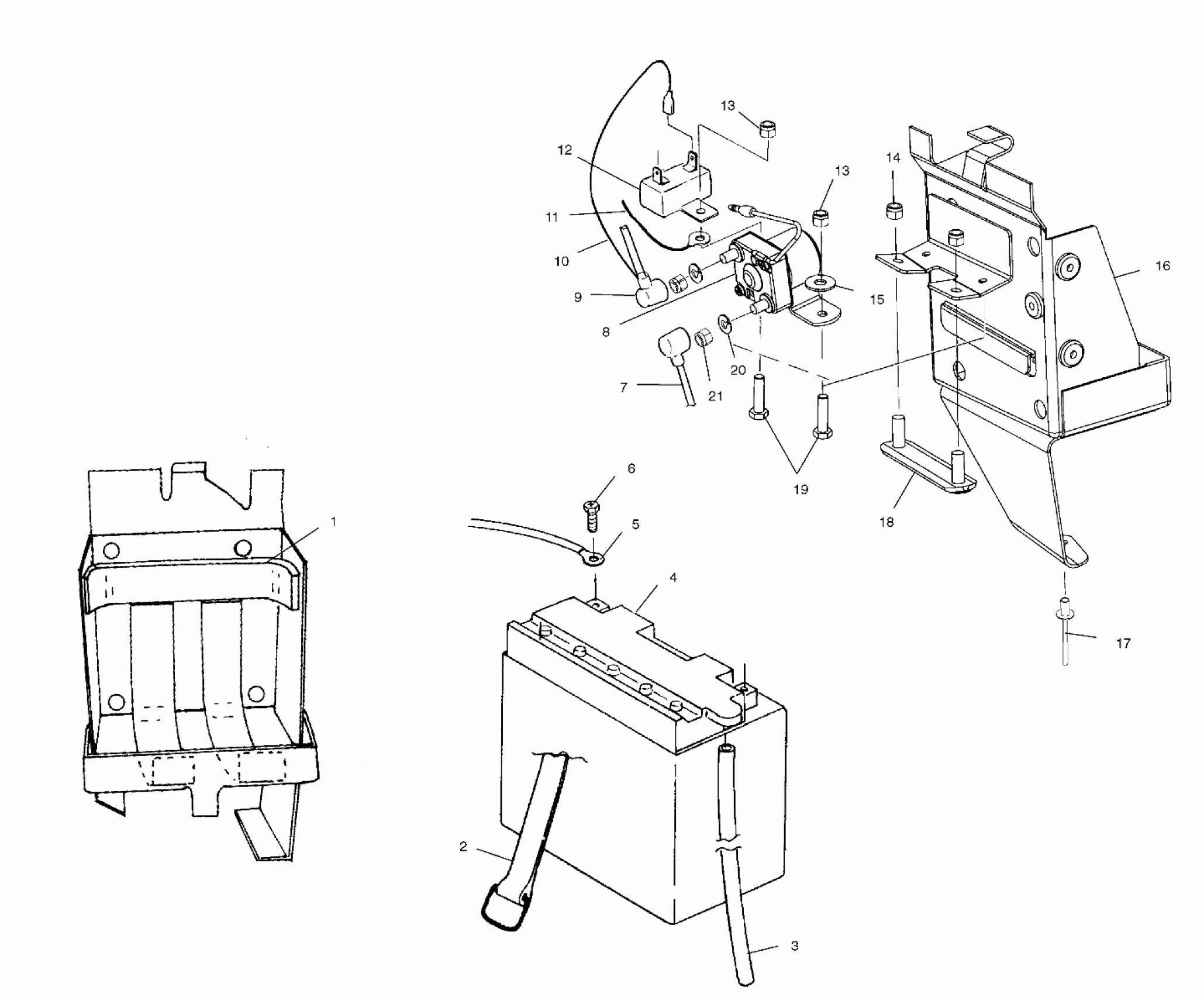

Polaris 500 CLASSIC - S02ND4BS BATTERY BOX - S02ND4BS (4970417041C002) Diagram

PAD-BATTERY

STRAP ASM,BATT.HOLD.

TUBE,BATTERY VENT

Battery

CABLE,11",BATT.,BLK.

BOLT,BATT,KIT(SHORT)

CABLE,SOL/STRT,BLK,16.5"

Switch, Magnetic (See Starting Motor Pg. D1, Ref. 19)

INSULATOR-CABLE

CABLE ASM,SOLENOID

WIRE,JUMPER,SOL/BATT,8.5"

CIRCUIT BREAKER

NUT(10)

NUT(10)

NUT-LOCK(10)

WASHER, FLAT(10)

WELD-BATTERY BOX,EDGE,BLK

RIVET, BLIND(50)

WELD-STUD PLATE,BATTERY BOX

SCREW(10)

Washer, Spring (See Starting Motor Pg. D1, Ref. 18)

Nut (See Starting Motor Pg. D1, Ref. 17)
