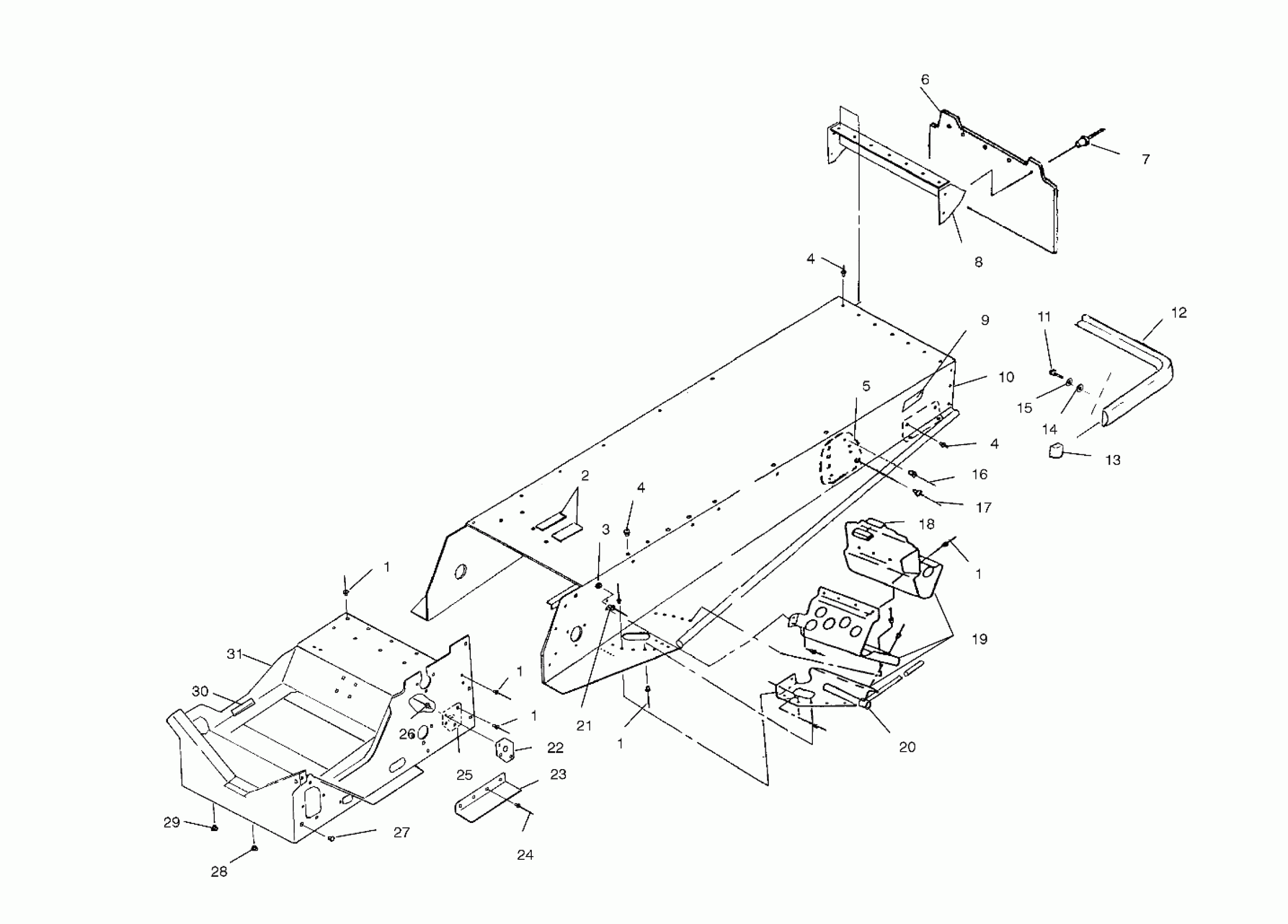

Polaris 500 CLASSIC - S00SD4BS TUNNEL - S00SD4BS (4953925392a005) Diagram

#

Description
Price

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

DECAL,TOP,TUNNEL STRIP

7073978

Unavailable

3

SNAP-MALE(10)

7080227

Unavailable

4

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

4

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

4

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

5

PAD,LH,RR SUSP(X12),BLK

1012431-067

$19.03

5

PAD,RH,RR SUSP(X12),BLK

1012432-067

$18.23

6

FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106

5432149

Unavailable

7

POP RIVET(50)

7621418

$1.49

8

PANEL,TUNNELBACK

5241053-067

$308.99

9

REFLECTOR RED

2670070

$9.91

10

TUNNEL,X-12,L/C,BLK (See Footnote) (Incl. 4-5,8,24 and Heat Exchangers)

1012910-067

$404.24

11

BOLT(10)

7512240

$3.99

12

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

13

CAP,BUMPER

5431995-070

Unavailable

14

WASHER(10)

7558301

$1.49

15

LOCK WASHER(10)

7552801

$1.59

16

RIVET ,(50)

7661837

$1.49

17

RIVET(50)

7661846

$1.99

18

EXTRUSION,CLUTCHGUARD

5521238

$6.46

19

FOOTREST ASM,LH,BLK.

1012681

Unavailable

19

FOOTREST ASM,RH,BLK.

1012682

$95.24

20

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

20

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

21

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

22

PLATE,F.SUSP,OUT,X-12,BLK

5211746-067

$13.39

23

GUARD,ADAPTER GUIDE

5222857

$12.94

24

RIVET(50)

7621452

$1.49

25

MOUNT,RH,F.SUSP.BLK.

1012270-067

$66.99

25

MOUNT,LH,F.SUSP.BLK.

1012269-067

$66.99

26

RIVET(50) Substituted by 7661130

7661643

Unavailable

27

PLUG, HOLE(10)

7080416

$5.65

28

PLUG-HOLE

7080398

$4.84

29

BUSHING,OPEN/CLOSE(10)

7080399

$2.39

30

DESC NOT_AVAILABLE

8360012-06

Unavailable

31

BULKHEAD,STD,BLK

1012888-067

$649.99
