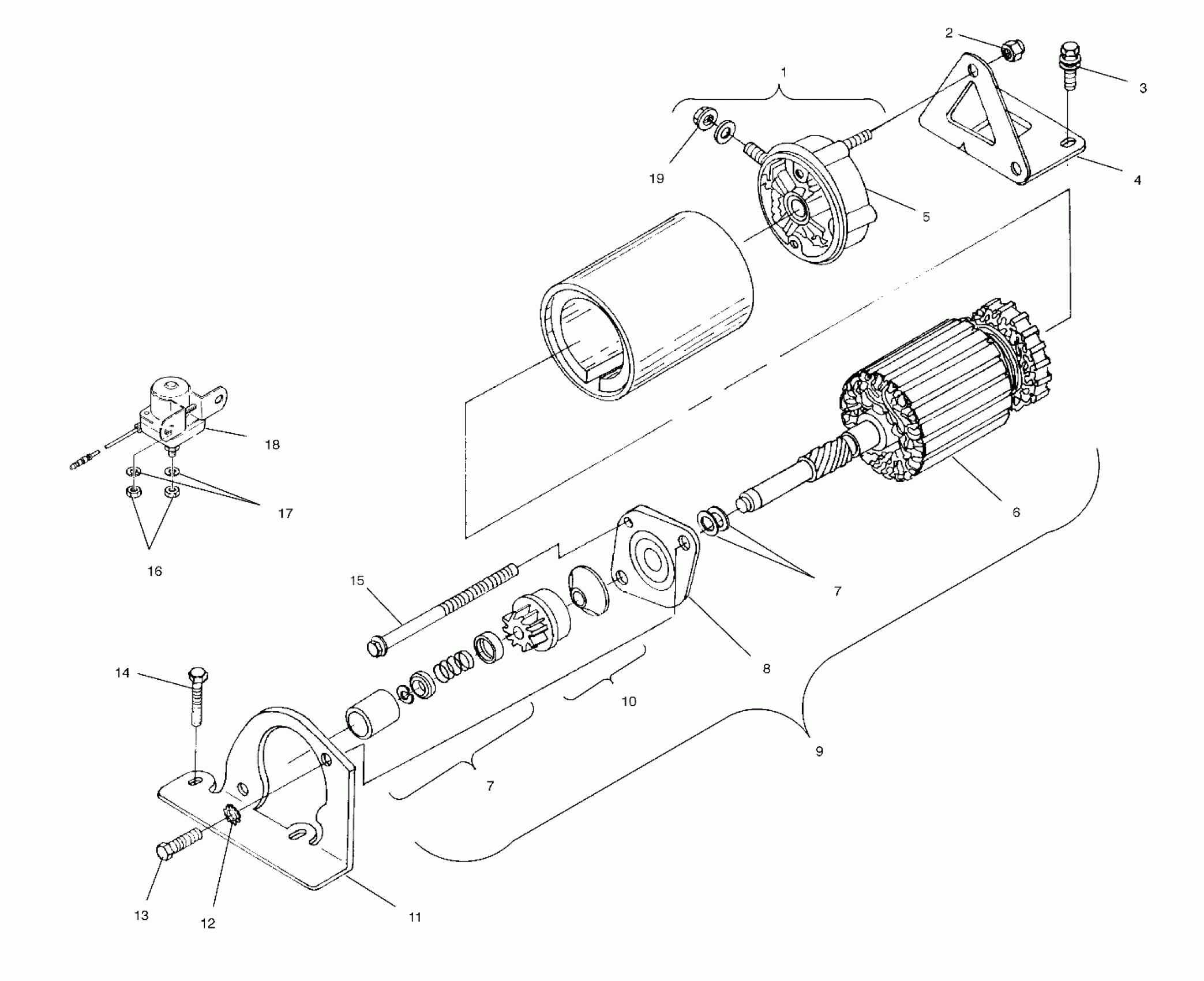

Polaris 500 CLASSIC - S00SD4BS STARTING MOTOR - S00SD4BS (4953925392d001) Diagram

#

Description
Price

1

KIT,COMMUTATOR CAP ASM. (Incl. 5)

2200758

$82.39

2

NUT(10)

7542153

$1.59

3

SCREW(10)

7516815

$6.39

4

BRKT,R.STARTER

5240956

$16.99

5

KIT,BRUSH&SPRING

2200759

$59.99

5

ASM., BRUSH & SCREW

-------

Unavailable

5

Nut

-------

Unavailable

5

WASHER, INSULATION

-------

Unavailable

5

ASM., BRUSH

-------

Unavailable

5

BUSHING, INSULATION

-------

Unavailable

6

KIT,ARMATURE ASM.

2200756

$169.99

7

KIT,DRIVE HDWE.

2200755

Unavailable

7

PINION, STOP

-------

Unavailable

7

SPACER

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

7

COVER, DUST

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

7

KIT,DRIVE HDWE.

2200755

Unavailable

7

PINION, STOP

-------

Unavailable

7

SPACER

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

7

COVER, DUST

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

8

KIT,DRIVECAP ASM.

2200757

$59.99

9

MOTOR,STARTER,(DOMESTIC)

4170006

Unavailable

10

KIT,DRIVE ASM.

2200754

Unavailable

10

PLATE, DRIVE

-------

Unavailable

10

PINION

-------

Unavailable

11

BRKT,STARTER,FR.(2 CYL)

5241271

$32.37

12

WASHER(10)

7552603

$1.49

13

SCREW(10)

7512492

$1.49

14

SCREW & WASHER ASM.(10)

7516730

$6.39

15

KIT,SCREW

2200753

$29.99

15

BOLT, THRU

-------

Unavailable

16

NUT(10)

3082939

Unavailable

17

WASHER SPRING(10)

3080077

$2.39

18

SWITCH-MAGNETIC Substituted by 3085521 (Incl. 16,17)

3083211

Unavailable

19

NUT, LOCK(10)

7542103

$5.59
