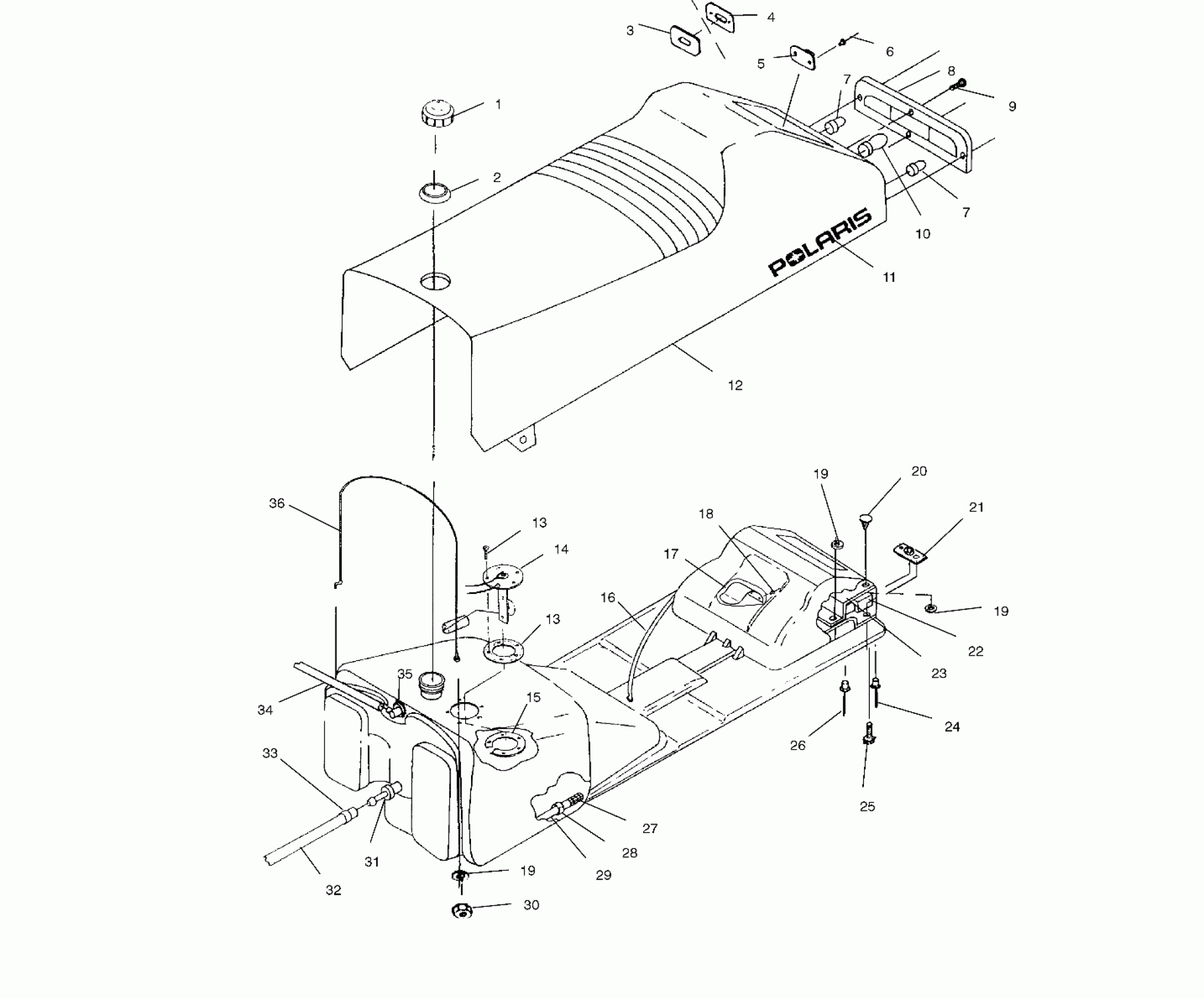

Polaris 500 CLASSIC - S00SD4BS SEAT and GAS TANK - S00SD4BS (4953925392a006) Diagram

#

Description
Price

1

CAP,FUELTANK,W/GASKET

2511226

Unavailable

2

GROMMET,FUELTANK

5410842

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

LENS,TAILLIGHT

5430423

Unavailable

9

SCREW(10)

7511840

Unavailable

10

Bulb, Brakelight

4030045

Unavailable

11

DECAL"POLARIS",SEAT

7076381

Unavailable

12

COVER ASM,SEAT,LONG

2682412

Unavailable

12

ASM-SEAT CUSHION (Incl. 3-10,13-31,32)

2682502

Unavailable

13

HDWE.PKG,SEND.UNIT

2410012

Unavailable

13

HDWE.PKG,SEND.UNIT

2410012

Unavailable

14

SENDER,FUEL-LEVEL,W/GASKET

3280227

Unavailable

15

MTG.FLANGE,FUELTANK Substituted by 5244067

5211308

Unavailable

16

HARNESS,TAILLIGHT

2460398

Unavailable

17

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

18

RIVET(50)

7621472

$1.49

19

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

19

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

19

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

20

CLIP,DART,(10)

7670097

Unavailable

21

NUT,RETAINER-WELD.(10)

7542147

$17.59

22

HOUSING-TAILLIGHT

5433341

Unavailable

23

COVER,T/L PROTECTOR

5431436

$21.43

24

RIVET(50)

7621301

$3.99

25

SCREW(10)

7512242

$2.39

26

RIVET(50)

7621464

$3.99

27

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

28

RING, COMPRESSION(10)

7080402

$1.60

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

30

NUT(10)

7541925

$1.49

31

FITTING - OUTLET(10)

7052023

$24.99

32

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

33

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

34

FUELLINE,3MMX7MM

8450061-600

Unavailable

35

FITTING,90 DEG,1/8,(10)

7052095

$4.79

36

CABLE,TANK,RETENTION

7080559

Unavailable
