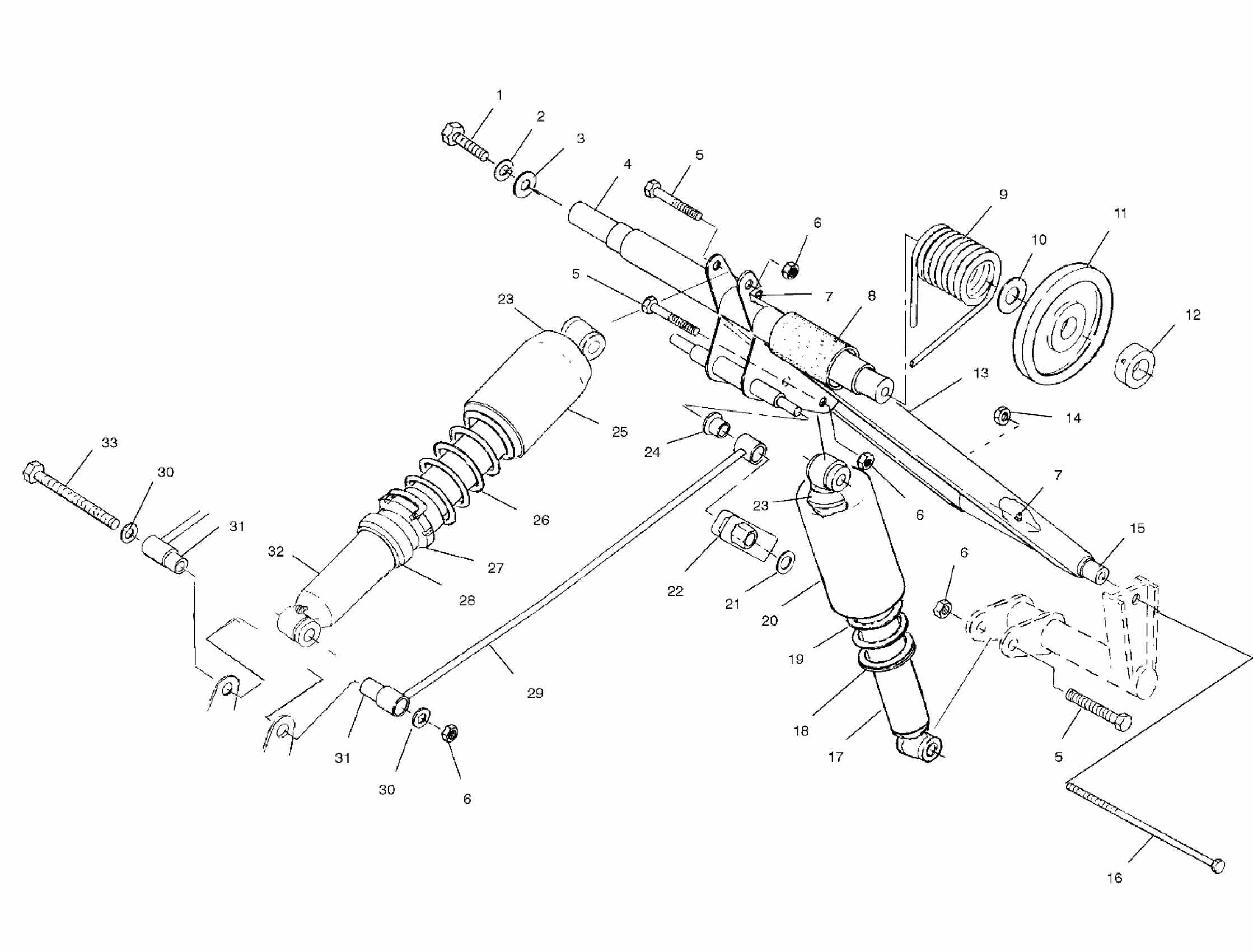

Polaris 500 CLASSIC - S00SD4BS REAR TORQUE ARM - S00SD4BS (4953925392b014) Diagram

#

Description
Price

1

SCR,7/16,14X1.5,HX

7517436

Unavailable

2

WASHER-LOCK, 7/16-B

7552614

$1.59

3

WASHER ,(10)

7555984

$2.39

4

SHAFT,RTA,UPPER

5020814

Unavailable

5

BOLT Substituted by 7515491

7515433

$1.59

5

BOLT Substituted by 7515491

7515433

$1.59

5

BOLT Substituted by 7515491

7515433

$1.59

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

ZERK,FITTING,THREADED(10)

7080433

$1.49

7

ZERK,FITTING,THREADED(10)

7080433

$1.49

8

SLEEVE,TORSION SPRING

5431923

$6.39

9

SPRING,RH,TORSION,BLK. (.406 Dia.) (Std.)

7041395-067

Unavailable

9

SPRING,LH,TORS,.421,BLK. (.421 Dia.) (Firm)(Optional)

7041406-067

$95.19

9

SPRING,RH,TORS,.421,BLK. (.421 Dia.) (Firm)(Optional)

7041407-067

Unavailable

9

SPRING,LH,TORSION,BLK. (.406 Dia.) (Std.)

7041394-067

Unavailable

10

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

11

RET.RING-TRUARC

7718407

$4.79

11

BEARING

3514303

$11.99

11

Wheel, Carrier

1543023

Unavailable

12

COLLAR,BRG LOCK

5010404

Unavailable

12

SCREW-SET(10)

7512257

$3.99

13

ARM,RR TORQUE(XTRA 12),BLK

1541029-067

Unavailable

14

NUT,FLEX LOC(10)

7542507

$3.99

15

Shaft

5020898

Unavailable

16

Screw

7517248

$13.19

17

SHOCK,RR.TRK,X12

7041587

Unavailable

18

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

19

SPRING,COMPRESSION,BLK.

7041561-067

$133.99

20

SHIELD-SPRING

5430671

$24.27

21

CLIP-PUSH ON

7080394

$2.39

22

ROLLER,SPRING,ADJ.

5431909

$5.75

23

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

23

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

24

BUSHING, NYLON

3573910

Unavailable

25

SHIELD,SPRING

5410874

$20.22

26

SPRING,R.SUSP,BLK,LXC

7041351-067

Unavailable

27

RING,SPRING PRELOAD ADJ.

5431734

$52.60

28

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

29

ROD, SHOCK

1541014-067

$92.99

30

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

30

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

31

Spacer

5333028

$1.59

31

Spacer

5333028

$1.59

32

SHOCK,F.TRK,X12,ADJ

7041586

Unavailable

33

SCREW,(10)

7517378

Unavailable
