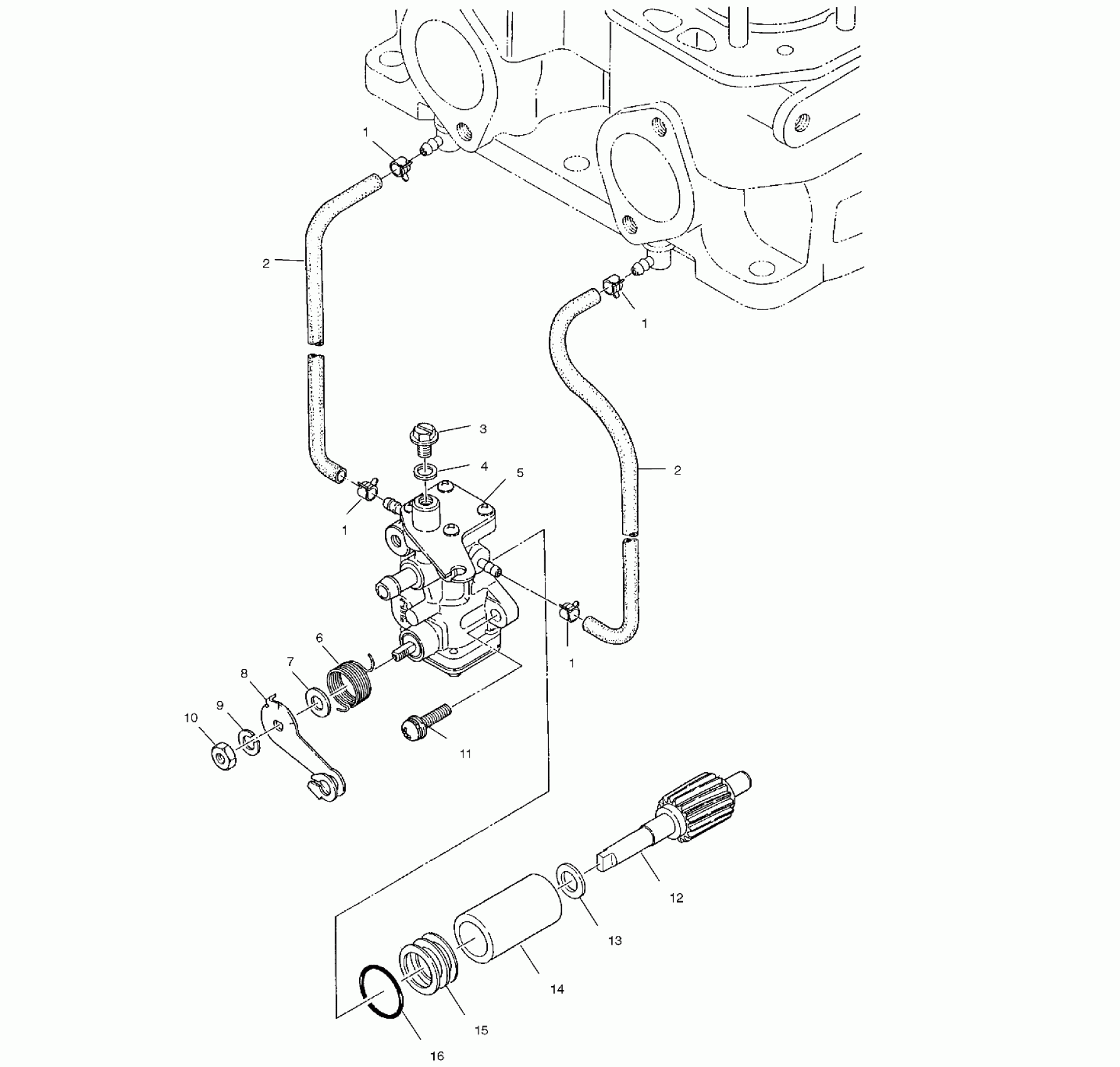

Polaris 500 CLASSIC - S00SD4BS OIL PUMP - S00SD4BS (4953925392c012) Diagram

#

Description
Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

2

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

3

SCREW-AIR VENT

3083125

Unavailable

4

PACKING(10)

3083126

$4.03

5

PUMP, OIL (Incl. 3-10,16)

3083964

Unavailable

6

SPRING-RETURN

3083123

Unavailable

7

COLLAR, CAMSHAFT(10)

3083445

$2.39

8

LEVER, CONTROL

3083965

Unavailable

9

WASHER-SPRING(10)

3083121

$299.99

10

NUT(10)

3083120

$3.19

11

SCREW&WASHER,(10)

3083783

$2.39

12

GEAR,SMALL,OIL PUMP

3083131

$89.99

13

SPACER

3083130

$1.59

14

BUSHING(OIL PUMP)

3083353

$31.99

15

SPACER #3 (.6mm)

3083673

Unavailable

15

SPACER #2 (.3mm)

3083672

Unavailable

15

SPACER #1 (.15mm)

3083671

Unavailable

16

O RING

3083127

Unavailable
