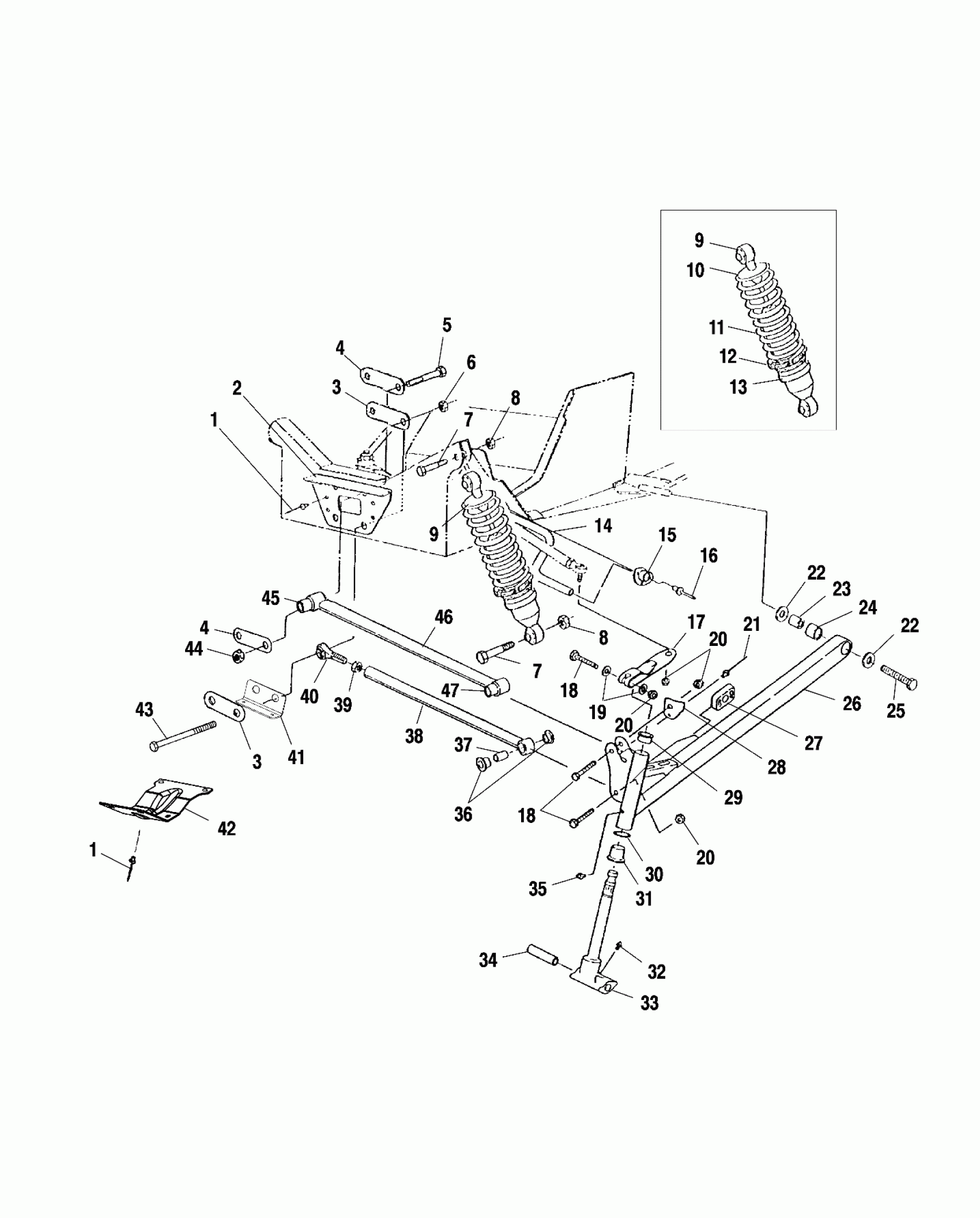

Polaris 500 CLASSIC - S00SD4BS FRONT SUSPENSION - S00SD4BS (4953925392b001) Diagram

#

Description
Price

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

BRACE,FR.BULKHEAD

5242117

$16.47

3

STRAP,SPACER BOTTOM

5211345

$12.99

3

STRAP,SPACER BOTTOM

5211345

$12.99

4

STRAP,SPACER TOP

5211344

$7.27

4

STRAP,SPACER TOP

5211344

$7.27

5

BOLT(10)

7512582

$8.79

6

NUT FLEX,(10)

7542703

Unavailable

7

BOLT(10)

7515415

$1.49

7

BOLT(10)

7515415

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

9

SHOCK-GAS IFS

7041866

Unavailable

9

SHOCK-GAS IFS

7041866

Unavailable

10

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

11

SPRING,.306 COMP(LT),BLK.

7041405-067

Unavailable

12

RING,SPRING PRELOAD ADJ.

5431734

$52.60

13

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

14

BAR,SWAY,9/16(X-12)BLK

5224749-067

Unavailable

15

BUSHING,SWAY BAR

5432412

$15.99

16

RIVET(50)

7621433

$1.49

17

ARM,STRG,BLK

5241560-067

Unavailable

18

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

18

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

19

WSHR-.813X.406X.105-Y

7555832

$2.39

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

21

RIVET(50) Substituted by 7661130

7661643

Unavailable

22

WASHER(10)

7555721

$1.49

22

WASHER(10)

7555721

$1.49

23

TUBE, BUSHING

5010310

$9.70

24

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

25

BOLT(10)

7512557

$7.60

26

ARM ASM,TRLG,LH Substituted by 1822506-067 (Incl. 23,24)

1822506

$344.99

26

ARM ASM,TRLG,RH Substituted by 1822507-067 (Incl. 23,24)

1822507

Unavailable

27

SLIDE,SWAYBAR,9/16

5432674

Unavailable

28

STOP,LH,STRG,BLK.

5241569-067

$7.27

28

STOP,RH,STRG,BLK.

5241570-067

$7.27

29

BUSHING-FLANGE

3573909

$2.39

30

WASHER SPECIAL(10)

7556509

$1.59

31

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

32

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

33

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

34

BUSHING,PIVOT,(10)

5010158

$19.99

35

ZERK,FITTING,THREADED(10)

7080433

$1.49

36

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

37

BUSHING-RADIUS ROD,(10)

5010127

$7.99

38

ROD,RAD,LOWER,BLK.

1822383-067

Unavailable

39

NUT-JAM(10)

7542711

$2.39

40

RODEND,1/2,W/LINER,1.05 WIDE Substituted by 7061052

7061027

$48.56

41

BRKT,RAD.ROD,BTM.

5242578

$44.99

42

Brace, Pan, Lower (See Nosepan Pg. A7, Ref. 17)

-------

Unavailable

43

BOLT(10)

7512684

Unavailable

44

NUT, LOCK,(10)

7542503

$10.39

45

BUSHING,PIVOT,7/16

5411095

$15.99

46

ROD,RAD,UPPER,FIXED

1822510

$38.89

47

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99
