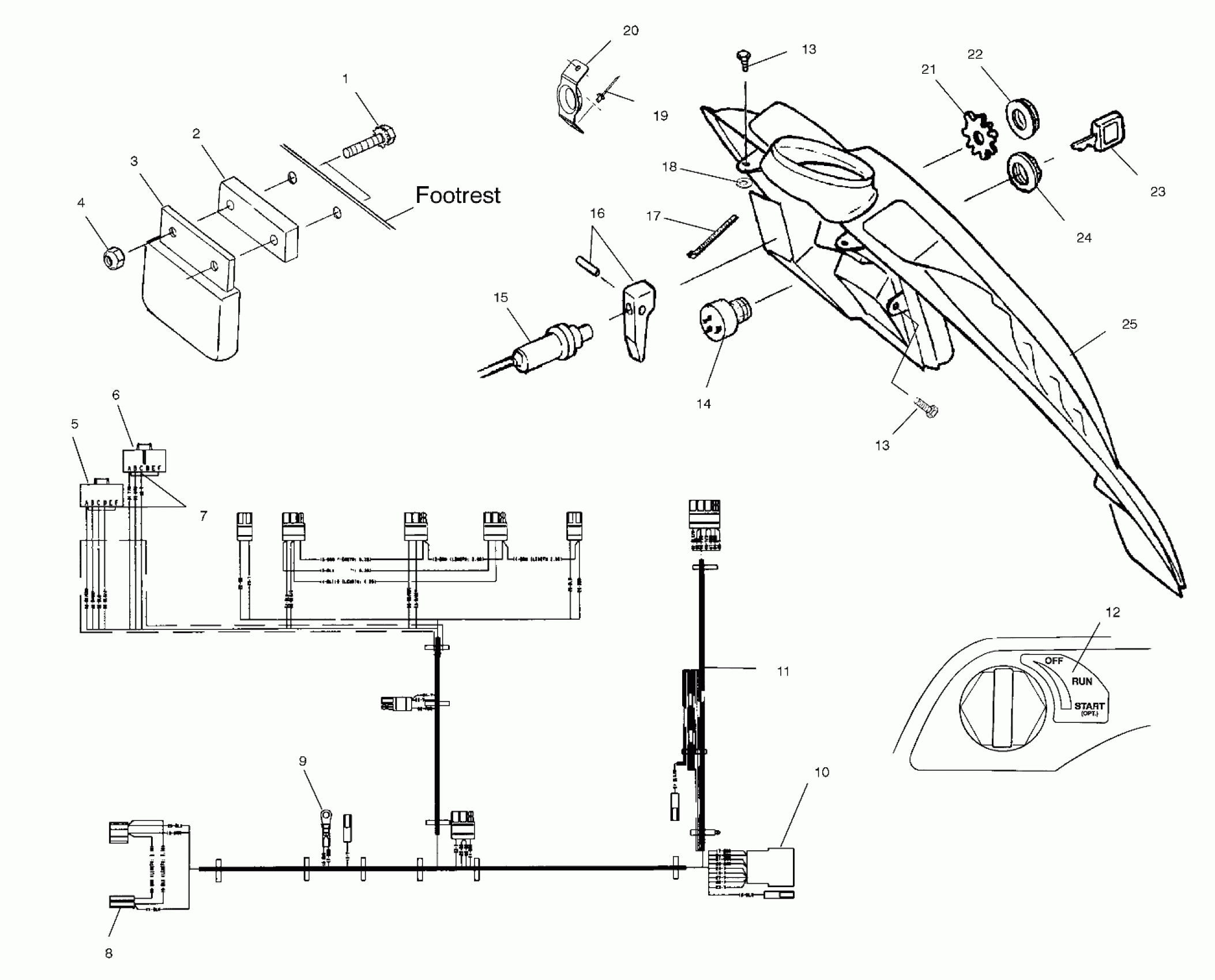

Polaris 500 CLASSIC - S00SD4BS CONSOLE - S00SD4BS (4953925392a012) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,14 VAC.LR-9

4060122

Unavailable

4

NUT(10)

7541925

$1.49

5

HOUSING-CONNECTOR,PAC#12064860

4010194

$15.99

6

HOUSING-CONNECTOR,PAC#12186213

4010193

$8.79

7

SOCKET-PACKARD#12047767

4010192

Unavailable

8

HOUSING

4020063

$3.19

9

Terminal, Ring

4020092

Unavailable

10

Housing w/Receptacle

4020057

$3.51

11

HARNESS-MAIN,GEN 2 COMMON

2460733

$206.39

12

DECAL,CONSOLE,IGNITION

7077367

Unavailable

13

SCREW(10)

7515199

$1.49

13

SCREW(10)

7515199

$1.49

14

KIT,IGN.SWITCH

2200358

$76.89

15

Cable, Choke Control (Incl. 16,22)

7080290

$105.22

16

KIT-CHOKE CONTROL (Incl. Pin)

2200188

$24.27

17

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

18

WASHER,NYLON

7555932

$2.39

19

RIVET, POP(50)

7621330

$1.49

20

GUIDE-RECOIL

5243049

$9.70

21

WASHER-LOCK(10)

7571610

$3.99

22

Nut

7080229

$19.99

23

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

24

NUT,IGNITION

7547035

$8.79

25

CONSOLE,HYB.W/REV,BLK.

5432993

Unavailable
