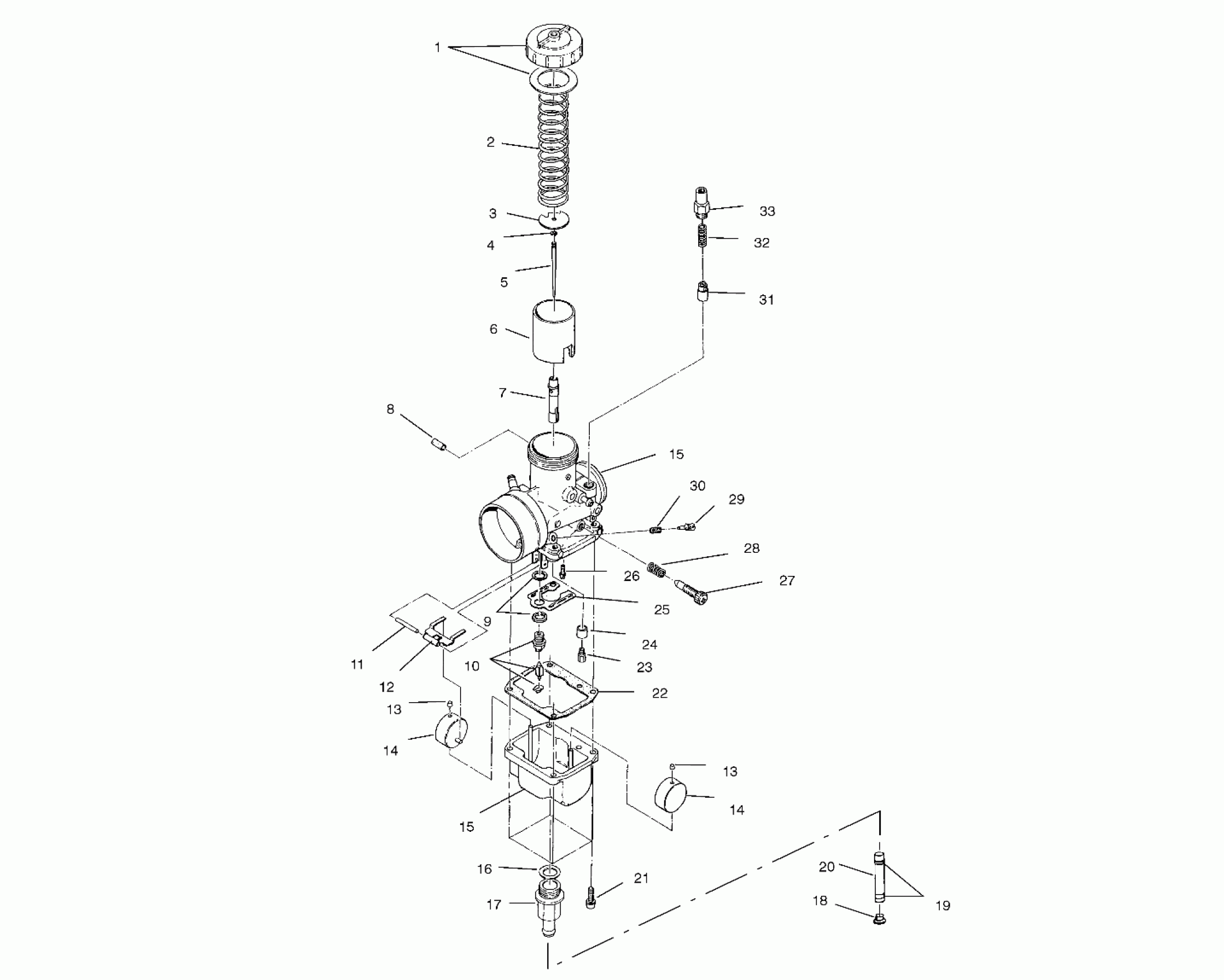

Polaris 500 CLASSIC - S00SD4BS CARBURETOR - S00SD4BS (4953925392c011) Diagram

#

Description
Price

1

TOP ASM (Incl. Gasket)

3130184

$32.37

2

SPRING,THROTTLE

3130444

Unavailable

3

PLATE, THROTTLE

3130054

$6.46

4

E-RING,(10)

3130508

$6.46

5

NEEDLE,JET,(6F9-3) (6F9-3)

3130378

Unavailable

6

VALVE, THROTTLE,2.5 (2.5)

3130454

Unavailable

7

NEEDLE JET,(P-0) Substituted by 3130655 (P-6) (247)

3130733

Unavailable

8

CAP

3130479

$14.56

9

WASHER(10)

3130047

$4.84

10

VALVE,NEEDLE Substituted by 3130643 (1.5)

3130942

$56.65

11

PIN, FLOAT

3130361

$8.89

12

ARM,FLOAT

3130048

Unavailable

13

CAP,(10)

3130237

$4.03

13

CAP,(10)

3130237

$4.03

14

FLOAT ASM

3130021

$40.46

14

FLOAT ASM

3130021

$40.46

15

CARBURETOR Substituted by 3130739 (Incl. 2-17,21-33)

3130941

Unavailable

15

CARBURETOR Substituted by 3130739 (Incl. 2-17,21-33)

3130941

Unavailable

16

O RING

3130239

Unavailable

17

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

18

PLUG,TRAP

5431893

$12.94

19

HOSE CLAMP, RED

7080003

$1.49

20

DESC NOT_AVAILABLE

8350017-08

Unavailable

21

SCREW

3130056

$3.19

22

GASKET,FLOAT CHAMBER

3130236

$12.13

23

JET,MAIN,HX.HD#350(10) (#350)

3130138

$7.27

24

RING,CARB

3130232

Unavailable

25

PLATE

3130243

Unavailable

26

JET,PILOT,#45(10) (#45)

3130068

$8.89

27

SCREW,THROTTLE STOP

3130009

$19.99

28

SPRING,THROTTLE ADJ.

3130010

$8.89

29

SCREW,AIR

3130011

$19.99

30

SPRING,AIR ADJUST

3130012

$8.89

31

PLUNGER ASM, STARTER

3130328

$32.37

32

SPRING,PLUNGER

3130006

$8.89

33

HOLDER,GUIDE

3130199

$28.32
