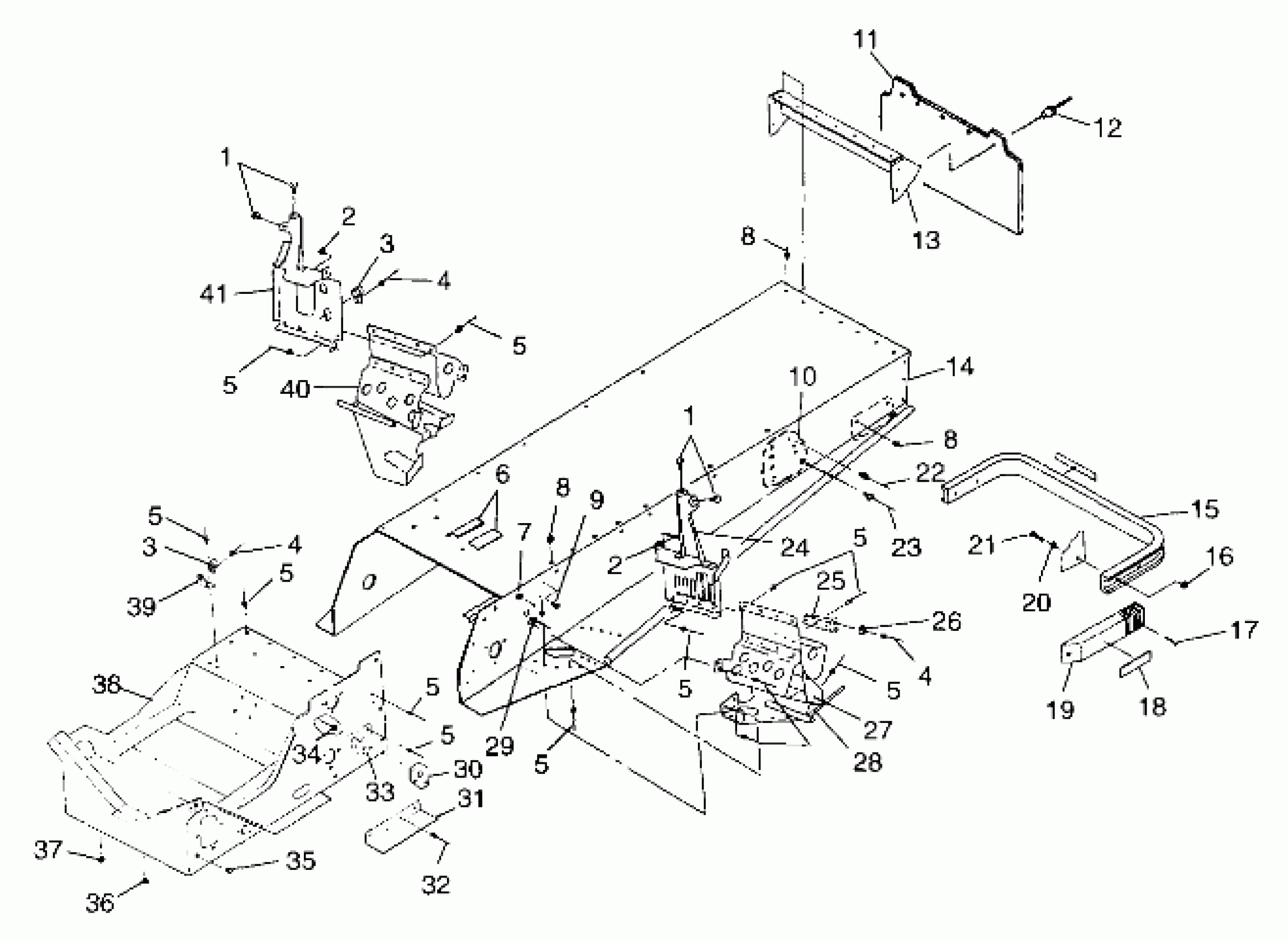

Polaris 500 CLASSIC - 099ED4BS TUNNEL - 099ED4BS (4948304830a005) Diagram

#

Description
Price

1

BUMPER,HOOD

5410768

$2.95

1

BUMPER,HOOD

5410768

$2.95

2

SCREW(10)

7512057

$2.38

2

SCREW(10)

7512057

$2.38

3

GUIDE, RECOIL

5431385

$10.51

3

GUIDE, RECOIL

5431385

$10.51

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

DECAL,TOP,TUNNEL STRIP

7073978

Unavailable

7

SNAP-MALE(10)

7080227

Unavailable

8

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

8

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

8

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

9

NUT,SERT(10)

7541938

Unavailable

10

PAD,LH,RR SUSP(X12),BLK

1012431-067

$19.03

10

PAD,RH,RR SUSP(X12),BLK

1012432-067

$18.23

11

FLAP,SNOW

5432033

Unavailable

12

POP RIVET(50)

7621418

$1.49

13

PANEL,TUNNELBACK

5241053-067

$308.99

14

TUNNEL,LIQ.,BLK. (See Footnote) (Incl. 8-10,13,32 and Heat Exchangers)

1012343-067

Unavailable

15

BUMPER,REAR,STD.

5224674-067

Unavailable

16

NUT-LOCK(10)

7542122

$1.49

17

SCREW(10)

7511863

$1.99

18

REFLECTOR RED

2670070

$9.91

19

CAP, BUMPER, BLK.

5430930-070

Unavailable

20

WASHER(10)

7558301

$1.49

21

BOLT(10)

7512240

$3.99

22

RIVET,SEMI-TUBE,(50)

7661841

$1.49

23

RIVET(50)

7661846

$1.99

24

MT,CONSOLE,LH

1011951-067

$35.51

25

SUPPORT,BUMPERSIDE,BLK.

5240294-067

Unavailable

26

STOP,SIDEPANEL BUMPER

5411172

Unavailable

27

FOOTREST ASM,LH

1012544

Unavailable

28

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

28

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

29

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

30

PLATE,F.SUSP,OUT,X-12,BLK

5211746-067

$13.39

31

GUARD,ADAPTER GUIDE

5222857

$12.94

32

RIVET(50)

7621452

$1.49

33

MOUNT,RH,F.SUSP.BLK.

1012270-067

$66.99

33

MOUNT,LH,F.SUSP.BLK.

1012269-067

$66.99

34

RIVET(50) Substituted by 7661130

7661643

Unavailable

35

PLUG, HOLE(10)

7080416

$5.65

36

PLUG-HOLE

7080398

$4.84

37

BUSHING,OPEN/CLOSE(10)

7080399

$2.39

38

BULKHEAD ASM,LIQ,BLK.

1012652-067

$436.51

39

BRKT,ROPE GUIDE,BLK.

5222687-067

$59.99

40

FOOTREST ASM,RH

1012545

Unavailable

41

MT,CONSOLE,RH

1011952-067

$339.99
