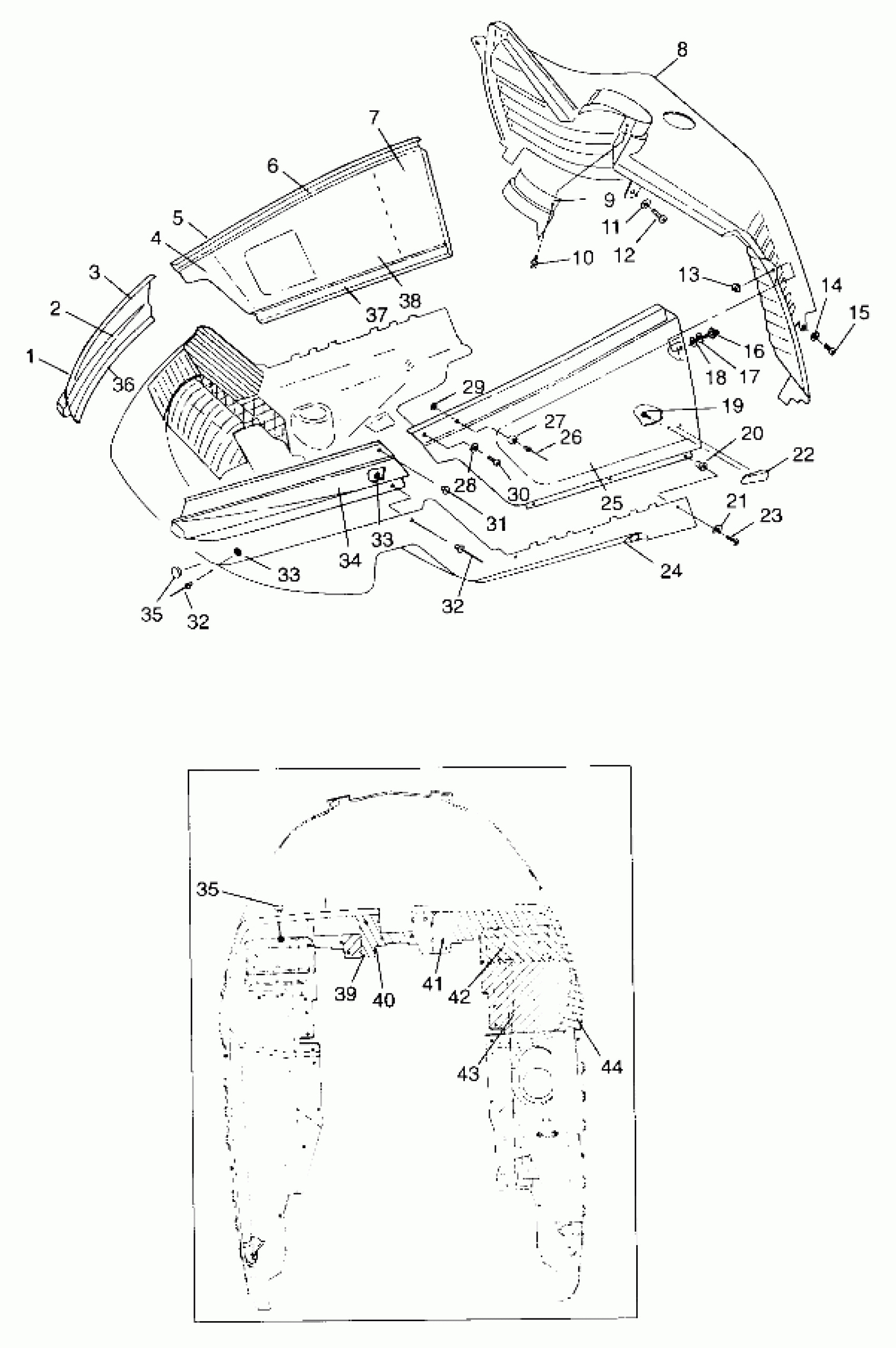

Polaris 500 CLASSIC - 099ED4BS NOSEPAN - 099ED4BS (4948304830a007) Diagram

#

Description
Price

1

BUMPER,RH,SIDE/FOIL,BLK.MT. (Incl. 2,3,36)

2610010-177

Unavailable

2

FOIL,SIDE BUMP,MIDDLE

5811086

Unavailable

3

FOIL-SIDE BUMPER-UPPER

5811153

Unavailable

4

FOIL,FR.SIDEPANEL

5811072

Unavailable

5

FOIL,TOP,OUT.SIDEPANEL

5811075

Unavailable

5

FOIL,TOP,INNER,SIDEPANEL

5811074

Unavailable

6

FOIL,UP.SIDEPANEL

5811073

Unavailable

7

PANEL,RH,SIDE,FOIL,BLK. (Incl. 4-6,37,38)

2610008-177

Unavailable

8

CONSOLE,BASIC

5431467

Unavailable

9

COVER,CONSOLE

5431535

$54.35

10

RIVET,PLASTI-LOC.(50)

7621509

$1.49

11

WASHER(10) Substituted by 7558301

7555776

Unavailable

12

SCREW(10)

7512252

Unavailable

13

NUT,RETAINER(10)

7542138

Unavailable

14

WASHER(10)

7555792

$4.79

15

SCREW(10)

7512069

Unavailable

16

RETAINER,HOODLATCH

5431502

$12.94

17

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

18

WASHER,RUBBER(10)

7555884

$5.70

19

SCREW(10)

7512068

$2.39

20

NUT-WELL(10)

7541923

$5.59

21

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

22

BUMPER,SIDE PANEL

5432456

Unavailable

23

SCREW,(10)

7517230

$1.49

24

NOSEPAN,EV,STD,W/BATT,BLK

5432385

Unavailable

25

PANEL,LH,SIDE,BLK.MET.

5431742-177

Unavailable

25

FOAM,LH,SIDEPANEL

5811076

Unavailable

26

RIVET(50)

7621315

$3.99

27

BUMPER,RUBBER STOP Substituted by 5411440

5410843

Unavailable

28

WASHER(10)

7558301

$1.49

29

RIVET BURR(50)

7555756

$2.99

30

SCREW(10)

7515148

$4.79

31

RIVET(50)

7621472

$1.49

32

RIVET, BLIND(50)

7621467

$1.49

32

RIVET, BLIND(50)

7621467

$1.49

33

BURR,RIVET(50)

7555904

$1.49

33

BURR,RIVET(50)

7555904

$1.49

34

BUMPERSIDE,LH,BLK.

5431492-177

Unavailable

35

PLUG,NOSEPAN HOLE

5410820

$15.99

35

PLUG,NOSEPAN HOLE

5410820

$15.99

36

FOIL,SIDE BUMP,LOWER

5811085

Unavailable

37

FOIL,LOW.SIDEPANEL

5811071

Unavailable

38

FOAM-FOIL,RH,SIDEPANEL

5811070

Unavailable

39

FOIL,LH,SHOCKTOWER,#12

5811188

Unavailable

40

FOIL-CENTER, #11

5811187

Unavailable

41

FOIL,RH,SHOCKTOWER,#13

5811192

Unavailable

42

FOIL,RH,SHOCKTOWER,TOP,#14

5811193

Unavailable

43

FOIL,RH,SHOCK TOWER,LOW.

5811194

Unavailable

44

FOIL,RH,PANSIDE,#16

5811195

Unavailable
