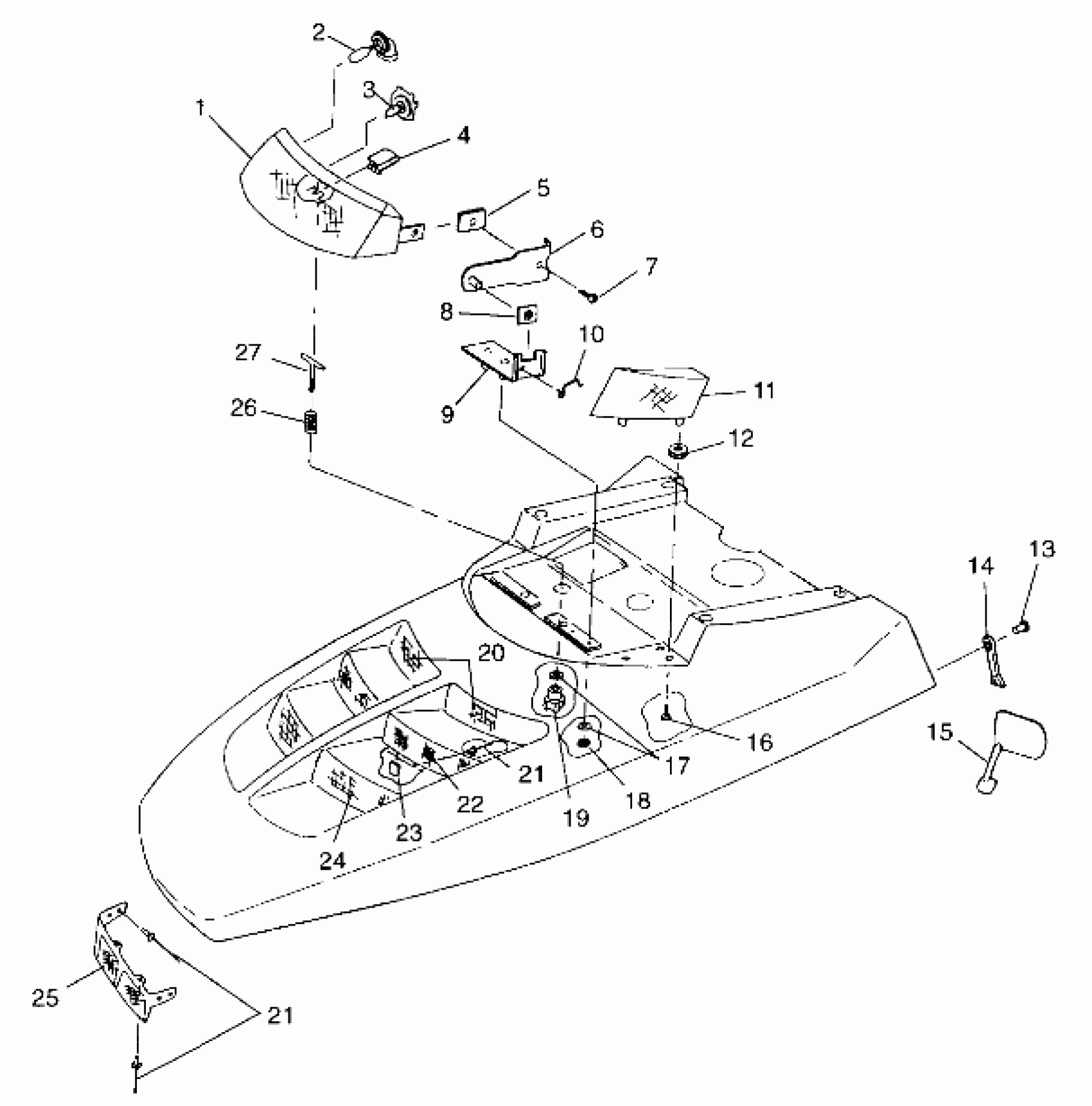

Polaris 500 CLASSIC - 099ED4BS HOOD - HEADLIGHT - 099ED4BS (4948304830a011) Diagram

#

Description
Price

1

H/L ASM,3-BULB (Incl. 2,3)

2431008

$111.99

2

BULB,HI-BEAM

4030048

$29.03

3

BULB,QUARTZ.H/L,INDY

2870448

$24.99

4

FASTENER-U TYPE CLIP

7670040

$3.99

5

NUT, SPEED(10)

7670057

$1.49

6

MOUNT,WELD,H/L

1011944-067

$24.27

7

BOLT(10)

7515107

Unavailable

8

PIVOT,HEADLIGHT

5431549

Unavailable

9

BRKT,LH,H/L MT.,BLK.

1011984-067

Unavailable

9

BRKT,RH,H/L MT.,BLK.

1011985-067

Unavailable

10

RETAINER,LH,WIRE

5224493

$2.22

10

RETAINER,RH,WIRE

5224501

Unavailable

11

LENS,LH,CLR.REFLECTOR

5431855

Unavailable

11

LENS,RH,CLR.REFLECTOR

5431856

Unavailable

12

BUSHING

5411110

Unavailable

13

RIVET,(50)

7621601

Unavailable

14

STRAP,HOODLATCH

5431501

Unavailable

15

NUT, WELL(10)

7541901

$6.39

15

SCREW(10)

7512040

Unavailable

15

MIRRORS,DELUXE,PR (Incl. Hardware)

2871531

$69.99

16

SCREW(10) Substituted by 7512048

7511953

Unavailable

17

WASHER(10)

7558301

$1.49

18

NUT-LOCK(10)

7542122

$1.49

19

KNOB,H/L.ADJUST

7080501

Unavailable

20

SCREEN,UP.HD,BLK.

5222908-067

Unavailable

21

RIVET(50)

7621339

$1.49

21

RIVET(50)

7621339

$1.49

22

SCREEN,CTR.HD,BLK.

5222907-067

Unavailable

23

SPEEDCLIP,'U'TYPE(10)

7670082

Unavailable

24

SCREEN,LOW.HD,BLK

5241350-067

$17.43

25

SCREEN,FR.,BLK.

1012031-067

Unavailable

26

SPRING,H/L.ADJ.

7041308

$3.19

27

BOLT,TEE ADJUSTER Substituted by 7517746

7515135

$24.99
