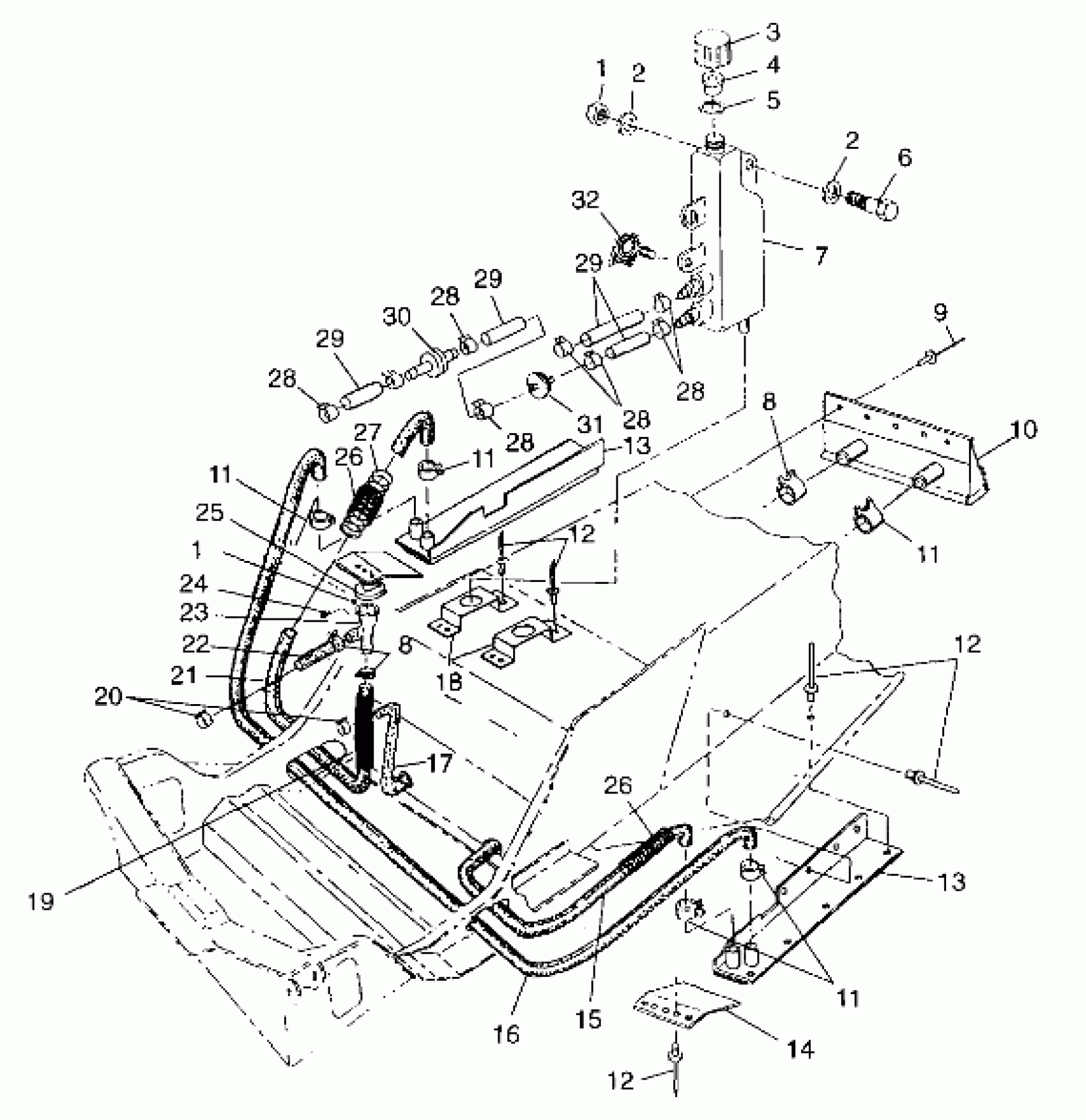

Polaris 500 CLASSIC - 099ED4BS COOLING SYSTEM - 099ED4BS (4948304830b006) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER,WROUGHT(10)

7558302

$1.59

2

WASHER,WROUGHT(10)

7558302

$1.59

3

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

4

PLUG, OVERFLOW,(10)

5431096

$2.02

5

GASKET-OVERFLOW CAP

5810279

$2.41

6

BOLT(10)

7512240

$3.99

7

BOTTLE,O'FLOW,W/FITTING

5431733

$36.41

8

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

8

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

9

RIVET-3/16-.090-.290

7661637

$1.49

10

EXCHANGER WELD,CTR.

2511225

$204.76

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

13

COOLING WELD,LH,SIDE,LT

2511250

Unavailable

13

COOLING WELD,RH,SIDE,LT

2511251

$205.99

13

COOLING WELD,LH,SIDE,LT

2511250

Unavailable

13

COOLING WELD,RH,SIDE,LT

2511251

$205.99

14

GUARD, COOL.EXT.

5222863

$32.99

15

HOSE,LH,SIDE/CTR.

5411114

$17.43

16

HOSE,CROSSOVER

5410557

Unavailable

17

HOSE,PUMP/CTR.EXT.

5410743

Unavailable

18

BRKT,OILTANK,COINED

5241334

$9.70

19

TUBING,CONVOL,8"X1"

5411396

$9.70

20

CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842

7080563

Unavailable

21

HOSE,RH,FILLER OUT,EXTRUSION

5411011

Unavailable

22

HOSE,ENG.OUT/FILLER

5411010

$24.27

23

FILLER,REMOTE COOLANT Substituted by 5433364

5431931

Unavailable

24

Screw

7517298

$4.79

25

CAP,PRESS.(19-21 LB.)

2511256

Unavailable

26

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

26

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

27

SPRING,HOSE RETAINER

7041079

$4.95

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

30

VALVE, CHECK

7052038

$10.51

31

FILTER,COOLANT,LGE.

2530024

Unavailable

32

CLIP, PLASTIC(10)

4020139

$4.79
