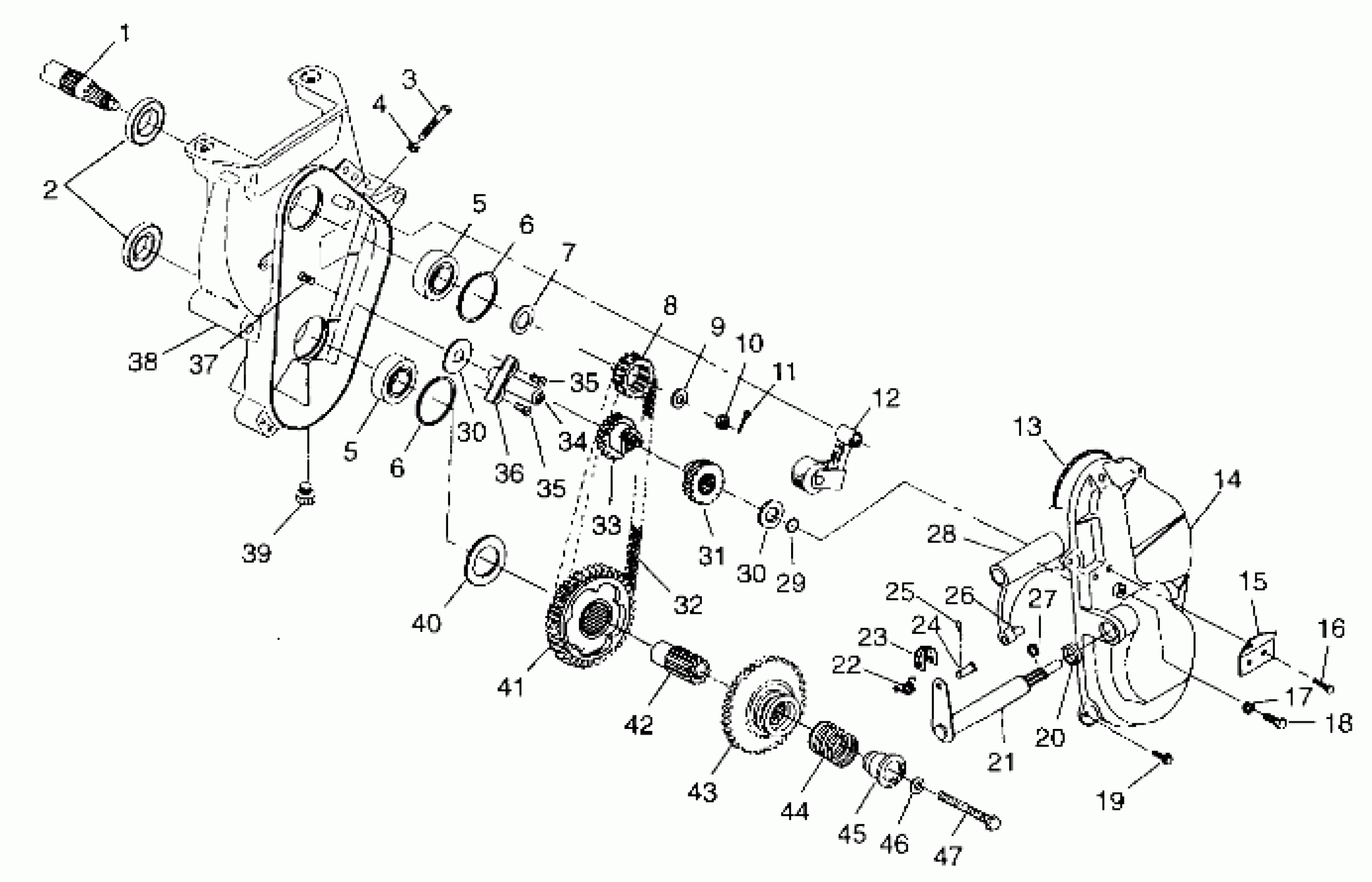

Polaris 500 CLASSIC - 099ED4BS CHAINCASE - 099ED4BS (4948304830b007) Diagram

#

Description
Price

1

Asm., Jackshaft (See Footnote) (See Drive Train Pg. B8, Ref. 16)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

BOLT(10)

7515474

$3.33

4

NUT(10)

7542404

$1.59

5

BEARING,BALL

3514309

$15.87

5

BEARING,BALL

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

WASHER(10)

7555917

$2.39

8

SPKT,22T,3/4W,15 SPL,HV,PM (3/4W)

3221098

$49.99

9

WASHER, SLOTTED(10)

7571620

$7.19

10

NUT

7542811

Unavailable

11

COTTER PIN(10)

7661401

$1.49

12

PIN,CHAIN TIGHTENER

7662210

Unavailable

12

TIGHTENER ASM,GEARCASE Substituted by 1332213

1332096

$159.99

12

BEARING

3553002

$11.99

12

BLOCK,TIGHTENER [No Longer Available]

5630122

Unavailable

12

WHEEL,C/C IDLER

5630123

Unavailable

12

WASHER THRUST(10)

7558702

$1.59

13

GASKET-CHAINCASE

5410277

$24.99

14

COVER,CHAINCASE,REV.

5131753

Unavailable

15

BRKT,CABLE MOUNT

5222502-067

Unavailable

16

SCREW,(10)

7517386

$1.49

17

WASHER WROUGHT(10)

7558403

$4.79

18

SCREW(10)

7512492

$1.49

19

SCREW(10)

7512242

$2.39

20

Seal, Oil

3610029

$8.89

21

SHAFT, SHIFT

1341093-067

$29.37

22

SPRING,REV.CABLE TENSION

7042044

Unavailable

23

CLEVIS

5222606

Unavailable

24

PIN, CLEVIS(10)

7661830

$3.99

25

PIN-COTTER(10)

7661205

$1.49

26

PIN, SHIFT FORK(10)

7661826

$5.65

27

RING, RETAINER(10)

7710415

$3.99

28

KIT,SHIFT FORK/SHAFT (Incl. 21,26) Fork, Shift

2200363

Unavailable

28

Fork, Shift

5130805

Unavailable

29

O RING

5410589

$4.99

30

WASHER,THRUST(10)

7555877

$3.99

30

WASHER,THRUST(10)

7555877

$3.99

31

GEAR,SPUR PINION

1341075

$149.99

32

CHAIN,HYVO 68 P,3/4W (3/4W)

3221112

$124.99

33

SPROCKET,PINION

1341241

Unavailable

34

SHAFT,PINION,W/WRENCH FLATS

5131770

Unavailable

35

SCREW(10)

7512019

$3.99

35

SCREW(10)

7512019

$3.99

36

BRKT,CHAIN RETENTION

5222298

Unavailable

37

BOLT(10)

7515477

$34.99

38

CHAINCASE-W/RATCHET MNT

5131568

Unavailable

39

PLUG(10)

7052115

$5.65

40

WASHER, REVERSE(10)

7555871

$5.59

41

SPKT.ASM,41T,REV,3/4W,PM (3/4W)

1341228

Unavailable

42

Coupler, Drive

5130720

Unavailable

43

GEAR ASM,REVERSE Substituted by 1341362

1341121

$559.99

44

SPRING, COMPRESSION Substituted by 7041887

7041309

$44.99

45

RETAINER,DRIVE COUPLER

5130727

Unavailable

46

LOCK WASHER(10)

7552901

$1.49

47

SCREW, NYLOK(10)

7515348

$4.79
