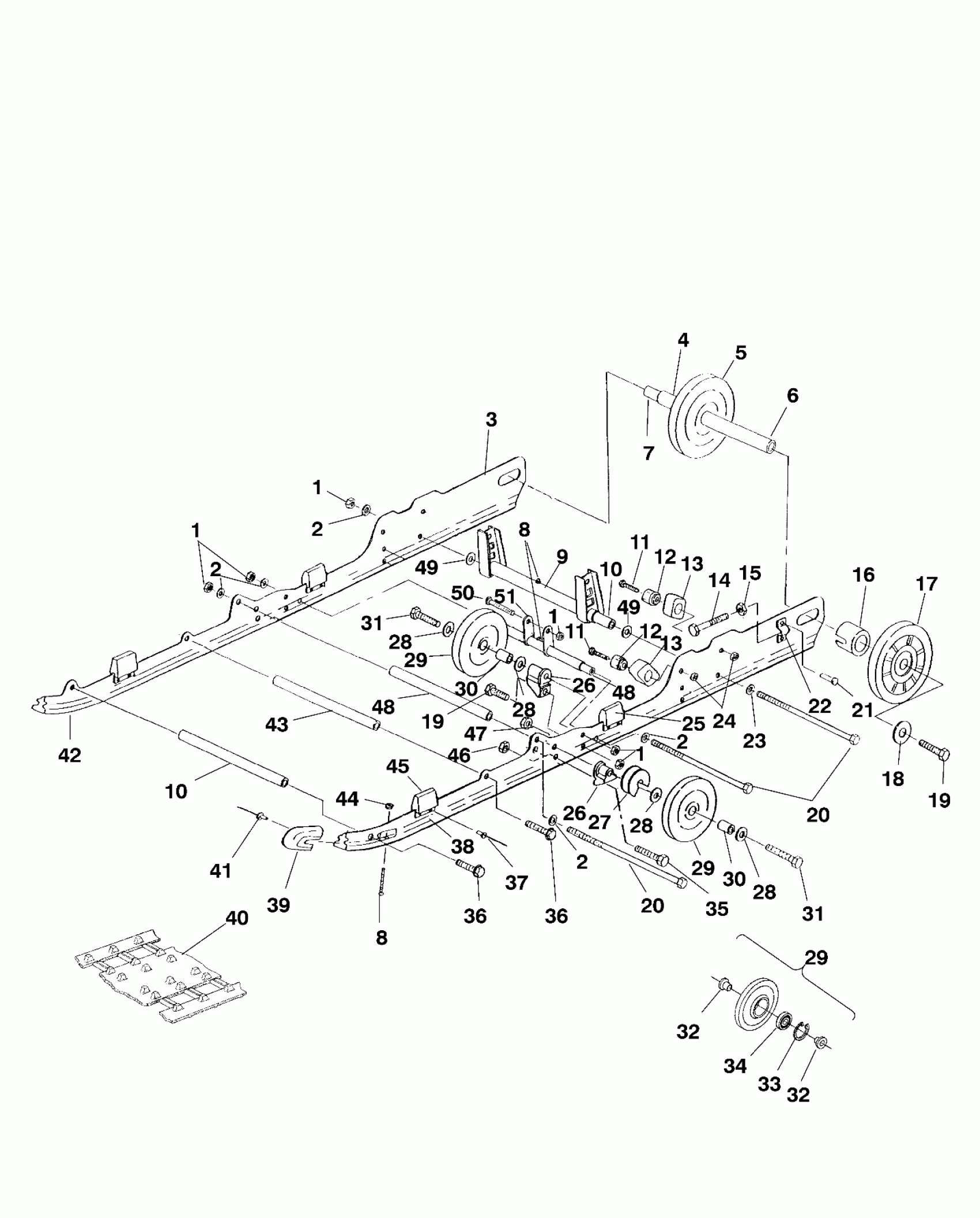

Polaris 500 CARB - 0962764 SUSPENSION - E962564 (4931873187C001) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

3

RAIL ASM,RH,133"

1540947

$339.99

3

RAIL ASM,LH,133"

1540946

$269.55

4

SPACER INNER IDLER

5010169

Unavailable

5

WHEEL, IDLER Substituted by 1594079-070

1594021

Unavailable

6

SPACER,IDLER,R.INNER

5333086

Unavailable

7

SHAFT,IDLER

5020722

Unavailable

8

BOLT(10)

7515175

$3.99

8

BOLT(10)

7515175

$3.99

9

ARM,R.PIVOT

1540981-067

Unavailable

10

SHAFT,PIVOT ARM

5020723

$29.99

10

SHAFT,PIVOT ARM

5020723

$29.99

11

BOLT(10)

7515537

$10.99

11

BOLT(10)

7515537

$10.99

12

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

12

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

13

BUMPER,F.PIVOT ARM

5410925

$12.94

13

BUMPER,F.PIVOT ARM

5410925

$12.94

14

BOLT, ADJUSTER(10)

7515455

$29.99

15

NUT(10)

7542440

Unavailable

16

SPACER-IDLER-OUTER

5332641

Unavailable

17

WHEEL,IDLER,OUTER,RED (Red)

1594039

Unavailable

18

WASHER(10) Substituted by 7556130

7571629

Unavailable

19

BOLT(10)

7515526

$1.19

19

BOLT(10)

7515526

$1.19

20

SCREW Substituted by 7517353

7515549

Unavailable

20

SCREW Substituted by 7517353

7515549

Unavailable

21

RIVET,(50)

7621501

$2.39

22

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

23

WASHER(10)

7552603

$1.49

24

NUT LOCK(10)

7542403

$3.99

25

BUMPER, RAIL

5810554

$7.27

26

SPACER

5630399

$11.99

26

SPACER

5630399

$11.99

27

ROLLER, SPRING

5431366

$10.51

28

WASHER, FLAT(10)

7555852

$2.39

28

WASHER, FLAT(10)

7555852

$2.39

28

WASHER, FLAT(10)

7555852

$2.39

28

WASHER, FLAT(10)

7555852

$2.39

29

WHEEL, IDLER

1543018

$56.65

29

WHEEL, IDLER

1543018

$56.65

29

WHEEL, IDLER

1543018

$56.65

30

SPACER, WHEEL

5333116

$7.99

30

SPACER, WHEEL

5333116

$7.99

31

BOLT(10)

7512538

$6.39

31

BOLT(10)

7512538

$6.39

32

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

32

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

33

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

34

BEARING (1 per Wheel)

3514303

$11.99

35

BOLT(10)

7512404

$3.99

36

BOLT

7515542

Unavailable

36

BOLT

7515542

Unavailable

37

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

38

REINF., BUMPER

5222629

$13.75

39

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

40

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

40

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

40

TRACK,133"X1.25",CAMO (RMK)

5411021

Unavailable

40

TRACK,133.5"X1"PADDLE Substituted by 5411060 (SKS)

5410983

Unavailable

41

RIVET(50)

7621435

$1.49

42

SLIDER,BLACK(2)

5521320

Unavailable

43

SHAFT,PIVOT ARM

5020724

$29.99

44

NUT-LOCK(10)

7542122

$1.49

45

BUMPER,SUSPENSION

5811097

Unavailable

46

NUT-LOCK(10)

7542439

$1.49

47

NUT, NYLOCK(10)

7542525

$4.79

48

SHAFT

5333404

$24.27

48

SHAFT

5333404

$24.27

49

WASHER(10)

7555893

$1.49

49

WASHER(10)

7555893

$1.49

50

BOLT(10)

7515472

$2.39

51

ARM,SHOCK PIVOT

1541001-067

$43.65
