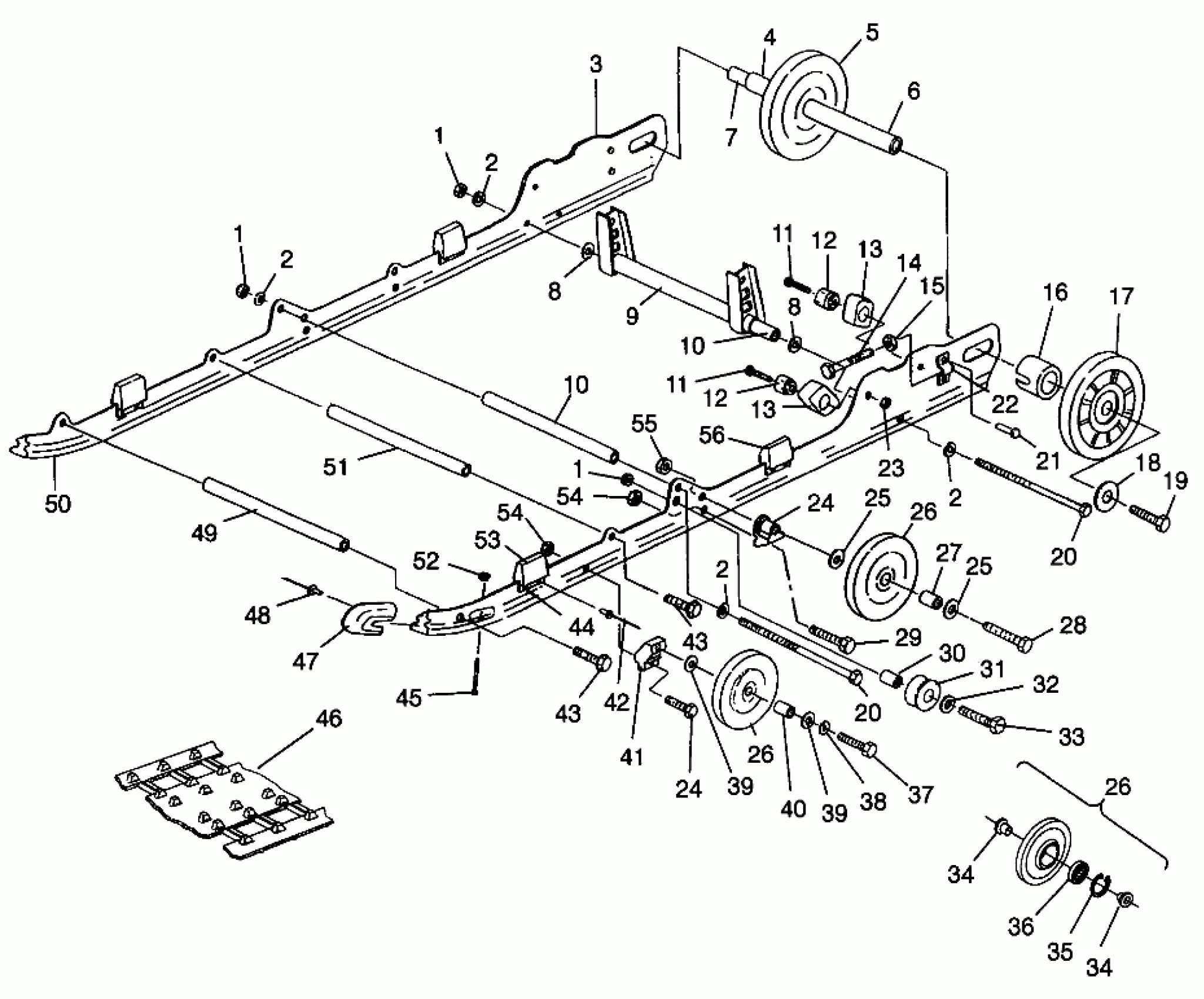

Polaris 500 CARB - 0962764 SUSPENSION 500 CARB 0962764 (4931873187B013) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

3

RAIL ASM,LH,(XTRA-10) Substituted by 1541146

1541016

$288.99

3

RAIL ASM,RH,(XTRA-10) Substituted by 1541147

1541017

Unavailable

4

SPACER INNER IDLER

5010169

Unavailable

5

WHEEL, IDLER Substituted by 1594079-070

1594021

Unavailable

6

SPACER,IDLER,R.INNER

5333086

Unavailable

7

SHAFT,IDLER

5020722

Unavailable

8

WASHER(10)

7555893

$1.49

8

WASHER(10)

7555893

$1.49

9

ARM,REAR PIVOT

1540931-067

Unavailable

10

SHAFT

5333404

$24.27

10

SHAFT

5333404

$24.27

11

BOLT(10)

7515537

$10.99

11

BOLT(10)

7515537

$10.99

12

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

12

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

13

BUMPER,F.PIVOT ARM

5410925

$12.94

13

BUMPER,F.PIVOT ARM

5410925

$12.94

14

BOLT, ADJUSTER(10)

7515455

$29.99

15

NUT(10)

7542440

Unavailable

16

SPACER-IDLER-OUTER

5332641

Unavailable

17

WHEEL,IDLER,OUTER,RED (Red)

1594039

Unavailable

18

WASHER(10) Substituted by 7556130

7571629

Unavailable

19

BOLT(10)

7515526

$1.19

20

SCREW Substituted by 7517353

7515549

Unavailable

20

SCREW Substituted by 7517353

7515549

Unavailable

21

RIVET,(50)

7621501

$2.39

22

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

23

NUT LOCK(10)

7542403

$3.99

24

SPACER

5630399

$11.99

24

SPACER

5630399

$11.99

25

WASHER, FLAT(10)

7555852

$2.39

25

WASHER, FLAT(10)

7555852

$2.39

26

WHEEL, IDLER

1543018

$56.65

26

WHEEL, IDLER

1543018

$56.65

26

WHEEL, IDLER

1543018

$56.65

27

SPACER, WHEEL

5333116

$7.99

28

BOLT(10)

7512538

$6.39

29

BOLT(10)

7512404

$3.99

30

Spacer

5332787

Unavailable

31

ROLLER,SPRING

5432170

Unavailable

32

WASHER(10)

7555743

Unavailable

33

BOLT Substituted by 7515491

7515433

$1.59

34

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

34

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

35

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

36

BEARING (1 per Wheel)

3514303

$11.99

37

BOLT(10)

7512659

$7.99

38

LOCK WASHER(10)

7553201

$3.99

39

WASHER(10)

7555804

$3.99

39

WASHER(10)

7555804

$3.99

40

SPACER

5332786

$7.99

41

BRACKET,BOGIE WHEEL

5130570

$48.56

42

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

43

BOLT

7515542

Unavailable

43

BOLT

7515542

Unavailable

44

REINF., BUMPER

5222629

$13.75

45

BOLT(10)

7515175

$3.99

46

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

46

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

46

TRACK,121",CAMO. Substituted by 5411057

5411005

Unavailable

47

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

48

RIVET(50)

7621435

$1.49

49

SHAFT,PIVOT ARM

5020723

$29.99

50

SLIDER,BLACK(2)

5521320

Unavailable

51

SHAFT,PIVOT ARM

5020724

$29.99

52

NUT-LOCK(10)

7542122

$1.49

53

BUMPER,SUSPENSION

5811097

Unavailable

54

NUT-LOCK(10)

7542439

$1.49

54

NUT-LOCK(10)

7542439

$1.49

55

NUT, NYLOCK(10)

7542525

$4.79

56

BUMPER, RAIL

5810554

$7.27
