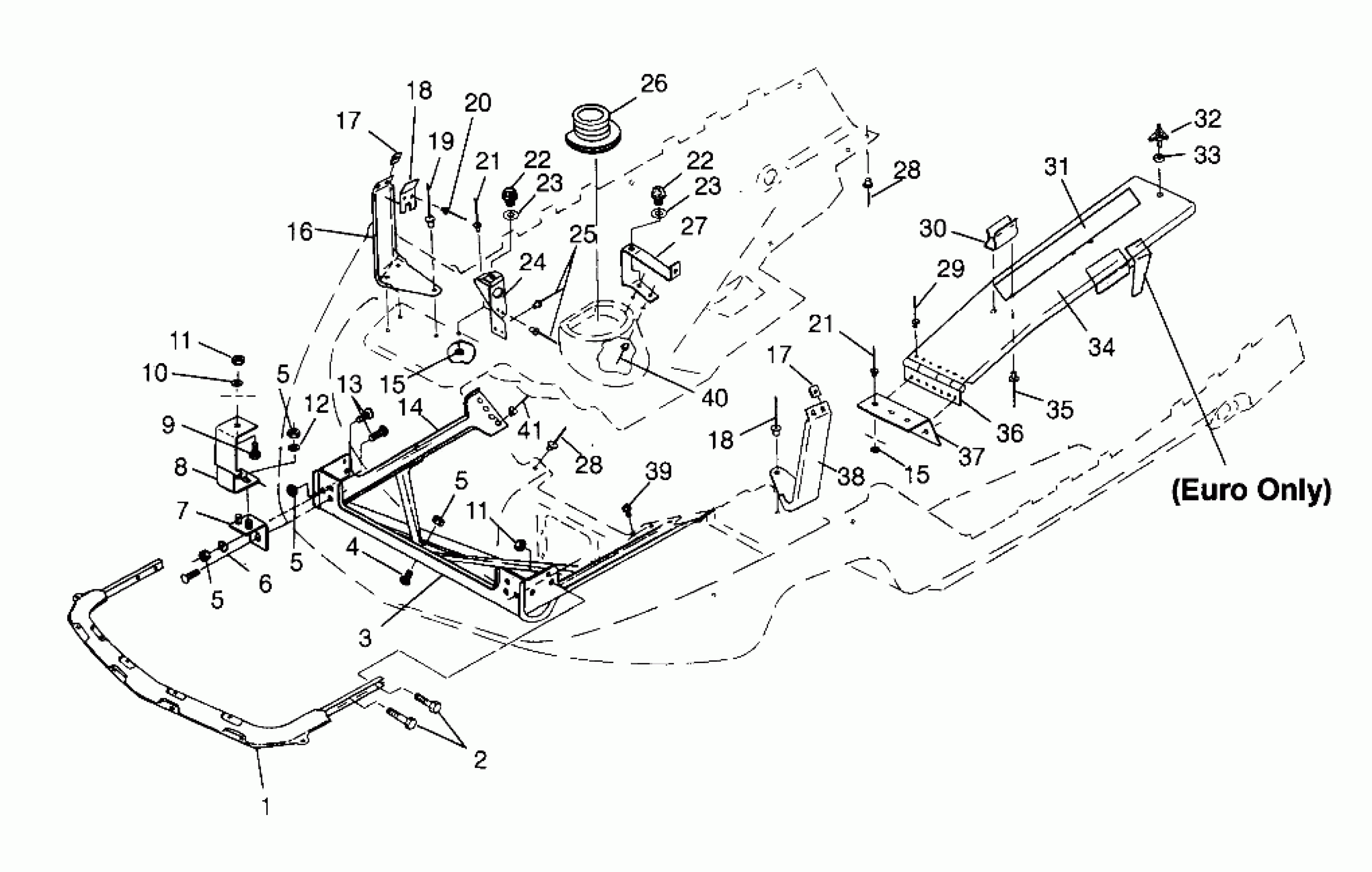

Polaris 500 CARB - 0962764 NOSEPAN 500 CARB 0962764, 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E9625 (4931873187A009) Diagram

#

Description
Price

1

BUMPER,FRONT

2670146-067

Unavailable

2

SCREW(10)

7512307

$3.99

3

BRACE,HD.SUPPORT,BLK.

5241003-067

$49.21

4

BOLT(10)

7512298

$3.99

5

NUT(10)

7542153

$1.59

5

NUT(10)

7542153

$1.59

5

NUT(10)

7542153

$1.59

5

NUT(10)

7542153

$1.59

6

WASHER(10)

7558301

$1.49

7

MOUNT,HINGE,BLK.

1011982-067

$45.99

8

HINGE ASM,HOOD,BLK.

2635013-067

Unavailable

9

SCREW(10)

7512310

$2.39

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

NUT FLEX-LOC(10)

7542303

$6.39

11

NUT FLEX-LOC(10)

7542303

$6.39

12

WASHER,WROUGHT(10)

7558302

$1.59

13

BOLT(10)

7512193

$2.39

14

SUPPORT,LH,BUMPER

1012327-067

$63.49

14

SUPPORT,RH,BUMPER

1012328-067

$133.29

15

BURR,RIVET(50)

7555904

$1.49

15

BURR,RIVET(50)

7555904

$1.49

16

BRKT,RH,SIDEPANEL

5240995

Unavailable

17

NUT, RETAINER(10)

7542146

Unavailable

17

NUT, RETAINER(10)

7542146

Unavailable

18

SHIELD,FASTENER

5240769

$0.90

18

SHIELD,FASTENER

5240769

$0.90

19

RIVET(50)

7621485

$1.49

20

RIVET(50)

7621318

$1.49

21

RIVET(50)

7621433

$1.49

21

RIVET(50)

7621433

$1.49

22

DAMPNER, VIB.

5410467

$8.79

22

DAMPNER, VIB.

5410467

$8.79

23

WASHER, THRUST(10)

7555788

$4.99

23

WASHER, THRUST(10)

7555788

$4.99

24

SUPPORT,MUFFLER,BLK.

1260724-067

$92.99

25

RIVET-3/16-.090-.290

7661637

$1.49

26

Boot, Exhaust

5410502

$24.27

27

BRKT,R.MUFFLER SUPPORT

5240715-067

Unavailable

28

RIVET, BLIND(50)

7621467

$1.49

28

RIVET, BLIND(50)

7621467

$1.49

29

RIVET, POP(50)

7621330

$1.49

30

CLIP,BELT RETAINER

5222769

$8.79

31

DECAL,ENG&CLUTCH(CPSC)

7075350

Unavailable

32

KNOB,CLUTCH GUARD(10) (Incl. 33)

7080523

$4.03

33

BUMPER,CLUTCHGUARD

5431928

$2.39

34

GUARD,CLUTCH

5240999

Unavailable

34

GUARD ASM,CLUTCH,EV,(EURO) (Euro)

1012430

Unavailable

35

RIVET(50)

7621429

$1.49

36

HINGE

5210728

Unavailable

37

MT,FR.CLUTCHGUARD

5222904

Unavailable

38

BRKT,LH,SIDEPANEL

5240994-067

Unavailable

39

CLIP, PLASTIC(10)

4020139

$4.79

40

RIVET(50)

7621472

$1.49

41

RIVET,3/16X.402(50)

7621432

$1.49
