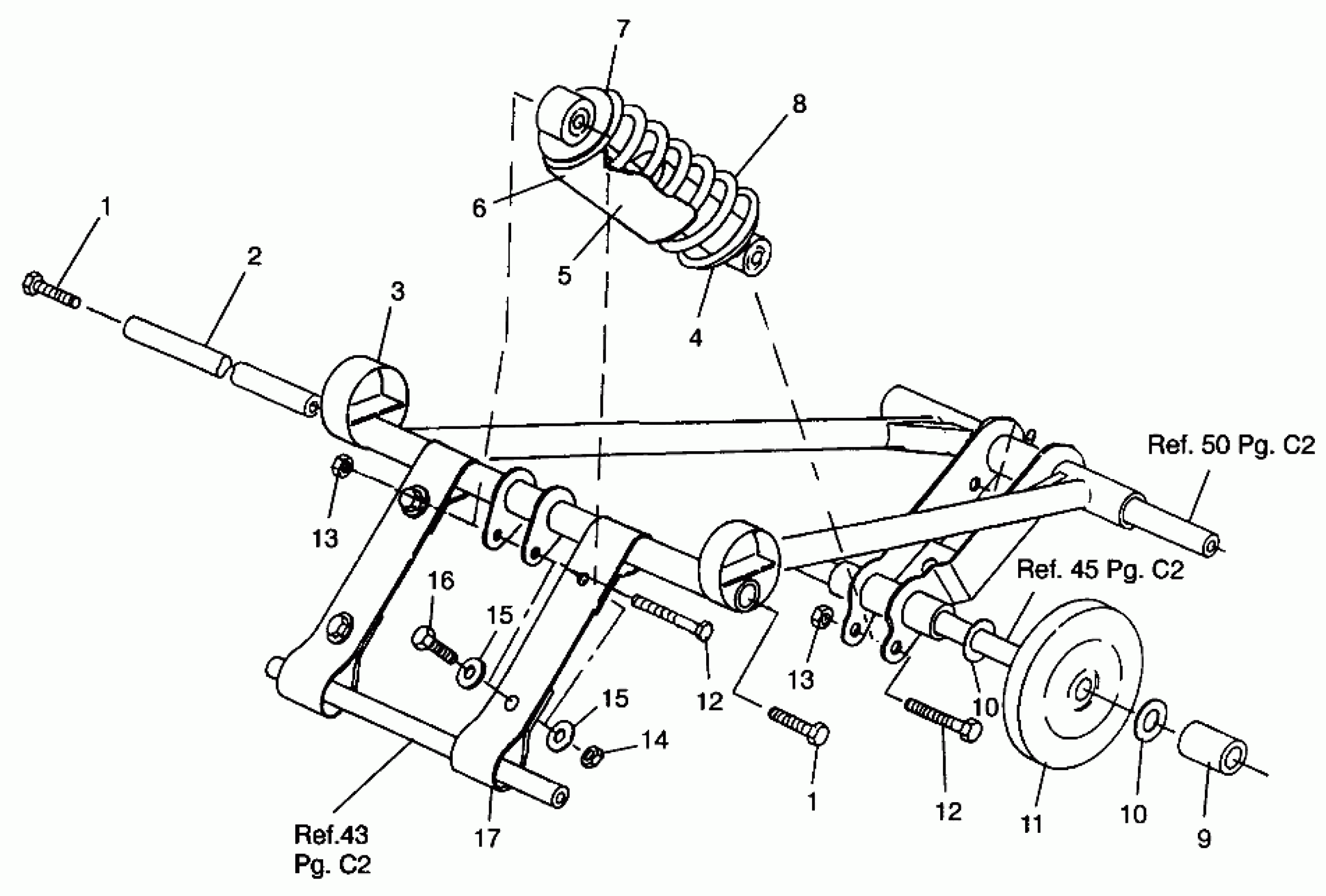

Polaris 500 CARB - 0962764 FRONT TORQUE ARM 500 CARB SKS 0962564 and EUROPEAN 500 CARB SKS E962564 (4931873187C004) Diagram

#

Description
Price

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

2

SHAFT,MOUNTING

5010149

Unavailable

3

ARM,F.TORQUE Substituted by 1541139-067

1540984-067

Unavailable

4

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

5

SHIELD-SPRING

5430671

$24.27

6

SHOCK,FR.TRACK Substituted by 7041743

7041430

Unavailable

7

RETAINER,SPRING,SLOTTED

5020618

$24.99

8

SPRING,BLACK,COMP.

7041253-067

$95.22

9

SPACER, OUTER

5332784

Unavailable

10

MACHINERY BUSHING(10)

7556301

$3.19

10

MACHINERY BUSHING(10)

7556301

$3.19

11

Asm., Bogie Wheel (See Pg., Ref.)

-------

Unavailable

12

BOLT(10)

7515415

$1.49

12

BOLT(10)

7515415

$1.49

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542321

$1.49

15

WASHER(10)

7555716

$1.59

15

WASHER(10)

7555716

$1.59

16

BOLT(10)

7515307

$3.99

17

STRAP,LIMITER,TRACK

5410992

Unavailable
