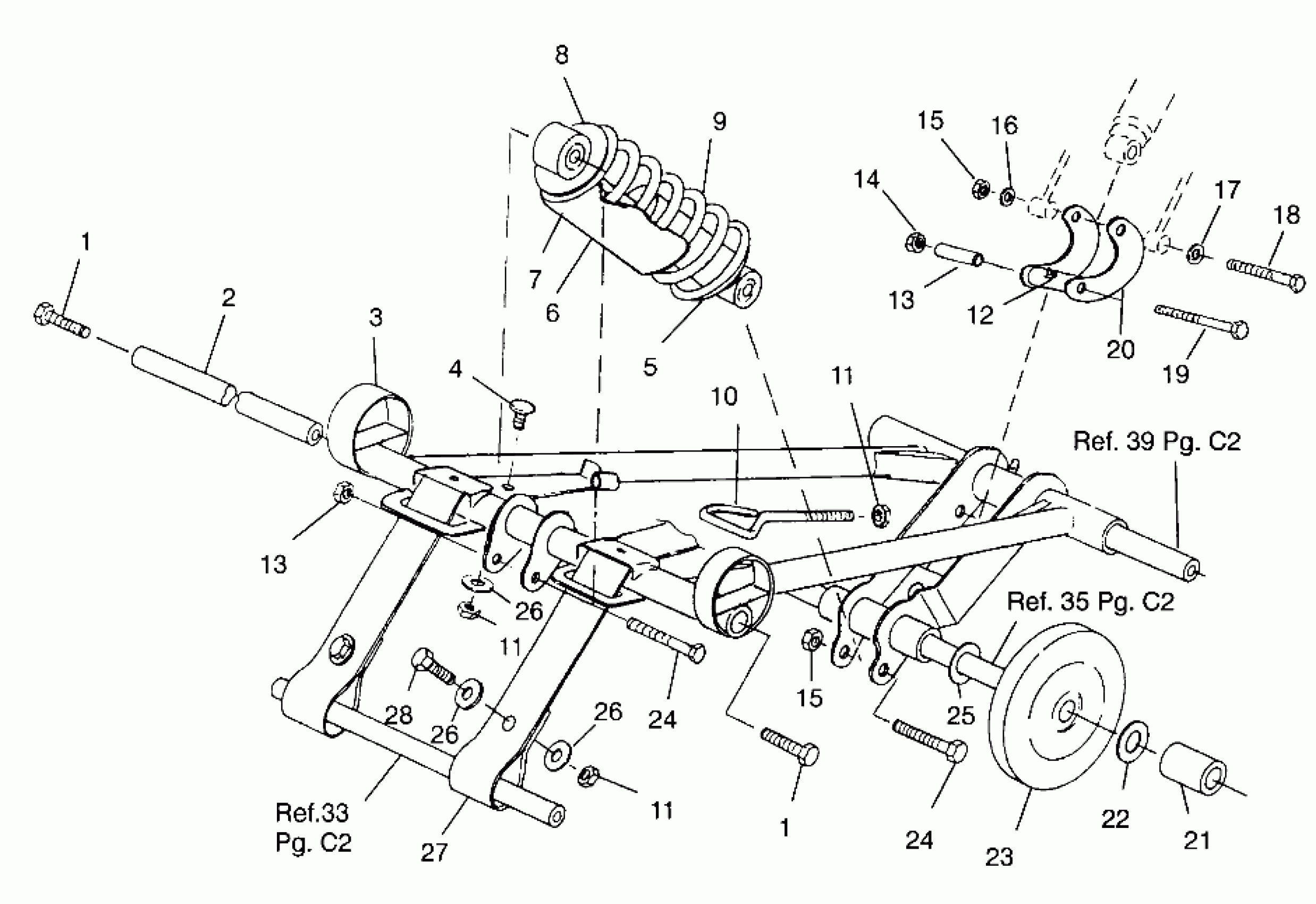

Polaris 500 CARB - 0962764 FRONT TORQUE ARM 500 CARB 0962764 and 500 CARB RMK 0962964 (4931873187C003) Diagram

#

Description
Price

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

2

SHAFT, MTG, REAR

5020570

Unavailable

3

ARM,FR.TORQUE Substituted by 1541140-067

1540973-067

Unavailable

4

BOLT(10)

7512377

$4.79

5

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

6

SHIELD-SPRING

5430671

$24.27

7

SHOCK,FR.TRACK Substituted by 7041743

7041430

Unavailable

8

RETAINER,SPRING,SLOTTED

5020618

$24.99

9

SPRING,BLACK,COMP.

7041253-067

$95.22

10

BOLT,EYE

7010050

Unavailable

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

ZERK,FITTING,THREADED(10)

7080433

$1.49

13

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

13

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

14

NUT LOCK(10)

7542411

$3.19

15

NUT LOCK(10)

7542403

$3.99

15

NUT LOCK(10)

7542403

$3.99

16

Spacer

5333028

$1.59

17

BUSHING,PIVOT TUBE

5020561

$1.59

18

BOLT(10)

7515438

$4.79

19

BOLT(10)

7515472

$2.39

20

ARM,SHOCK

1540942-067

Unavailable

21

SPACER, OUTER

5332784

Unavailable

22

MACHINERY BUSHING(10)

7556301

$3.19

23

Asm., Bogie Wheel (See Pg., Ref.)

-------

Unavailable

24

BOLT(10)

7515415

$1.49

24

BOLT(10)

7515415

$1.49

26

WASHER(10)

7555716

$1.59

26

WASHER(10)

7555716

$1.59

26

WASHER(10)

7555716

$1.59

27

STRAP,LIMITER,FRONT

5411045

Unavailable

28

BOLT(10)

7515307

$3.99
