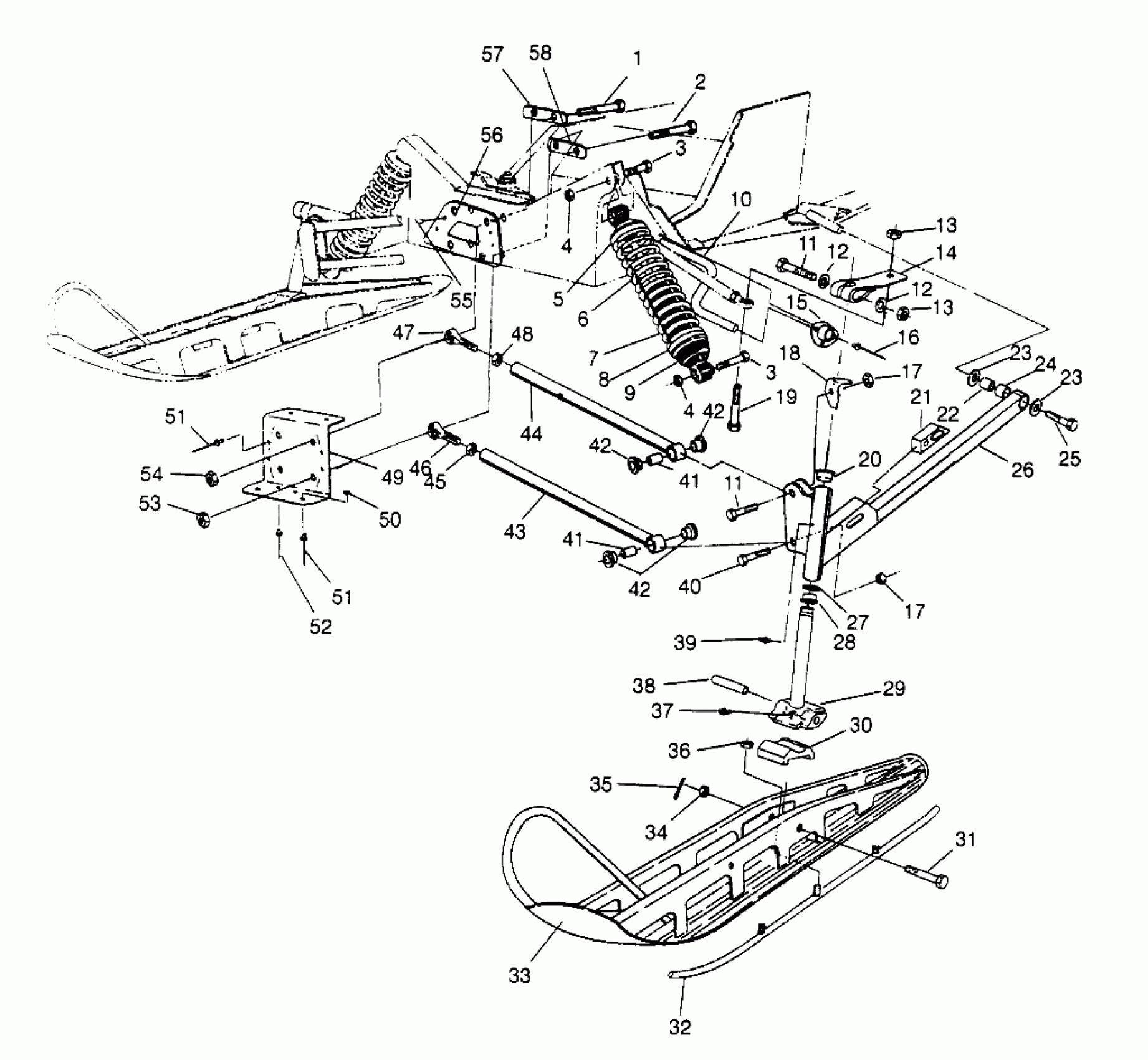

Polaris 500 CARB - 0962764 FRONT SUSPENSION and SKI 500 CARB 0962764 (4931873187A013) Diagram

#

Description
Price

1

BOLT(10)

7512582

$8.79

2

BOLT(10)

7512678

$19.99

3

BOLT(10) Substituted by 7515415

7515515

Unavailable

3

BOLT(10) Substituted by 7515415

7515515

Unavailable

4

NUT, NYLOC(10)

7542453

Unavailable

4

NUT, NYLOC(10)

7542453

Unavailable

5

RETAINER-TOP

5220225

$10.39

6

SPRING,COMP.,BLK.

7041261-067

$164.99

7

SLEEVE,SPRING PROTECTOR

5431032

$31.99

8

CAM,ADJUSTING SPRING

5630334

$32.37

9

SHOCK,IFS,GAS/CAM

7041388

Unavailable

10

BAR,SWAY,9/16-41

5224678-067

Unavailable

12

WASHER(10) Substituted by 7555832

7555851

Unavailable

12

WASHER(10) Substituted by 7555832

7555851

Unavailable

13

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

13

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

14

Arm, Steering

5220326-067

Unavailable

15

BUSHING-SWAYBAR

5410383

Unavailable

16

RIVET(50)

7621433

$1.49

17

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

17

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

18

STOP,RH,STRG,BLK.

5240398-067

Unavailable

18

STOP,LH,STRG,BLK.

5240397-067

Unavailable

19

BOLT(10) Substituted by 7515528

7515529

Unavailable

20

BUSHING-FLANGE

3573909

$2.39

21

SLIDE-SWAYBAR

5410384

Unavailable

22

TUBE,TRAILING ARM

5010187

Unavailable

23

WASHER(10)

7555721

$1.49

23

WASHER(10)

7555721

$1.49

24

PIVOT-TRAILING ARM

5410382

Unavailable

25

BOLT(10)

7512557

$7.60

26

ARM,TRLG,LH (Incl. 22, 24)

1822337

Unavailable

26

ARM,TRLG,RH (Incl. 22, 24)

1822338

Unavailable

27

WASHER SPECIAL(10)

7556509

$1.59

28

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

29

SPINDLE, BLK.

6230073-067

Unavailable

30

STOP, RUBBER

5521276

Unavailable

31

BOLT(10)

7515462

$8.79

32

SKAG,PR.,CARBIDE (Pair)

2870693

$69.99

33

SKI WELD, BLK

1820332-067

Unavailable

34

NUT, CASTLE(10) Substituted by 7542438

7542457

Unavailable

35

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

36

NUT-5/16-18 NYLOK-Y

7542324

$1.49

37

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

38

BUSHING,PIVOT,(10)

5010158

$19.99

39

ZERK,FITTING,THREADED(10)

7080433

$1.49

40

BOLT(10) Substituted by 7517583

7515491

Unavailable

41

BUSHING-RADIUS ROD,(10)

5010127

$7.99

41

BUSHING-RADIUS ROD,(10)

5010127

$7.99

42

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

42

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

42

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

43

ROD,RAD,LOWER

1822334-067

Unavailable

44

ROD,RAD,UPPER,BLK.

1822333-067

Unavailable

45

NUT-JAM(10)

7542711

$2.39

46

ROD END Substituted by 7061027

7060162

$48.56

47

ROD END

7060163

Unavailable

48

NUT JAM(10)

7542520

$2.39

49

BRKT,PANSUPPORT,BLK.

5222866-067

Unavailable

50

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

51

RIVET, BLIND(50)

7621467

$1.49

51

RIVET, BLIND(50)

7621467

$1.49

52

RIVET,3/16X.402(50)

7621432

$1.49

53

NUT FLEX,(10)

7542703

Unavailable

54

NUT, LOCK,(10)

7542503

$10.39

55

RIVET-3/16-.090-.290

7661637

$1.49

56

BRACE,BLKHD/STRG,BLK.

5211589-067

Unavailable

57

STRAP,SPACER TOP

5211344

$7.27

58

STRAP,SPACER BOTTOM

5211345

$12.99
