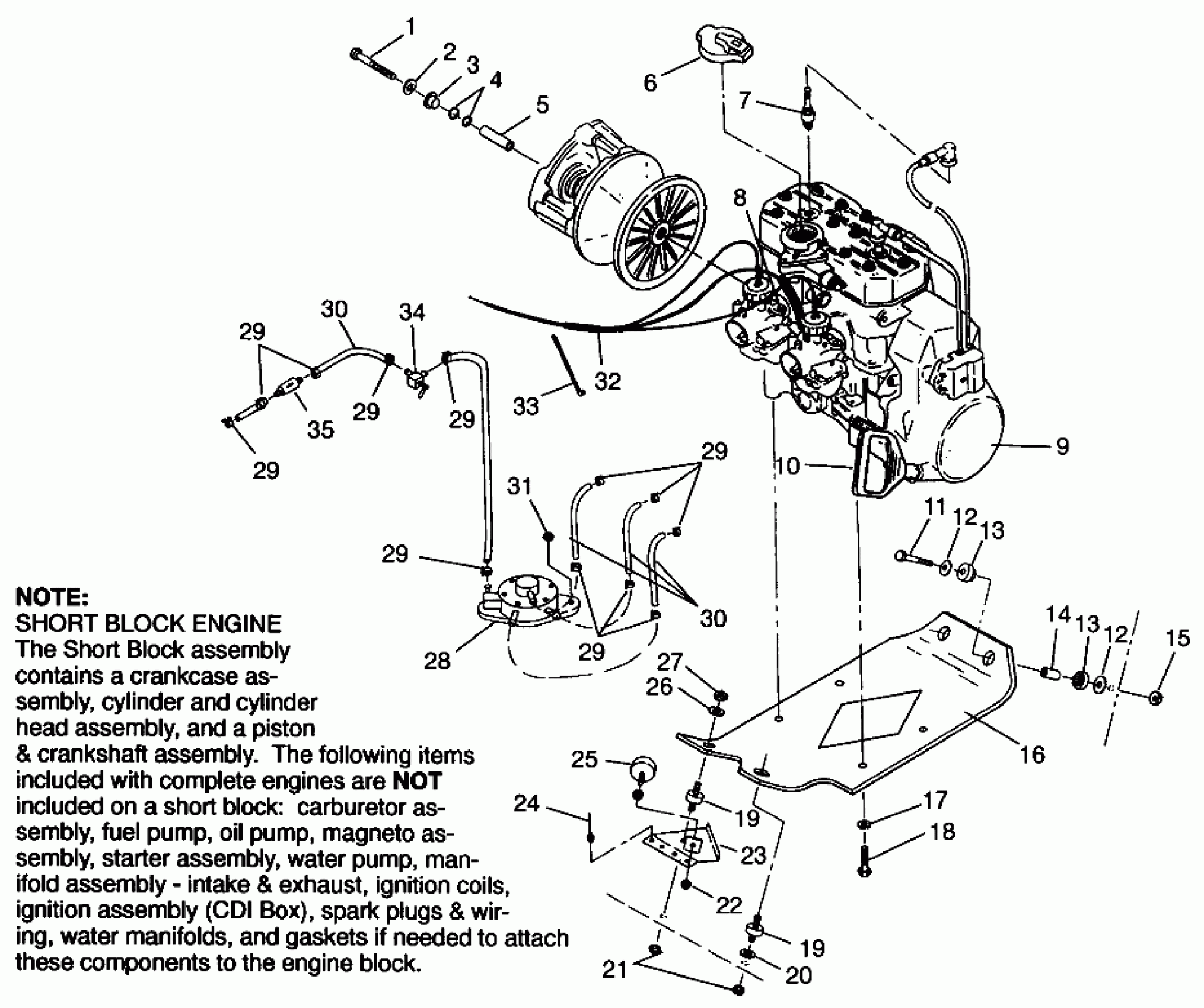

Polaris 500 CARB - 0962764 ENGINE MOUNTING 500 CARB 0962764, 500 CARB SKS 0962564, EUROPEAN 500 CARB (4931873187C008) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

CAP, PRESSURE

2511155

Unavailable

7

SPARKPLUG, RN3C(8)

3070166

$3.99

8

CONDUIT,CONVOL(26 CM) Substituted by 4010051-30

4010051-26

Unavailable

9

ENG.(S.B.)EC50PL-11/E11 [No Longer Available]

3085407

Unavailable

10

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

11

SCREW(10)

7512530

$5.59

12

WASHER(10)

7555740

$1.59

12

WASHER(10)

7555740

$1.59

13

MOUNT, ENGINE

5410390

Unavailable

13

MOUNT, ENGINE

5410390

Unavailable

14

SPACER, (MTR.MT.)

5332778

Unavailable

15

NUT,FLANGE(10)

7542522

$5.59

16

PLATE,MTR.MT. Substituted by 5131192

5131099

Unavailable

17

WASHER LOCK(10)

7553101

$3.99

18

BOLT(10)

7512539

$3.99

19

MOUNT

3110022

Unavailable

19

MOUNT

3110022

Unavailable

20

WASHER,FLAT(10)

7555915

$3.19

21

NUT LOCK(10)

7542411

$3.19

22

NUT, JAM(10)

7542432

$3.99

23

BRACKET,TORQUE LIMITER Substituted by 1012048-067

1011741-067

$38.71

24

RIVET-3/16-.090-.290

7661637

$1.49

25

STOP

3110023

Unavailable

26

WASHER(10) Substituted by 7555806

7555720

$0.79

27

NUT-LOCK(10)

7542439

$1.49

28

Fuel Pump (See Pg., Ref.)

-------

Unavailable

29

HOSE CLAMP, RED

7080003

$1.49

29

HOSE CLAMP, RED

7080003

$1.49

29

HOSE CLAMP, RED

7080003

$1.49

29

HOSE CLAMP, RED

7080003

$1.49

29

HOSE CLAMP, RED

7080003

$1.49

29

HOSE CLAMP, RED

7080003

$1.49

29

HOSE CLAMP, RED

7080003

$1.49

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

31

NUT-LOCK(10)

7542122

$1.49

32

CABLE,THROTTLE,W/OIL

7080520

Unavailable

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

VALVE,FUEL SHUT-OFF

7052039

Unavailable

35

FILTER FUEL,(10)

2530008

$4.84
