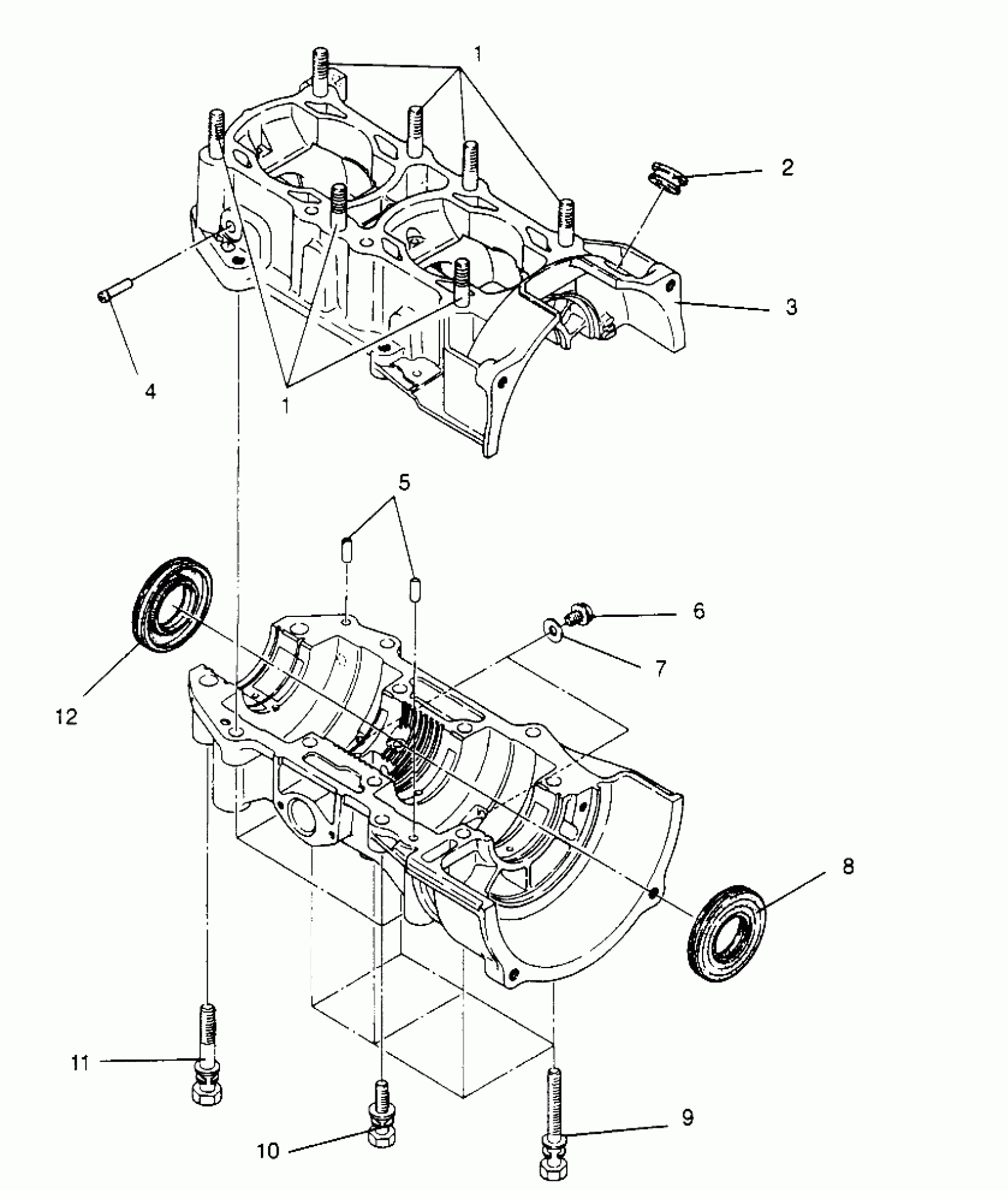

Polaris 500 CARB - 0962764 CRANKCASE 500 CARB 0962764, 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E9 (4931873187C011) Diagram

#

Description

Price

1

STUD Substituted by 3084119

3080745

Unavailable

1

STUD Substituted by 3084119

3080745

Unavailable

2

GROMMET

3082875

$7.99

3

CRANKCASE ASM. (Incl. 1, 4, 5, 9-11)

3085199

Unavailable

4

PIPE, PULSE (Pulse)

3083798

$9.52

5

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

6

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

7

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

8

SEAL, OIL(10) (MAG Side)

3083045

$36.41

9

BOLT W/WASHER

3080739

$6.39

10

BOLT&WASHER

3083078

Unavailable

11

BOLT&WASHER ASM.

3084220

$8.79

12

SEAL, OIL (PTO Side)

3085200

$36.41
